Leakproof system. Exhaust dome and baffle prevent oil spray. Compact design. The Standard Vacuum Pump is a compact, high-vacuum mechanical pump for all general laboratory applications.The unit consists of two series-connected eccentric pumps joined into a single unit. It attains an ultimate pressure of 0.3 microns of Hg in a leakproof system and has a […]
Ask us about this item

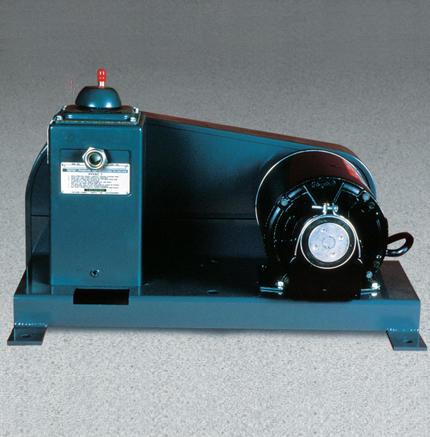

The Standard Vacuum Pump is a compact, high-vacuum mechanical pump for all general laboratory applications.The unit consists of two series-connected eccentric pumps joined into a single unit. It attains an ultimate pressure of 0.3 microns of Hg in a leakproof system and has a free air displacement of 3 gallons (10 liters) a minute at its normal speed of 350 rpm.The improved exhaust dome and baffle prevent oil spray.A 1/3 h.p. motor mounted on a common base with the pump drives it through a V-belt.
Specifications
| Pump. | Two series-connected eccentric pumps; base-mounted. |
| Delivery. | 0.3 microns of Hg; ultimate pressure in leakproof system; 3 gal/min. (10 liter/min) free air displacement at 350 rpm. |
| Motor. | 1/3 h.p.;V-belt drive; base-mounted. |
| Intake Port. | 13/32" (10 mm) o.d.; takes 1/4" (6 mm) bore tubing. |
| Overall Dimensions. | 18-1/2" w. x 10" d. x 10-3/4" h. (469 x 254 x 273 mm). |
| Weight. | Net 46 lbs. (21 kg). |
