Onset

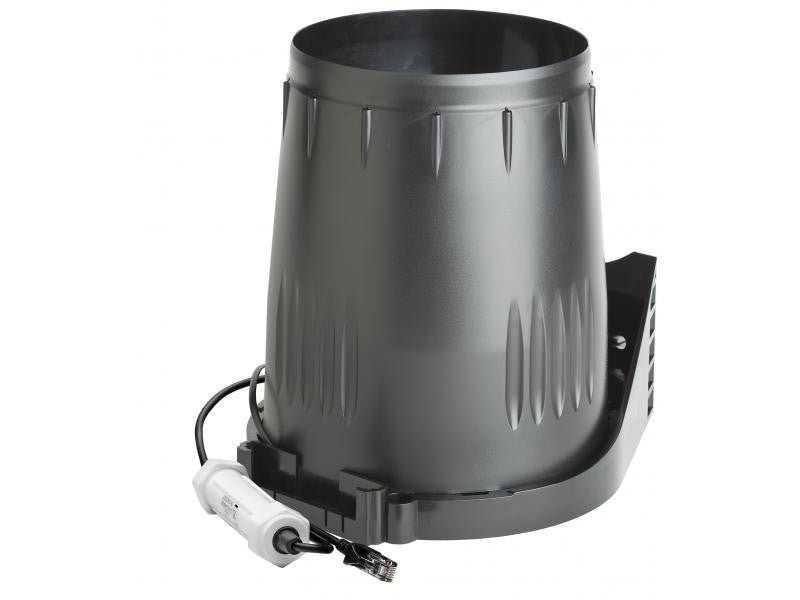

Davis Rain Gauge Smart Sensor
Price range: $351.00 through $356.00
Important Info
+Overview
Davis Rain Gauge Smart Sensors are compatible with all HOBO weather station loggers, HOBOware, and HOBOlink. They offer the same ease-of-use as existing Onset Smart Sensors, providing cost-effective HOBO weather stations for projects on a tight budget. The sensors feature a plug-in modular connector for easy installation, and all configuration parameters are stored in the sensor and automatically communicated to the logger, eliminating the need for programming or extensive setup.
- Designed to meet World Meteorological Organization (WMO) guidelines
In what environment does this sensor operate?
This sensor operates in an outdoor environment.
What measurements does this sensor support?
The S-RGC-M002 sensor supports the following measurement: Rainfall
Specifications
+| Measurement Range: | 0 to 10.2 cm (0 to 4 in.) per hour, maximum 4,000 tips per logging interval |
| Accuracy: | ±4.0%, ±1 rainfall count between 0.2 and 50.0 mm (0.01 and 2.0 in.) per hour; ±5.0%, ±1 rainfall count between 50.0 and 100.0 mm (2.0 and 4.0 in.) per hour |
| Resolution: | 0.01 in. (S-RGC-M002) or 0.2 mm (S-RGD-M002) |
| Calibration: | Requires annual calibration; can be field calibrated |
| Operating Temperature Range: | 0° to 50°C (32° to 122°F), survival -40° to 75°C (-40° to 167°F) |
| Environmental Rating: | Weatherproof |
| Housing: | UV-stabilized ABS plastic |
| Mechanism: | Tipping bucket with magnetic reed switch pivots on metal shaft |
| Dimensions: | 16.5 cm opening diameter (6.5 in.) x 24 cm (9.5 in.) high; 214 cm2 (33.2 in.2) collection area |
| Weight: | 1 kg (2 lb, 3 oz) |
| Bits per Sample: | 12 |
| Number of Data Channels*: | 1 |
| Measurement Averaging: | No |
| Cable Length Available: | 2 m (6.6 ft) |
| Length of Smart Sensor Network Cable*: | 0.5 m (1.6 ft) |
Attributes
+| Size | 0.01", 0.2mm |
|---|---|
| Environment | Outdoor |
| Measurement | Rainfall |
