Hoskin Scientific
SKU: D-E528-5500D-04-AC-1
4 Channel ODO Monitor – New, Good condition
Availability: Available Item
$3,950.00
Important Info

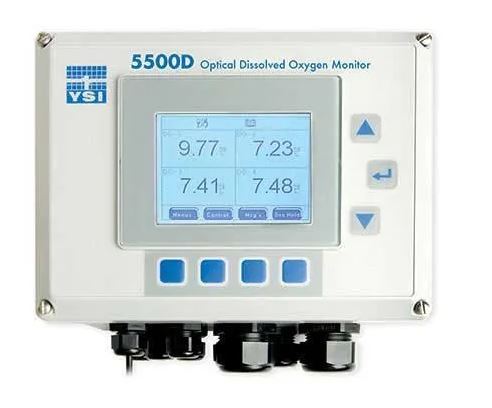

+Designed specifically for Aquaculture Systems, the YSI 5500D and AquaManager® Software integrate process control, alarming, and data management into one product. Simple enough to monitor one tank, powerful enough to manage a full scale farming operation from anywhere in the world. Simultaneously measure dissolved oxygen with optical technology in multiple tanks or ponds.
Included with Your Purchase:
- 5500D-04-DC (Four Channel Optical MultiDO monitor, 12 VDC)
- Compression Fitting Pack
- Manual Pack
- Cable Assembly Pack
- Ferrite Pack
- AC Line Cord (AC Units Only)
- 4m ODO Sensor
Please note :
The sensor cap may need to be replaced and can be purchased separately.
The unit does not have hardware for modem or ethernet.
User Manual , Safety and Installation Guide
Need more information? Contact us.
Specifications
+| Display | Back-lit graphic LCD (320 x 240) with timer, extended temperature range LCD |
| GLP Compliance | Yes |
| Logging Capabilities | Yes |
| Memory | 2000 data, 1250 relay/alarm, 1000 entries/change and 500 GLP records, Non-volatile |
| Monitoring | Yes |
| Operating Temperature | direct outside conditions with NEMA 4X enclosure, -15 to +70°C (5 to 158°F) |
| Parameters Measured | Dissolved Oxygen % Saturation, Dissolved Oxygen mg/L, Temperature (optional) |
| User Calibratable | Yes |
| User Replaceable | Yes |
| Waterproof | Yes |
| Height | 6.5 in, 16.5 cm |
| Length | 8.5 in, 21.6 cm |
| Depth | 4.75 in, 12.1 cm |
| Optical Sensor – Diameter | 0.95 in, 2.4 cm |
| Optical Sensor – Length | 7.5 in, 19 cm |
| Parameter (Units) | Range | Accuracy | Resolution |
| Dissolved Oxygen* (% saturation) |
0 to 500% | 0 to 200%: ±1% of reading or ±1% air sat, whichever is greater; 200 to 500%: ±10% of reading |
0.1% air saturation |
| Dissolved Oxygen* (mg/L) |
0 to 50 mg/L | 0 to 20 mg/L: ± 0.1 mg/L or ±1% of reading, whichever is greater; 20 to 50 mg/L: ±10% of reading |
0.01 mg/L or 0.1 mg/L (auto-scaling) |
| Temperature (°C, °F) |
0 to +45°C (32 to 113°F) | ±0.2°C | 0.1°C |
*Optical dissolved oxygen sensor.
