Dual Water Washout Test

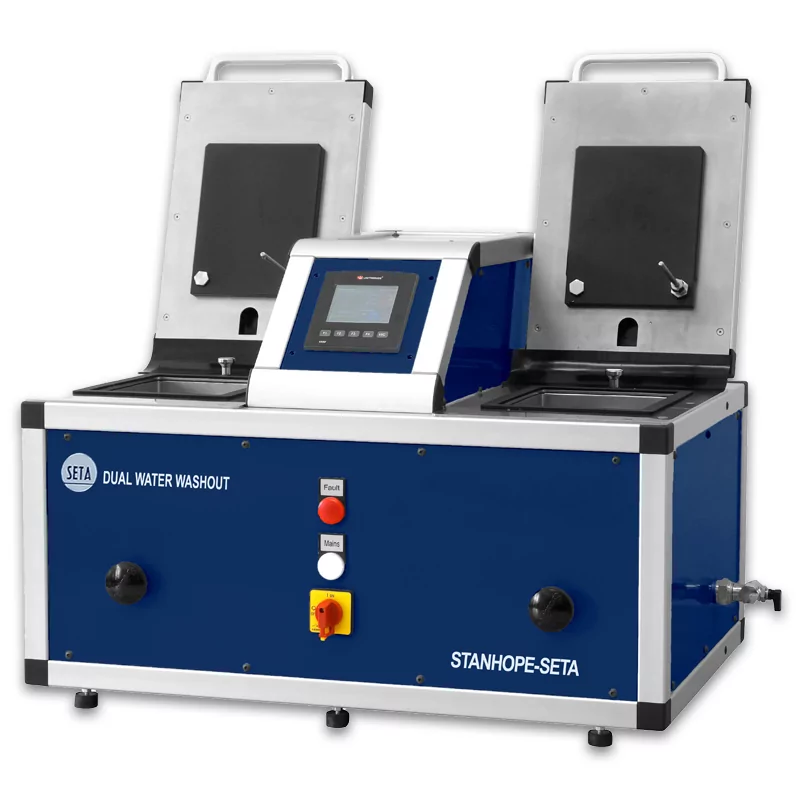

The Seta Dual Water Washout Tester estimates the resistance of lubricating greases to water washout from ball bearings according to ASTM D1264, DIN 51807-2 and ISO 11009.

SKU : G131-19650-0
Manufacturer: Stanhope - Seta

Description

The Seta tester estimates the resistance of lubricating greases to water washout from ball bearings according to ASTM D1264, DIN 51807-2 and ISO 11009. The methods evaluate the resistance of a lubricating grease to washout by water from a bearing, when tested at 38 and 79°C (100 and 175°F), under the prescribed laboratory conditions.

Features

Twin bearing and housings for duplicate or independent testing
Two separate water tanks and jets
All parameters are independently adjustable
Magnetic bearing drive for easy disassembly and removal
PLC for an automatic test procedure and display of test parameters
Spacious and easy to clean water tank
All water wet parts are resilient to salt water

Methods

ASTM D1264, DIN 51 807, FTM 791 3252, IP 215, ISO 11009

Specifications

Rotation Speed	600 ±30 rpm
Temperature Range	Up to 80°C Preset ranges of 38°C and 79°C
Voltage	220/240 V, 50 Hz
Weight	55 kg
Size (HxWxD)	520 x 730 x 500 mm
CCCN Code	Tariff 90318080
