Description

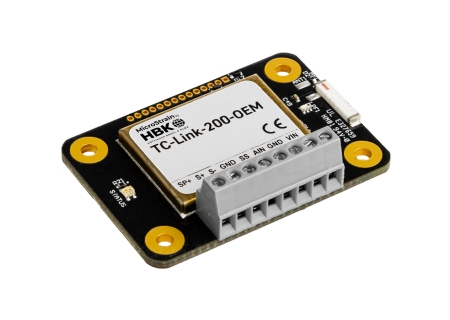

The TC-Link-200-OEM is a 1-channel wireless node used for precise measurement of temperature, mV, or resistance. No calibration is needed when used with thermocouples, RTD, or thermistors. The node will apply the appropriate linearization algorithms and CJC on-board based on the sensor type.

The TC-Link-200-OEM’s small form factor, wide input range, and selection of antenna options make this product easy to integrate into many applications.

Use Cases

Equipment Condition Monitoring

Specs

Sensor Input

• 1 input channel supporting thermocouples, resistance thermometers (RTDs), and thermistors
• Onboard temperature calculation using NIST 9th order polynomial
• Onboard cold-junction compensation
• Digital filtering for up to 120 dB rejection of 50 and 60 Hz noise
• High accuracy and low noise
• Open-circuit (burnout) detection
• Differential voltage range from +/- 19.5mV to +/- 1.25 V
• Compatible thermocouples types:
  • J, K, N, R, S, T, E, B
• Compatible RTDs:
  • PT-10, PT-50, PT-100, PT-200, PT-500, PT1000
• Compatible thermistors:
  • 44004, 44033, 44005, 44030, 44006, 44031, 44007, 44034, 44008, 44032, YSI-400

Operation

• Report sensor temperature, voltage, or resistance
• Up to 128 Hz sampling rate
• Continuous, periodic burst, or event-triggered operation
• LXRS protocol allows lossless data collection, scalable network size, and node synchronization of ±50 µs
• Datalogging up to 8 million data points
• Wireless range up to 1km
• Duty cycle sensor excitation for low power operation, well-suited for battery powered applications

Package

• Power with 3.3 to 30 V
• –40 to +105 °C operating temperature range
• Humiseal 1B31 Conformal Coating
• 4 mounting holes sized for 2-56 UNC
• Optional aluminum base
• Antenna options include on-board, or U.FL connector
