Description

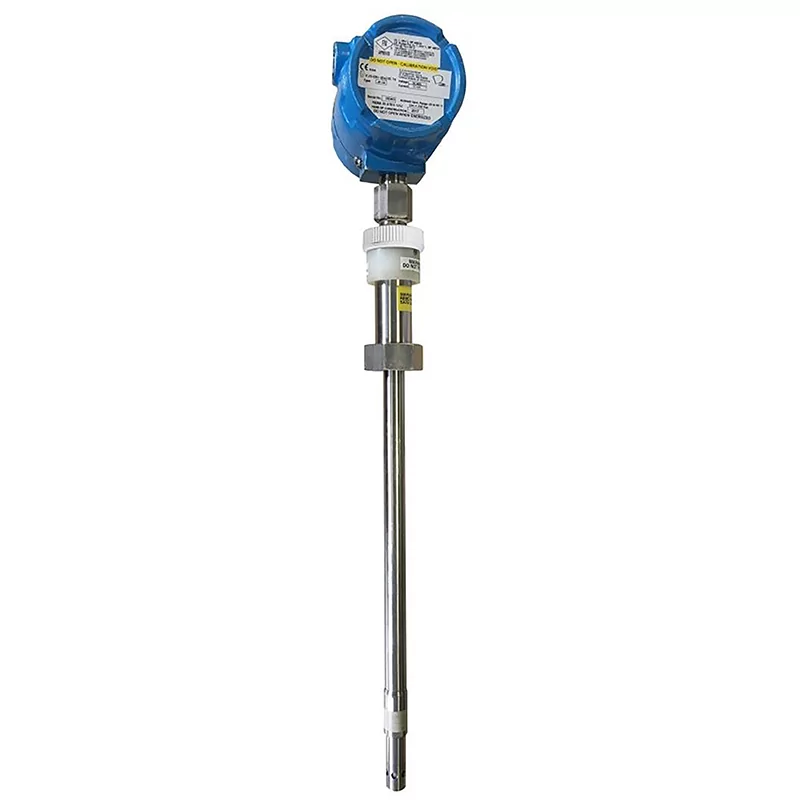

An inline sensor that provides real time measurement of conductivity in pipelines using high accuracy AC measurement technology.

IECEx marking: EX db ia IIC T4 Gb

The sensor can be connected to a refinery or pipeline DCS (Data Control System)/SCADA to provide an automatic and continuous record of product conductivity levels, eliminating the requirement for manual sampling and record keeping. When installed with an automatic dosing system the in-line sensor allows automated additive dosing to maintain the conductivity within specified limits.

The sensing technology was developed around two stainless steel coaxial electrodes and is suitable for long-term immersion in fuels.

This sensor is modelled specifically on the customer’s installation requirements and can be supplied with a variety of flange adaptors. Low pressure (up to 16 bar) conductivity sensors have an adjustable depth and if coupled to an isolation ball valve can be retracted without de-pressurization of the pipeline.

NOTE: Installation documents and schematics are available on request.

Features

• In-line Conductivity and temperature measurement conforming to ASTM D2624
• Conductivity range 0 to 2000 pS/m
• Accuracy +/-2% of reading
• Temperature range -20º to 60ºC +/-0.5°C (-4º to 140ºF)
• Standard 16 bar max line pressure (high pressure model available)
• 4-20mA output
• Stainless Steel construction
• Certified IECEx db ia IIC T4 Gb
• Data acquisition software included
