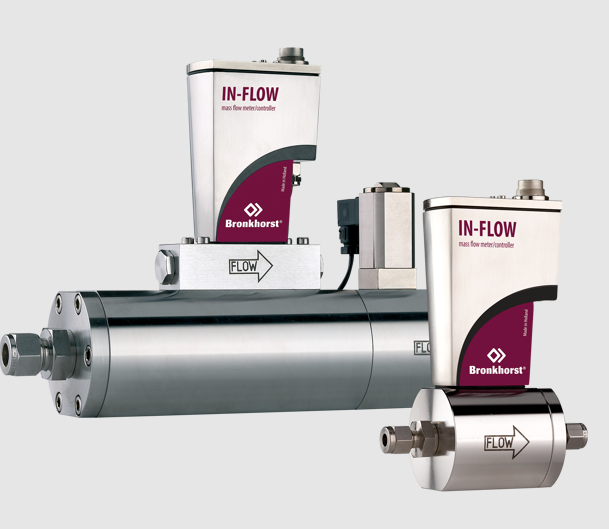

With their rugged design, the IN-FLOW series is well-suited for production sites in an industrial environment. The series contains ‘High-Flow’ models as well, going up to 11.000 m3n/h. The IN-FLOW series is the robust counterpart to the popular EL-FLOW series, but with an industrial-style design. If an IP40 version of this instrument suffices, consider the
EL-FLOW series instead. The series includes instruments for low pressure drop as well.

• Type Of Media – Gases
• Flow measuring principle – Thermal
• Series range – For 0.014 mln/min – 11000 m3n/h
• Accuracy – ±0.5% Rd plus ±0.1% FS
• Repeatability – <±0.2% Rd (or <±0.04% FS whichever is greater)
• Max. Pressure bar(g) – 700
• Operating Temperature – -10…+70°C; 0…+50°C for ATEX CAT3, KCs, Class1 Div 2
• Ingress Protection – IP65

IN-FLOW including Low-ΔP-FLOW models

These rugged IP65-styled flow instruments are well suited for industrial environments. The series includes ‘high-flow’ models suitable for gas flows up to 11.000 m3n/h and low pressure drop versions as well.

Where is the IN-FLOW used?

• Hydrogen storage in metal hydride using flow controllers
• Flow and pressure controllers for chemical reactor systems
