afp-300 automatically executes the Cold Filter Plugging Point (CFPP) test prescribed in ASTM D6371 and other test methods.
Contact us for details

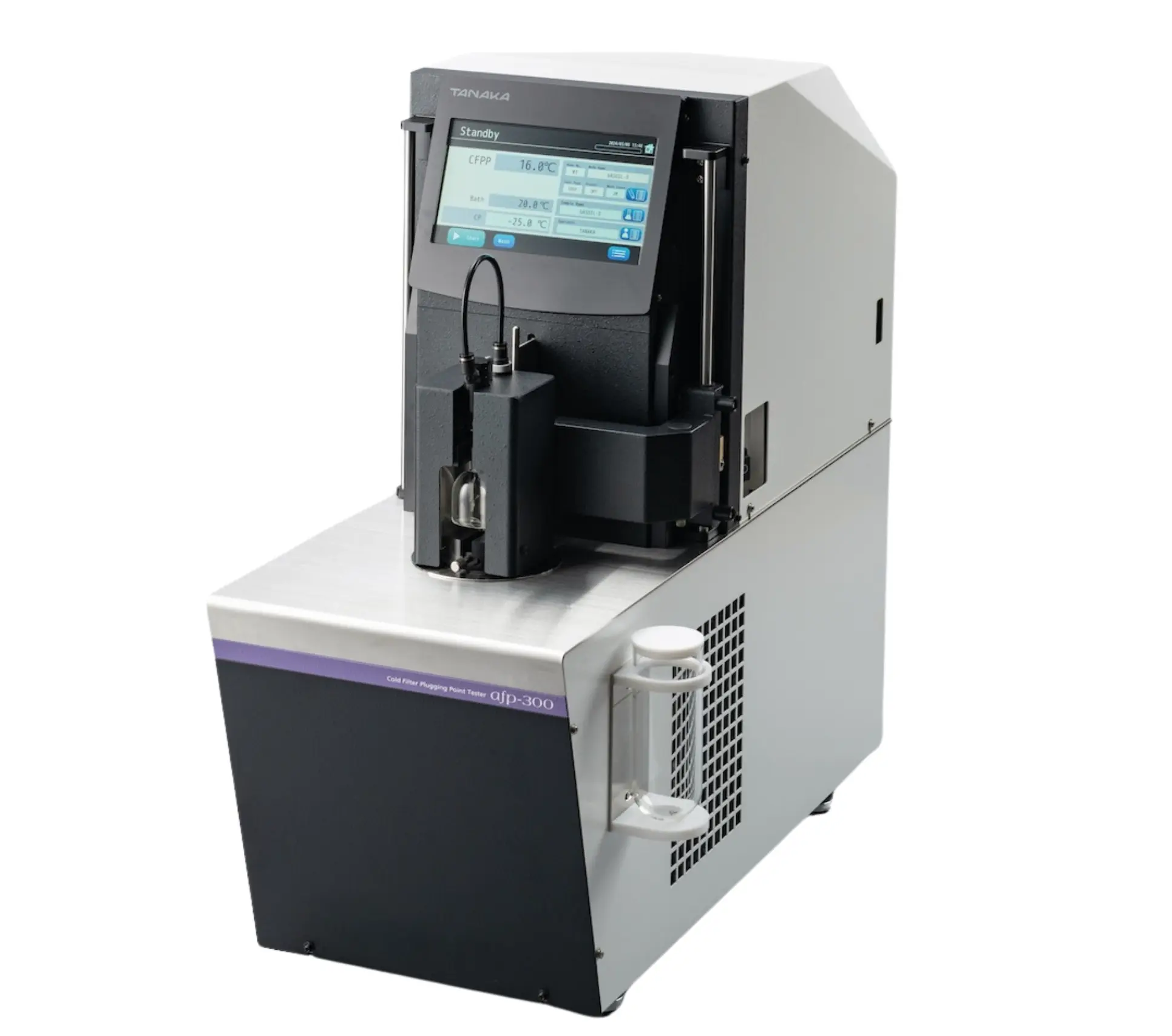

afp-300 automatically executes the Cold Filter Plugging Point (CFPP) test prescribed in ASTM D6371 and other test methods. The new user interface has greatly enhanced the usability. The built-in CFC-free Sterling cooler accommodates both linear and stepwise cooling.
Simple and Easy Operation

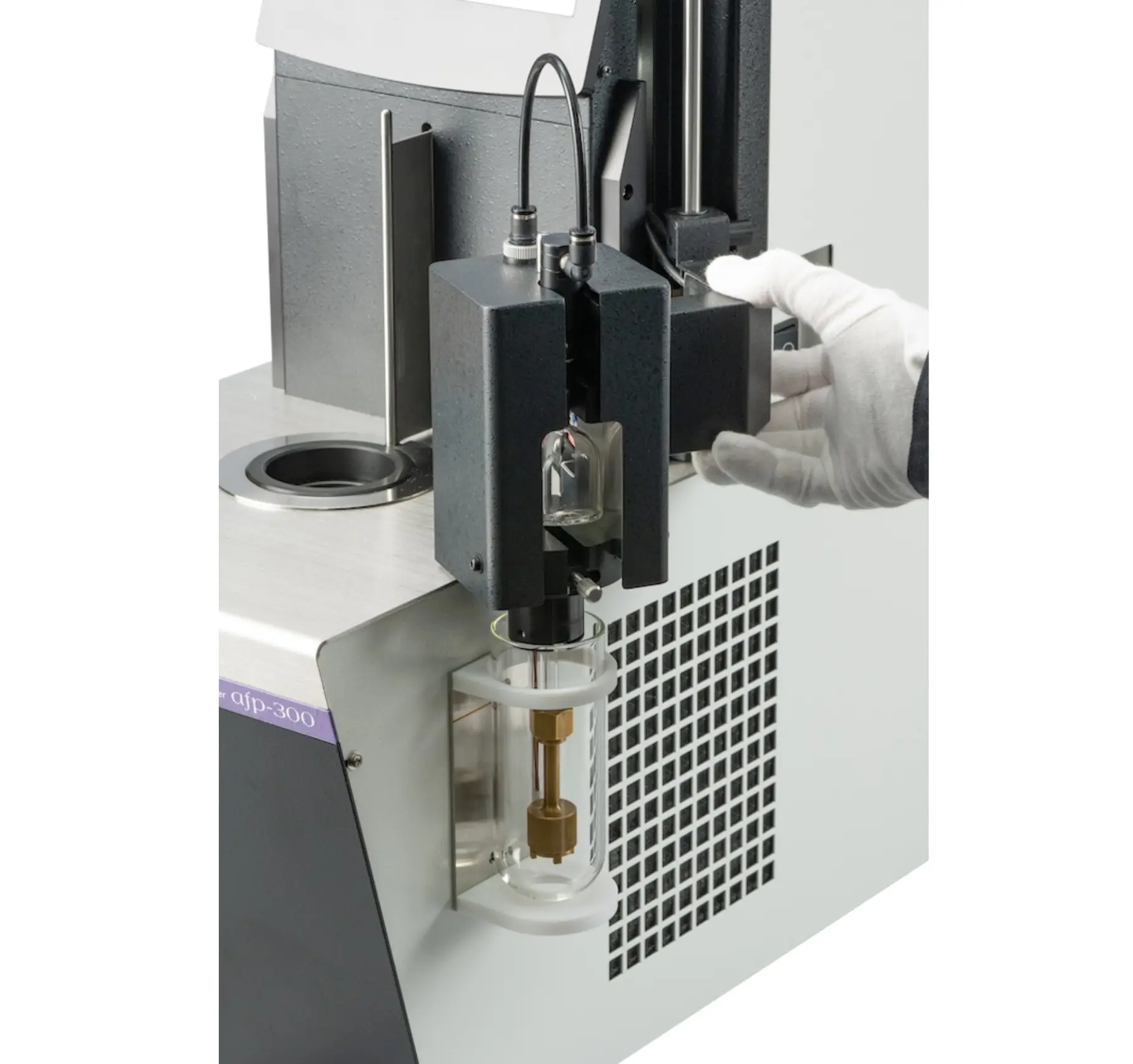

Enhanced simplicity by placing the temperature sensor, detectors and cables inside the arm. The arm unit also provides added protection to
glass parts.
Pre-wash Function
Pipette and filter unit can be easily washed by simply swinging the arm.
Cooling Function
Equipped with CFC-free cooler achieving low noise, low vibration and energy-saving.
Sample temperature of -95 ℃ can be reached without external chiller.
| Test Methods | ASTM D6371, JIS K 2288, EN 116, EN 16329, IP 309 |
|---|---|
| Measuring Range | -95 °C ～ +51 °C |
| Bath Temperature Range | -105 °C ～ +55 °C |
| Test Modes | Step cooling mode, Custom mode |
| Display | 7-inch touchscreen color LCD display |
| Temperature Sensor | Platinum Resistance Thermometer (100 Ω) |
| Liquid Level Detection | Infrared optical detection |
| Cooling/ Heating | Sterling cooler |
| Safety Functions | ① Interlock function when lifting the detector unit ② Built-in over-suction separator |
| External Output | USB x 2, Ethernet x 1 |
| Power Supply | AC 100 V to 240 V 50 / 60 Hz 500 VA |
| Size (W x D x H) | 260 mm × 620 mm × 590 mm |
| Weight | 44 kg |
| Minimum Footprint (W x D x H) | 460 mm × 720 mm × 660 mm |
