Automated Particle Counter - Density and Conductivity

Description

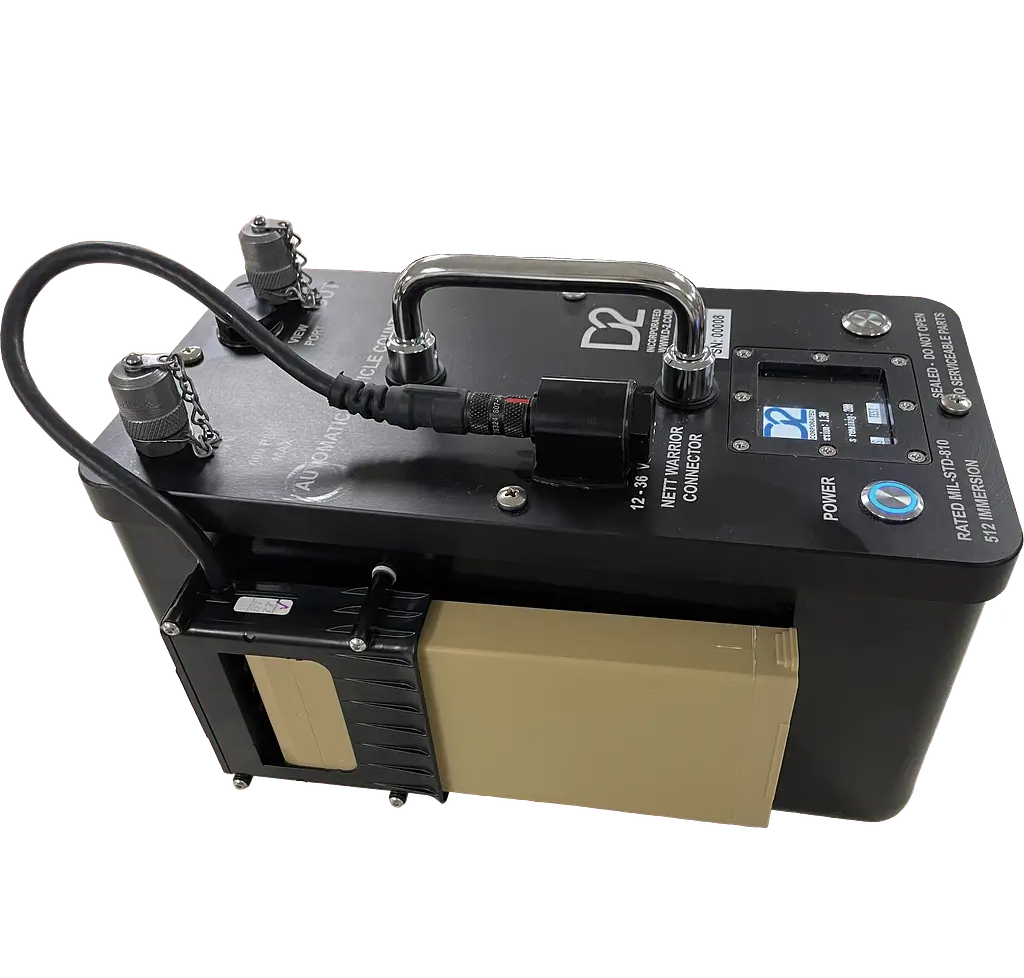

This is the hardened submersible / waterproof automated Portable Fuel Particle Counter that also has conductivity and density measurement built in. This Particle Counter is found in the PEAK Kit.

The Particle counter provides equivalent testing for: ASTM D7619 Particle Counting, ASTM D7777 / D4052 Density and ASTM D2624 Conductivity.

The particle counter has been built to use the standard military portable batter shown above or can be run from the battery pack found in the PEAK kit, or from wall power. Pictured below the Particle Counter can be ordered to come with the backpack version which is used for example on an aircraft carrier flight deck. The Particle counter has passed testing from -30°C to 50°C and proven it is submersible meaning it can handle operation in any conditions of weather.

Portable Fuel Particle Counter Features:

The most mobile particle counter in existence, with a backpack carrying option.
The rugged design can withstand extreme weather conditions and still operate effectively.
ASTM D7619 Equivalent Accuracy to determine fuel quality.
Military Hardened Design tested for field use.
Calibrated to ISO 11171 Standards.
Compliant with ATPD-2424A.
High Resolution Color Display.
With Built in Conductivity ASTM D2624 and Density ASTM D7777 / D4502

Specifications

Technical Specifications
Operation
Principle of operation	Laser obscuration
Test methods	ASTM 7619
Particle size range	4µm(c) to 30µm(c)
Calibration	In accordance with ISO 11171
Test duration	2.5 Minutes
Pressure (max)	400 PSI
Sample temperature range	-30 to 50 °C
Operating temperature range	-30 to 50 °C
Sampling method	Bottle sample or online connection
Display and control system	160 color dimmable display, red/green ISO grading, dual backlit push buttons
Measurement
Measuring channels	4 size channels displayed on instrument 4µm, 6µm, 14µm, 30µm
Coincidence error limit	60,000 particles/ml ≥4µm(c) with ≤ 5% co-incidence error (ISO 11171)
Sample viscosity (max)	64 mm²/s (cSt)
Sample volume	80 ml
Sample delivery	Integral Piston Pump downstream of the cell
Sample flow rate	30 ml/min test, 60 ml/min flush
Data Management
Results format	Cumulative, Particles/ml, ISO 4406 cleanliness codes/classes
Memory	200 Test points
External Data Output	memory output to PC or Printer
Power requirements
Voltage	12 – 36 Vdc
Battery	99Wh, 6.8 Ah Lithium ion (8 hours, 200 tests min.)
Physical
Size (HxWxD) / Weight (w/ Battery)	7″ X 7″ X 11.8″, 11.5 lbs.
Construction	Aluminum Case
Environmental	IP67, MIL-STD-810 Method 512-Immersion Procedure 1 (1 meter, 5% salt, 30 minutes)
Carry case	Padded 800d face Ultra-PE blended with high-tenacity polyester shoulder carry case
Hose connecters	1620 Minimess

Automated Particle Counter Brochure
