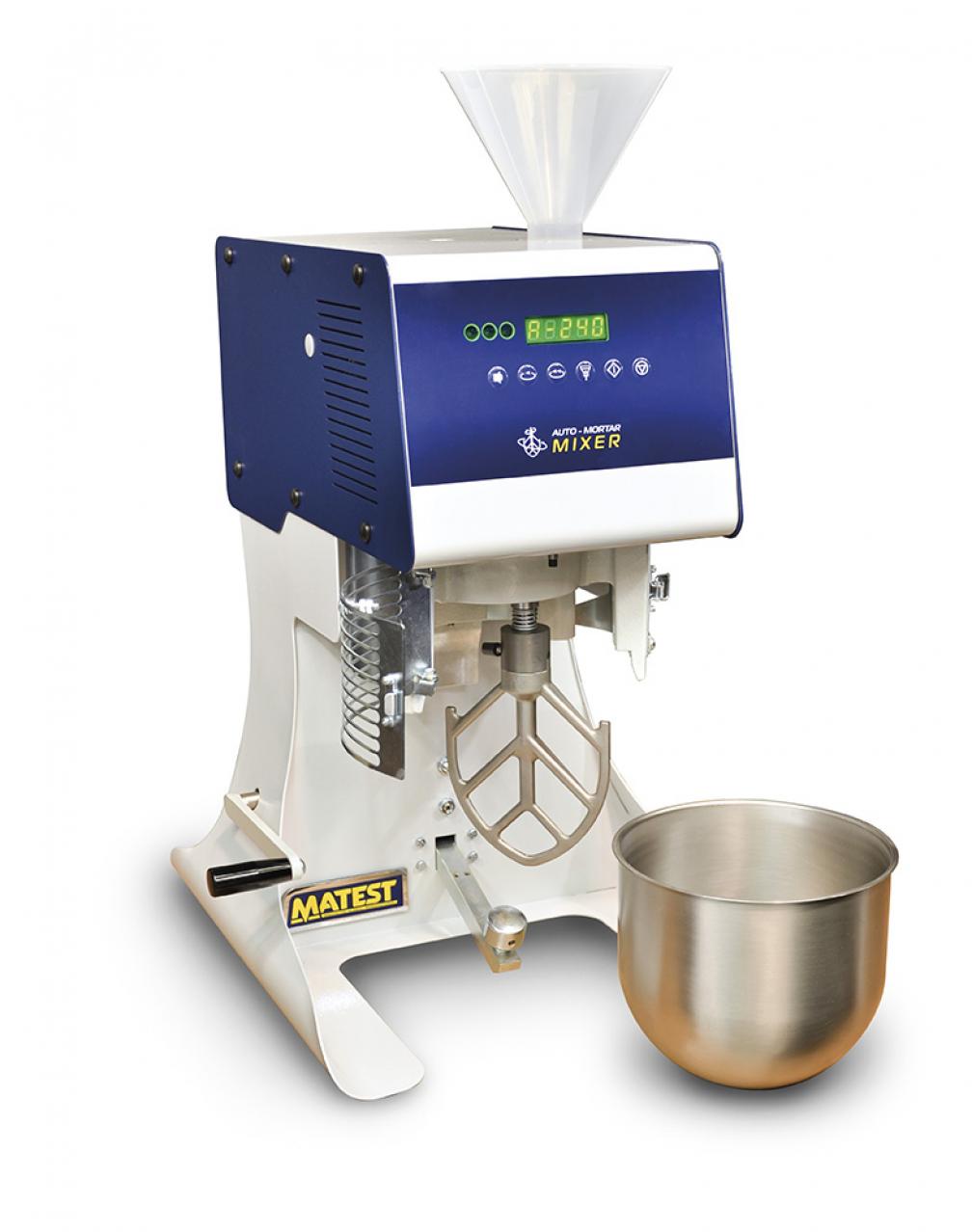

Automatic mortar mixer

This very robust mixer is expressly designed for the efficient mixing of cement pastes and mortar, with four automatic sequences of mixing cycle, in compliance with EN 196-1, EN 196-3, and EN 480-1 Specifications.

  • SKU : E827-E093N
  • Manufacturer: MATEST
Contact us for details
Description

This very robust mixer is expressly designed for the efficient mixing of cement pastes and mortar, with four automatic sequences of mixing cycle, in compliance with EN 196-1, EN 196-3, and EN 480-1 Specifications.
The bowl capacity is 4.7 litres

Two speeds can be selected:

  • 140 or 285 rpm for the revolving action
  • 62 or 125 rpm for the planetary action

By operating automatically on changes of speed, stops and mixing sequences, outlined by acoustic signal, the unit performs the mixing cycle. The unit is equipped with an automatic sand dispenser which fills the sand into the mixing bowl for a period of 30 seconds (EN 196-1 program). Complete with a safety door conforming to CE Safety Directive; if opened it automatically stops the machine.
Supplied complete with stainless steel bowl, but without beater which has to be ordered separately (see mod. E095-03 or E095-05).

Power supply: 230 V 1ph 50 Hz
Dimensions: 450x480x760 mm
Weight: 55 Kg approx.



  • EN 196-1
  • EN 196-3
  • EN 413-2
  • EN 459-2
  • EN 480-1
  • DIN 1164-5
  • ASTM C305
  • AASHTO T162
  • ASTM C359
  • ASTM C451
