Description

HEAT OF HYDRATION OF CEMENT

Used to determine the heat of hydration of low-heat Portland and hydraulic cement.

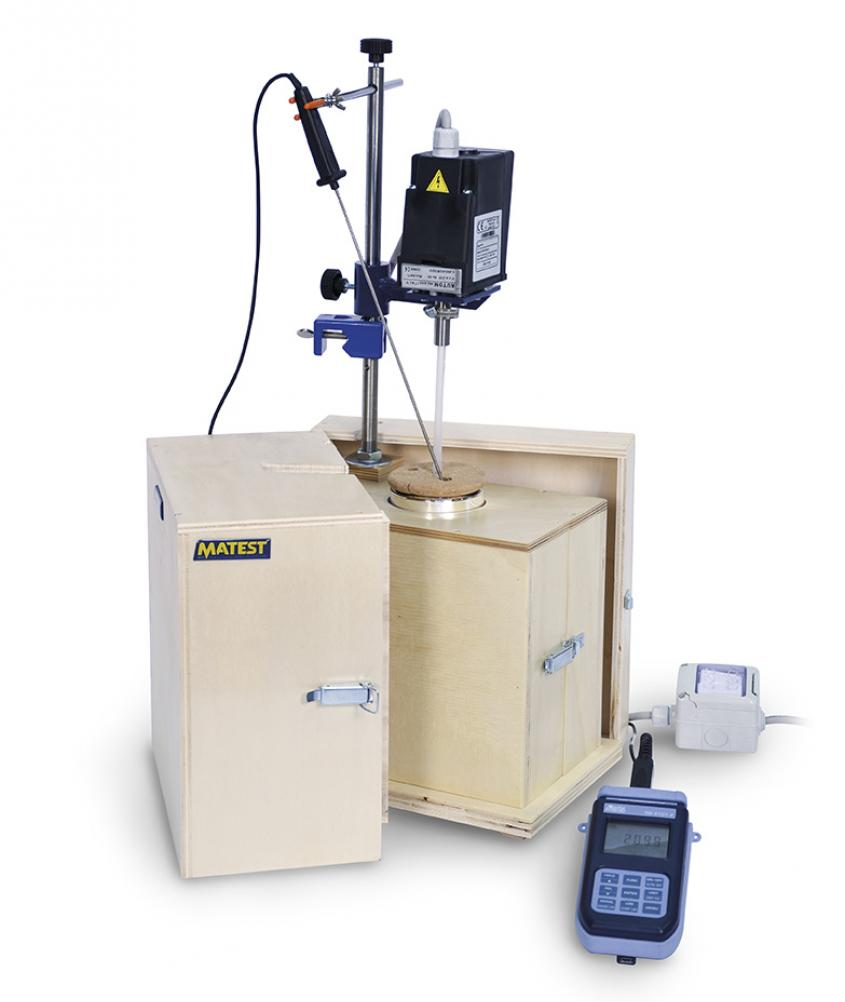

The apparatus consists of a Dewar flask contained in an insulated material and housed in a wooden box which is hinged so that the flask can be easily removed or replaced.
A second hinged wooden box contains the first one, granting better insulation, as expressly requested by the a.m. Standards.
The calorimeter is supplied with a constant-speed electric stirrer and filler funnel.
The standard supply does not include the thermometer (to be selected from digital models; see accessories) and the propeller according to EN and ASTM standards must be ordered separately.

Power supply: 230V 1ph 50Hz 150W
Dimensions: 350x250x680 mm
Weight: 12 kg approx.

• EN 196-8
• ASTM C186
