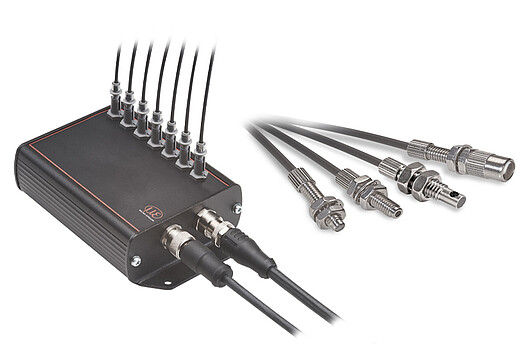

colorCONTROL MFA-7

The colorCONTROL MFA is used for flexible color inspections and intensity testing of LEDs, displays and colored objects. The flexible positioning of the sensors in relation to the objects, as well as their high repeatability, measuring rates and dynamics are particularly favorable. One colorCONTROL MFA monitors up to 28 test objects simultaneously.

Contact us for details
  • Multi-channel color recognition system
  • 7 measurement channels
  • Repeatability: xy < ± 0.000025
  • High measuring rate up to 100 Hz
  • High dynamic range of 1 … 50,000 lux
  • Simultaneous monitoring of up to 7 test objects
  • Color inspection in XYZ, xyY, Luv, uvl and RGB color space
  • Output of the dominant wavelength (λdom) and color temperature (CCT)
  • Exchangeable MFS receiver sensors
  • Outputs: USB / RS422 / RS232
