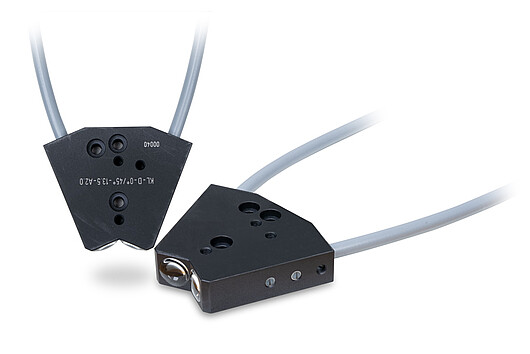

The angular illumination of the CFS1 enables a punctual illumination of the measuring object without influencing the surface. As a result, only the diffusely reflected portion of the surface color is detected. The measuring arrangement is best suited for high-gloss and diffusely reflecting surfaces, since the direct reflection (surface gloss) does not influence the measurement.

Characteristics

• For solid color, anti-reflective coating or chrome colors
• For high-gloss surfaces, diffuse reflection without gloss
• Max. working distance 125 mm (with reflective surfaces)
• Very precise positioning of the detection point
