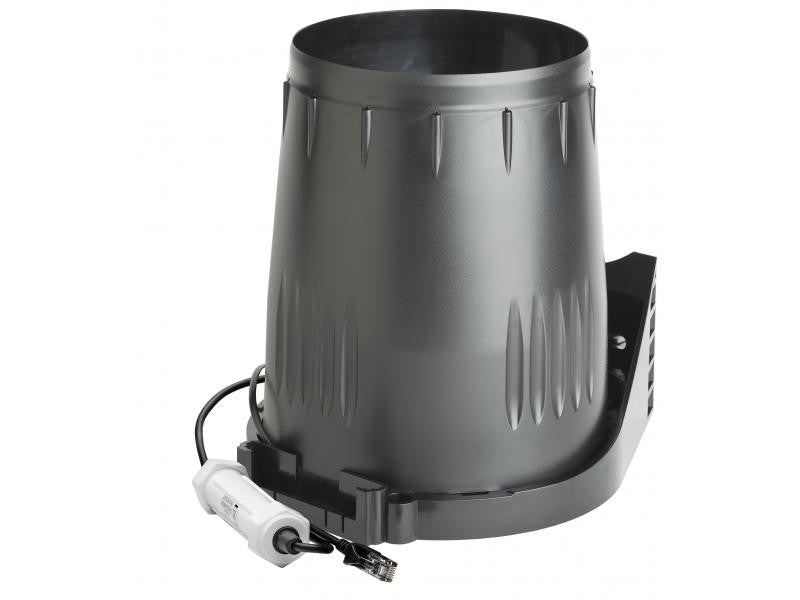

Davis Rain Gauge Smart Sensors are compatible with all HOBO weather station loggers, HOBOware, and HOBOlink. They offer the same ease-of-use as existing Onset Smart Sensors, providing cost-effective HOBO weather stations for projects on a tight budget. The sensors feature a plug-in modular connector for easy installation, and all configuration parameters are stored in the sensor and automatically communicated to the logger, eliminating the need for programming or extensive setup.
This sensor operates in an outdoor environment.
The S-RGC-M002 sensor supports the following measurement: Rainfall
| Measurement Range: | 0 to 10.2 cm (0 to 4 in.) per hour, maximum 4,000 tips per logging interval |
| Accuracy: | ±4.0%, ±1 rainfall count between 0.2 and 50.0 mm (0.01 and 2.0 in.) per hour; ±5.0%, ±1 rainfall count between 50.0 and 100.0 mm (2.0 and 4.0 in.) per hour |
| Resolution: | 0.01 in. (S-RGC-M002) or 0.2 mm (S-RGD-M002) |
| Calibration: | Requires annual calibration; can be field calibrated |
| Operating Temperature Range: | 0° to 50°C (32° to 122°F), survival -40° to 75°C (-40° to 167°F) |
| Environmental Rating: | Weatherproof |
| Housing: | UV-stabilized ABS plastic |
| Mechanism: | Tipping bucket with magnetic reed switch pivots on metal shaft |
| Dimensions: | 16.5 cm opening diameter (6.5 in.) x 24 cm (9.5 in.) high; 214 cm2 (33.2 in.2) collection area |
| Weight: | 1 kg (2 lb, 3 oz) |
| Bits per Sample: | 12 |
| Number of Data Channels*: | 1 |
| Measurement Averaging: | No |
| Cable Length Available: | 2 m (6.6 ft) |
| Length of Smart Sensor Network Cable*: | 0.5 m (1.6 ft) |
