Features

• Continuous torque sensing capability:
  Provides real-time torque measurements, ensuring accurate and consistent data throughout your tests.
• High Torque Measurement Accuracy:
  Achieve precision with a torque measurement accuracy of 1% of the full-scale range, delivering reliable results every time.
• Exceptional Repeatability:
  Benefit from a repeatability of 0.2% of the full-scale range, ensuring consistent performance across multiple tests.
• Easy Speed Adjustment and On/Off Control:
  Simplify operation with straightforward speed adjustments and convenient on/off controls, making it easy to tailor settings to your specific needs.
• Compatibility with All Brookfield Accessories:
  Enjoy versatility with full compatibility across the Brookfield accessory range, enhancing the instrument’s functionality.
• NIST Traceable Viscosity Standards Available:
  Ensure your measurements are accurate and compliant with industry standards, with viscosity standards traceable to NIST.
• Quiet, Reliable Operation:
  The electronic drive system guarantees quiet and dependable operation, minimizing disruptions in your workspace.
• Traditional Brookfield Quality:
  Trust in the long-standing reputation of Brookfield instruments, known for their durability and superior performance.

Why Choose the Dial Reading Viscometer?

• Simplicity and Reliability:
  The Dial Reading Viscometer is easy to use with a straightforward setup process, making it ideal for both routine testing and specialized applications.
• Proven Performance:
  Trusted by laboratories around the world for nearly a century, it remains the go-to choice for reliable viscosity measurement.
• Versatile Testing Options:
  With a wide range of compatible accessories, the Dial Reading Viscometer can be customized to meet the specific needs of various industries.

What’s Included

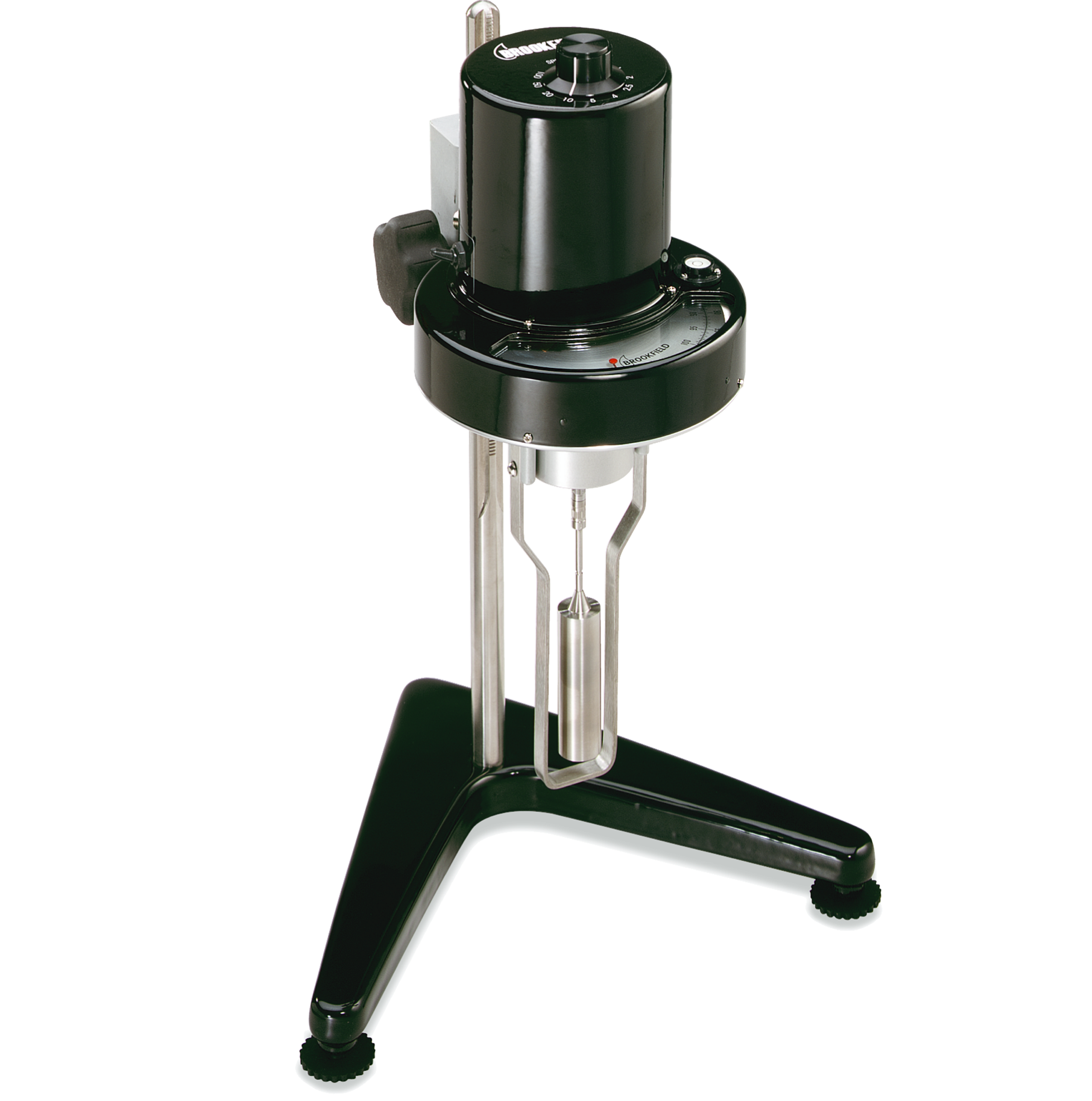

• Instrument: Dial Reading Viscometer
• Spindles: 6 spindles (RV/HA/HB) or 4 spindles (LV)
• Spindle Guard Leg*: Stabilizes the spindle during viscosity assessments
• Lab Stand: Model G for stable testing
• Carrying Case: For easy transport and protection of the instrument

*Not applicable to HA or HB models

Specifications

TORQUE RANGE AND EXPLANATIONS:

• LV (Low Viscosity):
  Ideal for low viscosity materials such as inks, oils, and solvents.
• RV (Medium Viscosity):
  Suitable for medium viscosity materials like creams, foods, and paints.
• HA (High Viscosity):
  Designed for higher viscosity materials including gels, chocolate, and epoxies.
• HB (Very High Viscosity):
  Best for very high viscosity materials such as asphalt, caulking compounds, and molasses.

SPECFICATIONS:

• LVT Model:
  • Viscosity Range: 1 cP † to 2M cP (mPa·s)
  • RPM Range: 0.3 – 60
  • Number of Speed Increments: 8
• RVT Model:
  • Viscosity Range: 100 cP †† to 8M cP (mPa·s)
  • RPM Range: 0.5 – 100
  • Number of Speed Increments: 10
• HAT Model:
  • Viscosity Range: 200 cP †† to 16M cP (mPa·s)
  • RPM Range: 0.5 – 100
  • Number of Speed Increments: 10
• HBT Model:
  • Viscosity Range: 800 cP †† to 64M cP (mPa·s)
  • RPM Range: 0.5 – 100
  • Number of Speed Increments: 10


  Spring Torque

• LVT Model:
  • Dyne-cm: 673.7
  • Milli Newton-m: 0.0673
• RVT Model:
  • Dyne-cm: 7,187.0
  • Milli Newton-m: 0.7187
• HAT Model:
  • Dyne-cm: 14,374.0
  • Milli Newton-m: 1.4374
• HBT Model:
  • Dyne-cm: 57,496.0
  • Milli Newton-m: 5.7496

Notes:

• † 1 cP achieved with UL Adapter accessory. 15 cP on LVT with standard spindles.
• †† Minimum viscosity is achieved with optional RV/HA/HB spindle.
• M = 1 million cP (Centipoise); mPa·s = Millipascal·seconds
• B = 1 billion

Related Accessories

• Viscosity Standards: Ensure accurate and reliable measurements with certified reference fluids.
• VisCal Kit: A comprehensive calibration kit to maintain your instrument’s precision.
• RV/HA/HB-1 Spindle: Versatile spindle options for a wide range of viscosity measurements.
• Temperature Bath: Maintain consistent sample temperatures for precise testing results.
• Small Sample Adapter: Perfect for accurate viscosity measurements with limited sample volumes.
• UL Adapter: Designed for low-viscosity measurements, enhancing the versatility of your instrument.
• Thermosel Heater: Ideal for high-temperature viscosity testing.
• HPQA Stand with T-bar Spindles: Automatically measure viscosity at multiple points within the sample.
• Spiral Adapter: For advanced analysis of complex fluids.
• DIN Adapter: Ensure compatibility with DIN standard viscometers.
• Quick Connect/Extension Links: Simplify spindle changes and extend the reach of your setup.
• Vane Spindles: For testing non-Newtonian fluids and materials with yield stress.
