Features

STANDARD VERSION FEATURES

Digital Leveling:

• • Ensures precise instrument setup for accurate measurements.

Start-up Wizard:

• • Simplifies the initial setup process with guided instructions.

Gel-Timer Functionality:

• • Measure gelation time with ease for various applications.

Optional Magnetic Coupling Attachment:

• • Upgrade to a magnetic coupling that replaces the EZ-lock for enhanced spindle security.

Optional Bar Code Scanner:

• • Streamline data entry and sample tracking with a convenient barcode scanner.

17025 Calibration (Optional)

• • Achieve compliance with ISO 17025 standards for calibration accuracy.

High Accuracy and Repeatability

• Achieve accurate results with :
• ±1.0% of range accuracy
• ±0.2% repeatability
• Ensuring reliable performance.

COMPLIANT VERSION FEATURES

• Hand-held Scanner for Bar Code Detection:
  Easily capture and input data with a hand-held barcode scanner.
• Accessory Detection with Bar Code:
  Automatically identify and configure accessories using barcode detection for seamless operation.
• Magnetic Coupling Attachment:
  Upgrade to a magnetic coupling that replaces the EZ-Lock for enhanced spindle security and ease of use.
• Compliance with 21CFR Part 11 and GAMP:
  Ensure regulatory compliance in both stand-alone and GAMP-compliant environments.
• Ethernet Connectivity:
  Enable network integration and remote monitoring with Ethernet connectivity.
• LIMS Connectivity:
  Seamlessly connect to Laboratory Information Management Systems (LIMS) for efficient data management.
• Printing to Non-editable PDF:
  Generate secure, non-editable PDF reports directly from the device, ensuring data integrity.

Why Choose DVNEXT RHEOMETER?

• Precision and Repeatability:
  Ensure accurate and reliable results with advanced features like digital leveling and real-time graphing.
• Compliance:
  Meet regulatory standards with the 21 CFR Part 11 Compliant version, including features like audit trails and secure data management.
• Versatility:
  Adapt to a wide range of testing needs with optional accessories and configurable features.

Specifications

• DVNXLV Model:
  • Viscosity Range: 1 cP* to 6M cP (mPa·s)
  • Speed Range: 0.1 – 250 RPM
  • Speed Increments: 2.6K
• DVNXRV Model:
  • Viscosity Range: 100 cP++ to 40M cP (mPa·s)
  • Speed Range: 0.1 – 250 RPM
  • Speed Increments: 2.6K
• DVNXHA Model:
  • Viscosity Range: 200 cP to 80M cP (mPa·s)
  • Speed Range: 0.1 – 250 RPM
  • Speed Increments: 2.6K
• DVNXHB Model:
  • Viscosity Range: 800 cP to 320M cP (mPa·s)
  • Speed Range: 0.1 – 250 RPM
  • Speed Increments: 2.6K

Options

• Cone Plate Version:
  Choose the cone plate version for precise viscosity measurements in small sample volumes.
• Ball Bearing:
  Opt for ball bearing support for enhanced stability and accuracy in high-torque applications.
• Quick Action Stand:
  Select the quick action stand for fast and convenient instrument setup and adjustments.

*Not applicable to HA or HB models

What’s Included

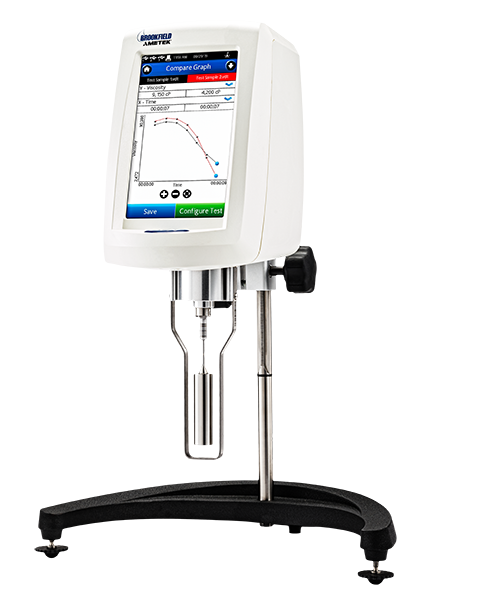

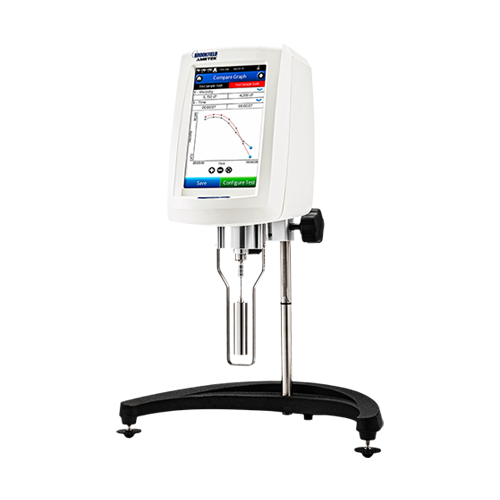

• Instrument: DVNext Rheometer
• Spindles: 6 RV/HA/HB spindles or 4 LV spindles
• RTD Temperature Probe: For precise temperature measurement
• Spindle Guard Leg*: Stabilizes the spindle during viscosity assessments
• Lab Stand: Model G Base for stable testing
• Screen Protector: Protects the touchscreen from wear
• Carrying Case: For easy transport and protection of the instrument
