E-8000
Digital Readout / Control Systems

• 1.8″ TFT display
• 4-button menu-driven operation
• Measured value, setpoint, totalized flow, and more
• Selecting one of up to 8 stored fluids in the instrument
• Various housing options for tabletop and rack mounting

Modular Power Supply / Readout and Control System

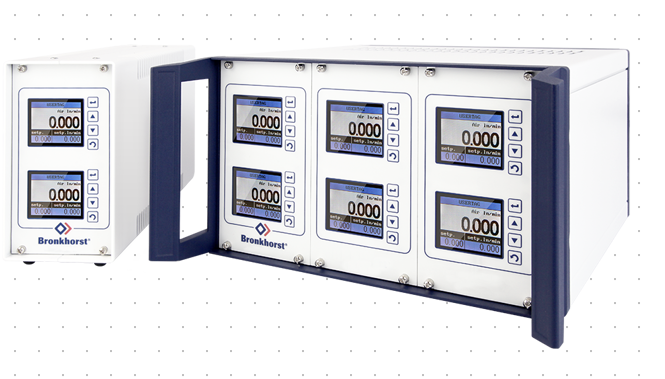

The Bronkhorst series E-8000 is a modular Power, Readout, and Control system. Designed for use with Bronkhorst digital Mass Flow Meters/Controllers, Pressure Meters/Controllers, and other Bronkhorst transmitters and transducers with RS232 or FLOWBUS communication. The E-8000 series features user-friendly display modules for indicating measured/totalized values and allows for changing setpoints, resetting counters, selecting fluids, and more.

The E-8000 supports modules for Controlled Evaporation Mixing (CEM) systems, Ex-Protected instruments, and configurations that require a PID controller. These modules can be integrated as a single-channel module into various housings, with or without display(s), and or with various fieldbus options.

The E-8000 series are available in tabletop, 1/2 19″ and 19″ housings, suitable for rack mount or tabletop use. The number of channels supported by the power supply(s) depends on the connected instruments and integrated modules.
