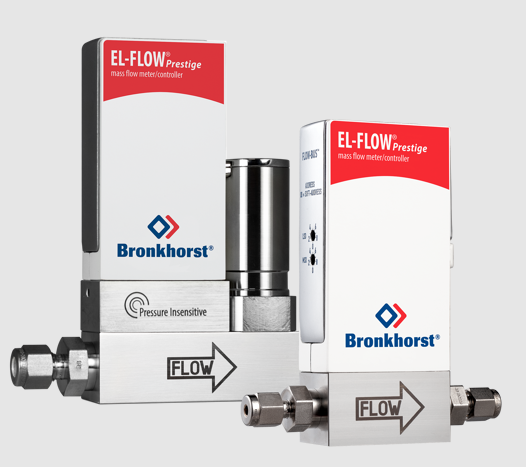

The EL-FLOW Prestige is the advanced version of the popular EL-FLOW Select series. This laboratory-style gas flow instrument (IP40) can be categorized as our high-end model, ensuring exceptional sensor stability and the highest accuracy. The instrument has a gas database on board and provides real-time temperature and pressure compensation. Do you require the highest quality in your lab measurements or research setup, then the EL-FLOW Prestige is your instrument of choice.

Technical specifications

• Type Of Media – Gas
• Flow measuring principle – Thermal
• Series range – For 0.014 mln – 100 ln/min
• Accuracy – ±0.5% Rd plus ±0.1% FS
• Repeatability – <±0.2% Rd (or <±0.04% FS whichever is greater)
• Max. Pressure bar(g) – 100
• Operating Temperature – -10…+70°C
• Ingress Protection – IP40

EL-FLOW Prestige models

High-end models to ensure the best sensor stability and the highest accuracy. Equipped with an on-board gas conversion model, including a gas database for 100 unique, customer selectable gases.

Where is the EL-FLOW Prestige used?

• Stable gas flow control for analytical instruments
• Evaporation device for humidification of fuel cells
• Gas flow controllers and vapor generators for test benches in the automotive industry
