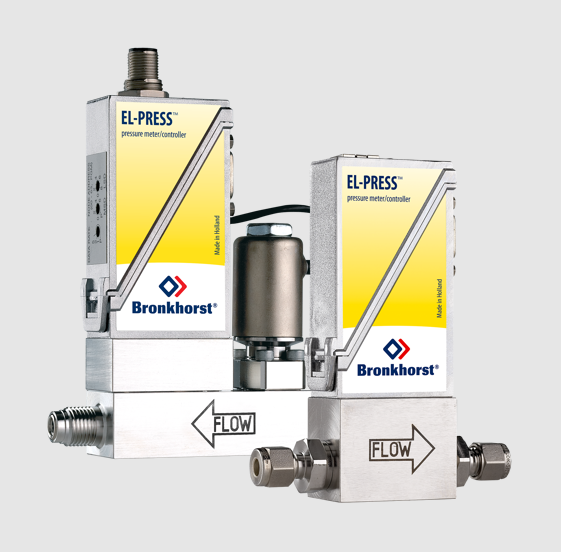

EL-PRESS
Lab-style Digital Electronic Pressure Meter /Controller

The EL-PRESS series is a versatile lab-style device for various configurations, such as pressure control with a flow meter or back pressure setup. It is ideal for steady and precise pressure measurement and atmospheric pressure changes. The metal sealed version, assembled in a cleanroom, and together with metal seals, is perfect for high purity processes. If you need an IP65 version, you can consider the IN-PRESS series.

Technical specifications

• Series range – Up to 400 bar
• Repeatability – ≤ 0.1% Rd
• Control Stability – ≤ ± 0.05 % FS (typical for 1 ln/min N2 at specified process volume)
• Digital Communication – standard: RS232; options: PROFIBUS DP, CANopen®, DeviceNet™, PROFINET, EtherCAT®, Modbus RTU, ASCII or TCP/IP, EtherNet/IP, POWERLINK, FLOW-BUS
• Response Time (sensor) – 2 msec
• Ingress Protection – IP40
• Accuracy – ±0.5% FS
• Operating Temperature – -10…+70°C

EL-PRESS Models

Within this series we have versatile lab-style instruments available for you with various configurations, like pressure control with a flow meter or back pressure setup. The series includes metal sealed versions as well, suitable for high purity processes.

Where is the EL-PRESS used?

• Flow controllers for diamond production (CVD diamonds)
• Flow controllers for liquefied gas dosing
• Flow and pressure controllers for chemical reactor systems
