Description

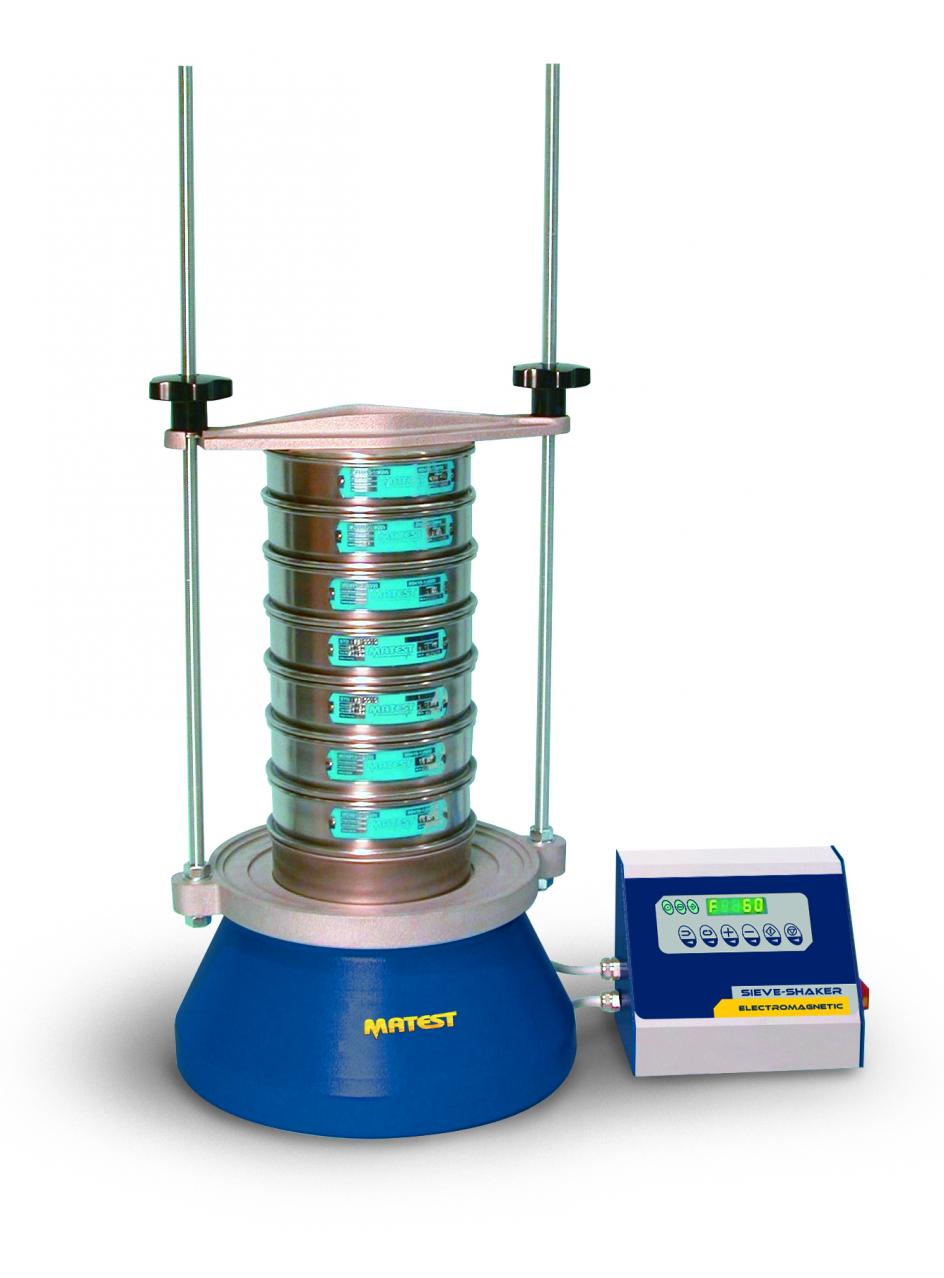

The A059-02-KIT is a high-capacity electromagnetic sieve shaker designed to accommodate a wide range of sieve diameters from Ø 200 mm to 315 mm, including 8” and 12”, making it ideal for laboratories requiring versatility and intensive use.

Driven by electromagnetic impulses, it performs a triple vibrating action —vertical, lateral, and rotational —ensuring optimal material stratification and high-precision separation, even for fine and cohesive particles.

The integrated digital microprocessor panel allows the operator to fully adjust timing, intensity, and vibration modes for maximum test control. The unit is also suitable for wet sieving, using the appropriate accessories (A046 / A047).

Main Features

• Triple vibrating action: vertical, lateral, rotational
• Compatible with multiple sieve diameters: Ø 200, 250, 300, 315 mm – 8” and 12”
• Holds up to 10 sieves
• Digital timer from 0 to 999 minutes
• Adjustable vibration intensity and pause time
• Continuous / intermittent operation modes
• Optional wet sieving configuration (A046, A047)
• Bench-top or wall-mounted control panel
• Rugged build for continuous laboratory use

Specifications

• EN 932-5
• ISO 3310-1
