Ultrasonic volume flow meter for any liquid including controller output

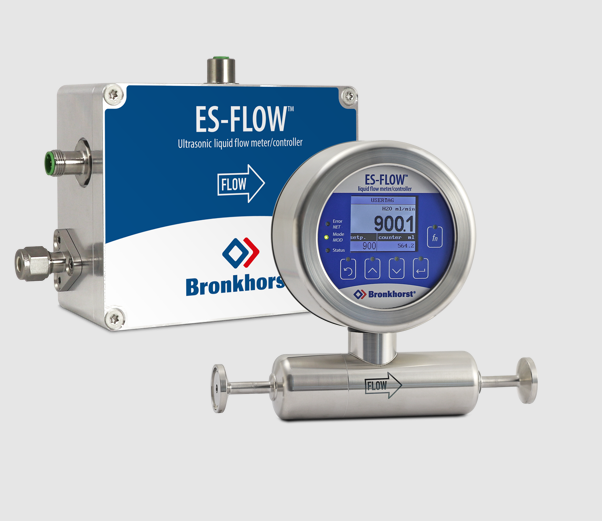

The ES-FLOW is a volumetric flow meter with controller functionality for liquids, available in two designs: one for hygienic applications and a compact version for OEMs. With 3-A approval and CIP compatibility, it is ideal for the food & beverage industry to measure or control natural additives, and carbonated liquids. In the chemical market, it measures catalysts, and non-conductive liquids. Unlike other ultrasonic flow meters, it measures accurately regardless of fluid density, temperature, and viscosity.

Technical specifications

• Type Of Media – liquids with speed of sound 1000…2000 m/s
• Flow measuring principle – Ultrasonic
• Series range – For 0…1500 ml/min
• Accuracy – ±0.8% Rd
• Repeatability – ±0.1% Rd ±ZS
• Max. Pressure bar(g) – 100
• Fluid Temperature – -10…90 °C
• Ingress Protection – IP66/67

ES-FLOW models

Our ES-FLOW volume flow meters offer liquid independent measurement of low volume flow rates. The instruments operate on a innovative measuring principle, using ultrasound in a very small, straight tube. A wide range of liquids can be measured independent of fluid density, temperature and viscosity.

Where is the ES-FLOW used?

• Flow meters optimize candy quality
• Ultrasonic flow meter for thermal spraying
• Liquid flow meters for vaccine production
