If flowing water is suddenly brought to rest in a long pipe, a phenomenon known as water hammer occurs, which produces a pressure wave that travels along the pipe. This principle is used in the hydraulic ram to pump water.
Contact us for details

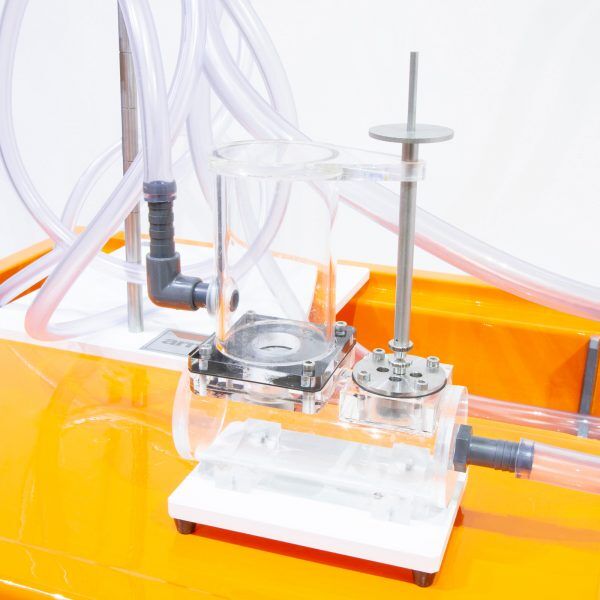

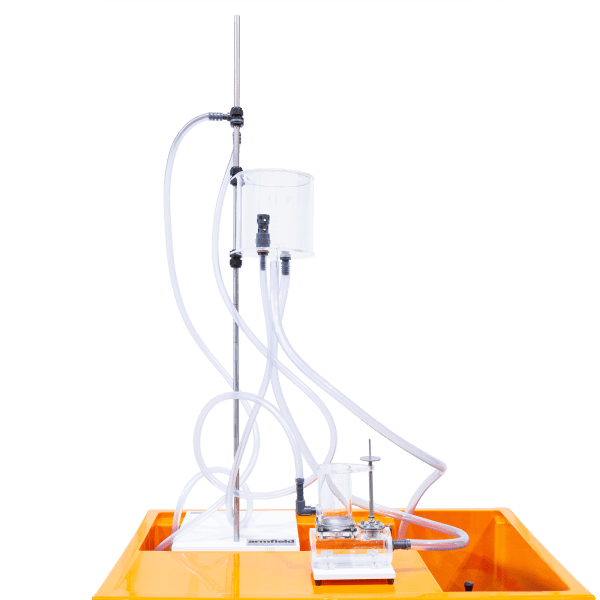

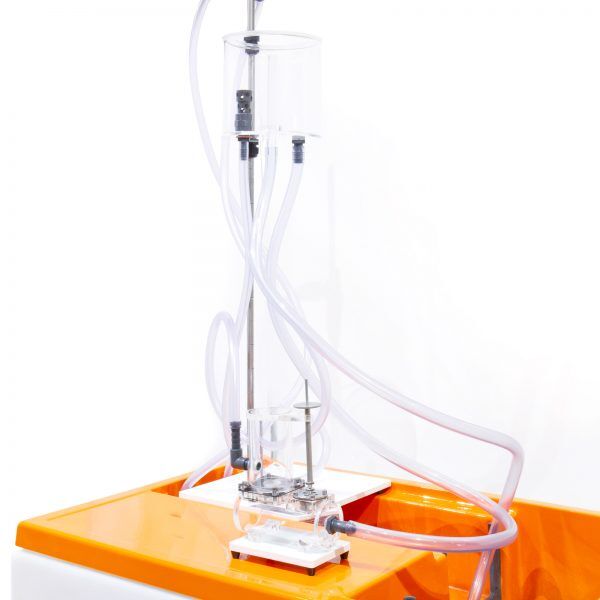

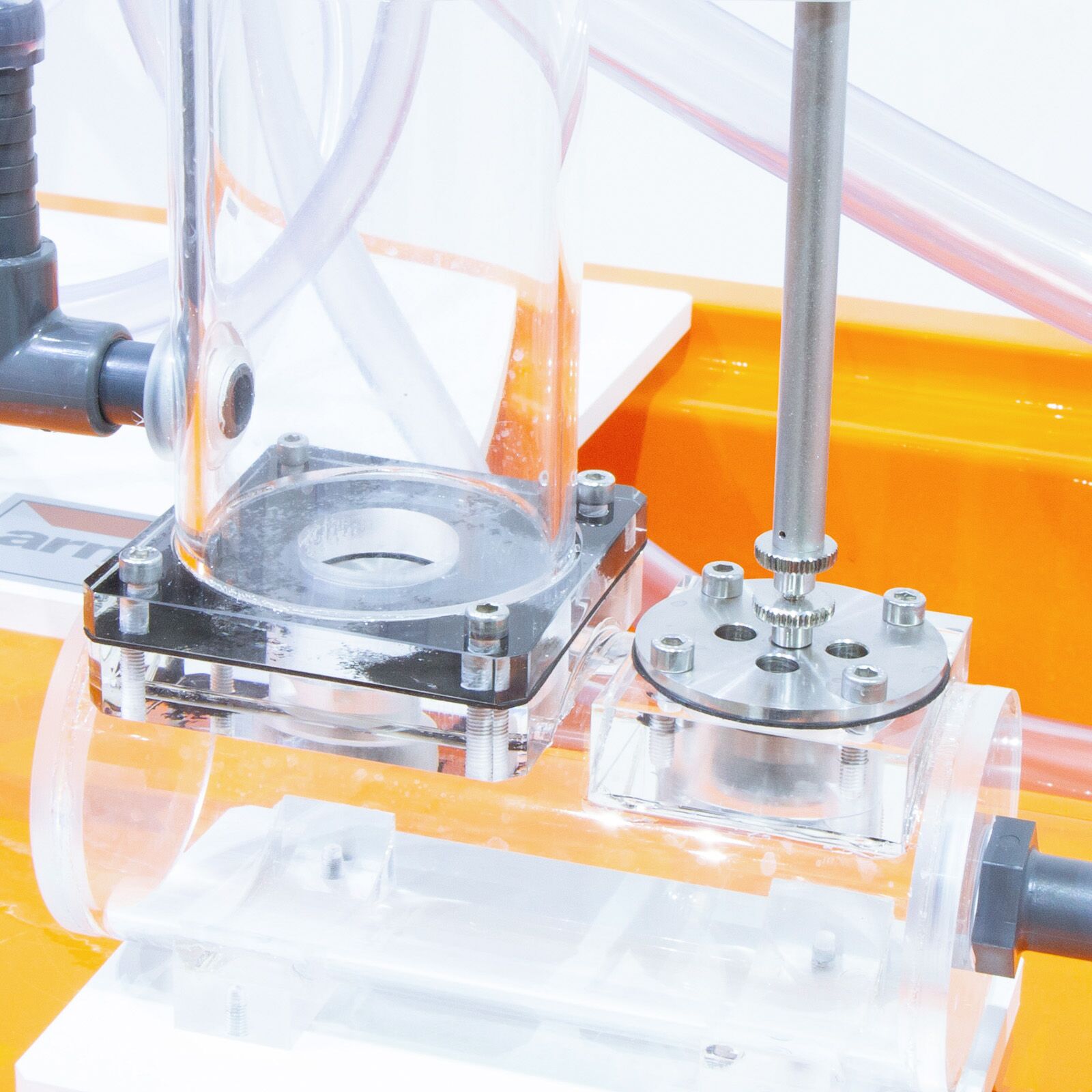

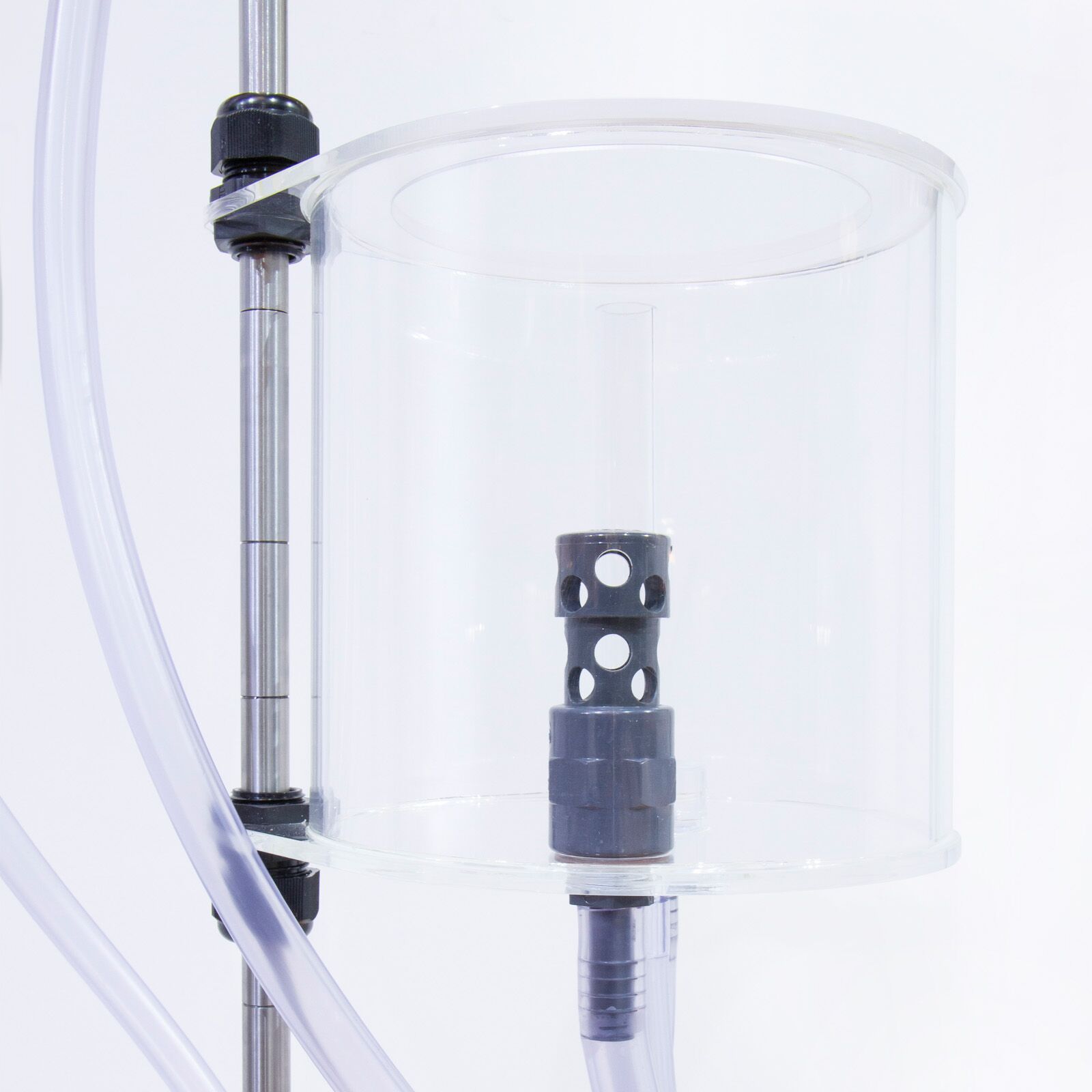

The Hydraulic Ram comprises an acrylic base incorporating pulse and non-return valves and a supply reservoir on a stand which is fed by the hydraulics bench. An air vessel above the valve chamber smooths cyclic fluctuations from the ram delivery.
The weights supplied may be applied to the pulse valve to change the closing pressure and thus the operating characteristics.
Supply head: 300-700mm variable
Delivery head: 750-1500mm variable
Requires Hydraulics Bench Service unit F1-10/F1-10-2
