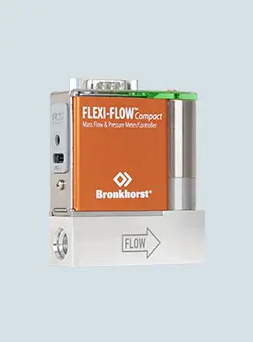

FLEXI-FLOW Compact
Multi-parameter Mass Flow & Pressure Meter/Controller for gases

The FLEXI-FLOW Compact sets a new standard in measurement and control with its multi-parameter capabilities. It combines three functions in one: gas flow measurement & control, pressure measurement & control, and temperature measurement. The compact design is ideal for various applications, from desktop bioreactors and analytical equipment to fuel cell production.

This series consists of compact innovative multi-parameter mass flow instruments. Offering flow, temperature & pressure in one instrument… it’s an all-rounder for all your applications..

• Type of Media –  Gases
• Flow measuring principle – Thermal
• Series range  – For 0 – 500 ln/min and 0 – 16 bar(g)
• Accuracy up to ±0.5% Rd plus ±0.1% FS
  (flow); ±0.5% FS (pressure)
• Repeatability < ±0.2% Rd
• Max. Pressure bar(g) 16
• Operating Temperature 0…+50 °C (32 – 122°F)
• Ingress Protection IP40

Where is the FLEXI-FLOW Compact used?

• Compact gas flow controllers in gas chromatography
• Stable gas flow control for analytical instruments
• Stable and fast gas flow control for vacuum deposition
• Gas flow control for benchtop bioreactors with flexible gas flow controller
