Standards

EN 12390-5; ASTM C78, C293; AASHTO T 97

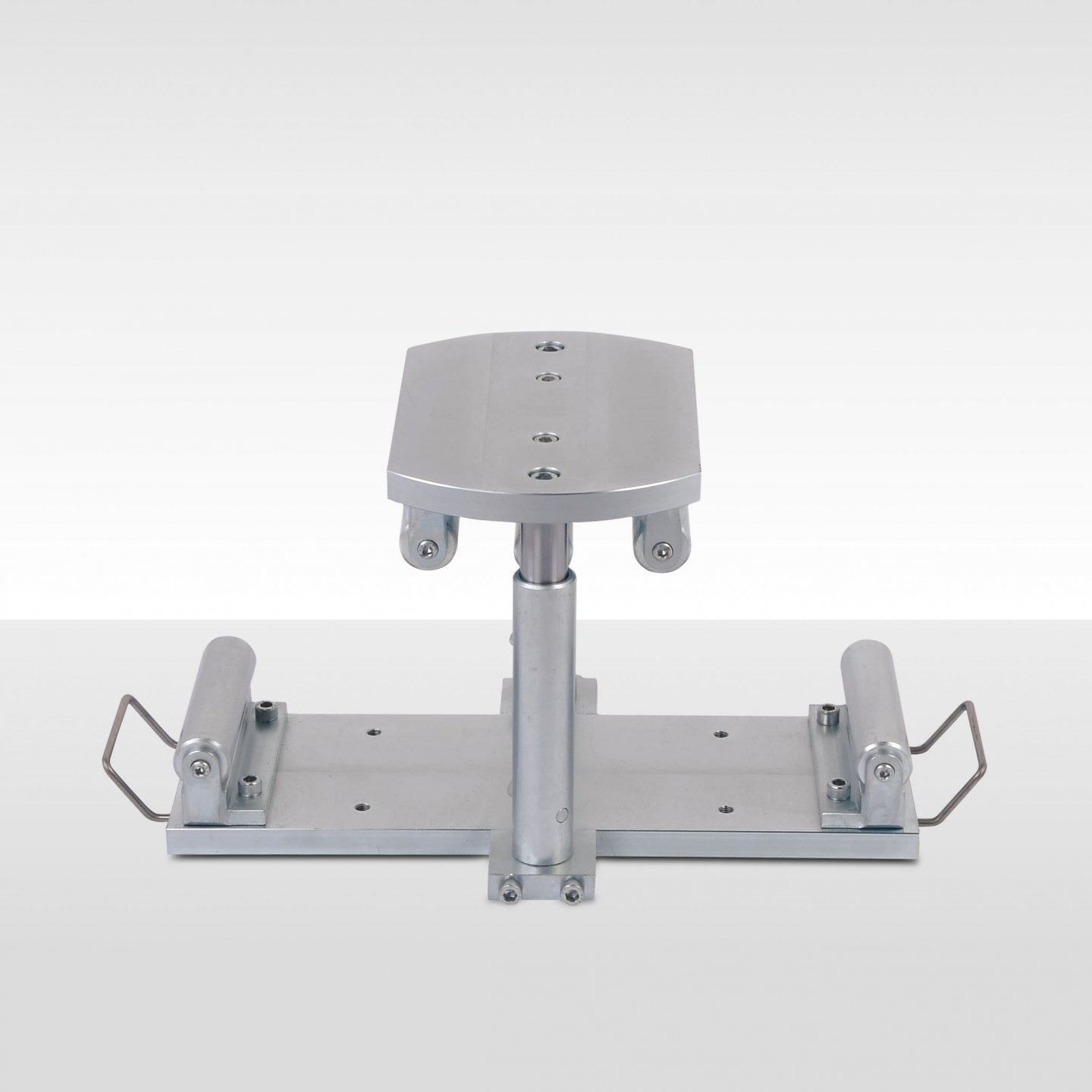

Flexural test device for center-point or two-point (third-point- ASTM) loading flexural tests on concrete beams of 100x100x400-500 mm,150x150x600-750 mm. Consist of two upper rollers and two lower rollers of 25 mm dia. and 160 mm lenght.

• Capacity : 150 kN
• Total height : 365 mm with 150mm beam, 290 mm with 100 mm beams.
• Distance between upper roller: 100 mm or 150 mm
• Distance between lower rollers: 300 mm or 450 mm
• Max vertical daylight: 160 mm for 150mm beam
• Min vertical daylight: 110 mm for 100mm beam
• Max travel: 40 mm
• Total width: 310 mm

Usable with all Utest compression testing machines by replacing UTC-0370 with lower platen.
