Description

The FT74XA is compact, mobile and easy to install. It has an integral pressurised hot water generator and requires only electricity and cooling water to operate making it ideal for confined spaces with limited services available.

Operation with either plate or tubular heat exchangers means a wide range of product viscosities can be handled. A progressive cavity feed pump ensures that flow rates are independent of viscosity/backpressure changes and allow a maximum operating pressure of 10 bar.

Cleaning is in place (CIP) utilises the feed pump in high flow rate mode and there is a centrifugal pump CIP option (FT74XA-52) which generates very high cleaning velocities to deal with products that are particularly difficult to clean.

Sterilisation (SIP) of the system is controlled from the touchscreen. System sterilisation time and temperature are defined and key temperature sensors are monitored to ensure the entire system satisfactorily completes the SIP cycle.

Automatic pre-heat control (FT74XA-46) offers an independent hot water circuit and the product pre-heat temperature is set via the touchscreen. The system is well instrumented for both process and services with all sensors displayed on the touchscreen and recorded values can be seen graphically and saved to USB data stick for further analysis.

• The FT74XA base unit provides the heating and cooling services, controls and instrumentation to run the heat exchangers. The heat exchangers fit on top of the base unit and can be interchanged easily in just a few minutes
• All sensor values and set points are shown and input on the screen
• Values can be recorded and extracted at a later date. These data can be viewed in real time as a graph or a table

Features & Benefits

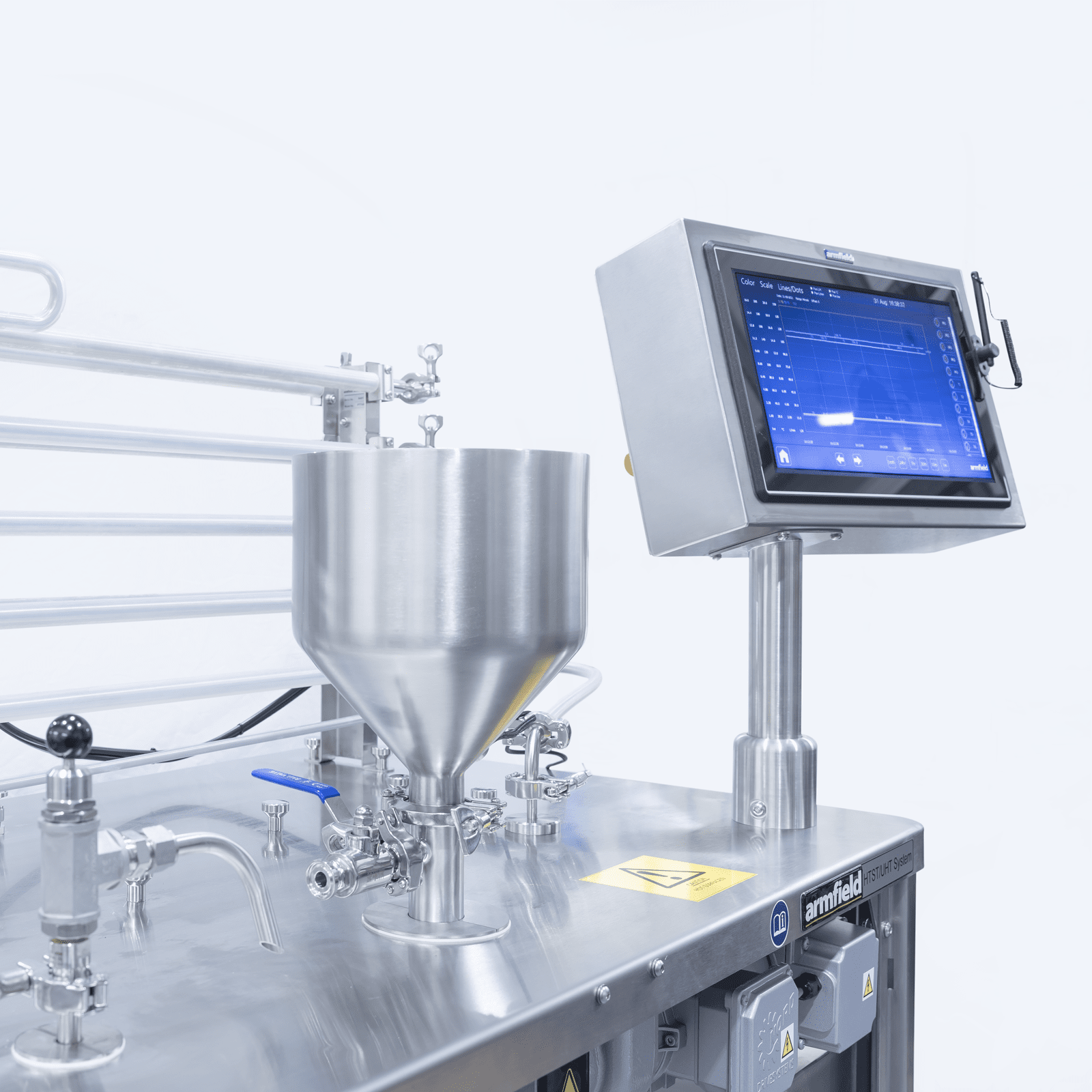

• Touchscreen control of all operations (15 inch)
• Tubular and plate heat exchanger options with rapid switch over
• Low product hold-up
• Variable holding tube option (FT74XA-65)
• High accuracy temperature sensors (PT100)
• Fully instrumented
• Upstream and downstream homogenisation
• Aseptic and non-aseptic modes
• Automated SIP option
• On-screen calculation of holding times and Fo value based on holding time and temperature
• Controlled cooling on the outlet (option)
• Recipes system as standard
• Two-stage cooling option
• Backpressure control using a sprung diaphragm valve or pinch valve (FT74XA-42) for products containing particulates
• Suction feed options for increased automation and batch size

Tubular heat exchangers FT74XA-20

• Consists of a series of industrial standard 316 stainless steel concentric tubes split into product pre-heat, main heat and cooling stages. With the standard tubular heat exchanger (5 tubes) the product pre-heat temperature is controlled manually using a needle valve to control hot water flow
• Product flows down the middle of the inner tube and the heating or cooling medium flows counter-currently through the anulus
• The surface area for cooling can be doubled by specifying the -24 option
• A double area heat exchanger (10 tubes) is available

Miniature plate heat exchanger FT74XA-30

• The standard FT74XA-30 has a regeneration section that uses heat from hot product to heat incoming product. There is also a main heat and cooling stage. A number of options can be added:
• FT74XA-31/32 Homogeniser plate upstream (-31) of main heat and downstream (-32) of main heat
• FT74XA-33 Dual stage cooling gives an extra cooling stage (can be serviced by Armfield FT63 recirculating glycol chiller) to enable very low (< 5°C) product outlet temperatures
• FT74XA-34 provides extra plates in the pre-heat and main heat sections which can be beneficial when operating at higher product flow rates for pasteurisations

Applications

• Baby foods
• Beer
• Beverages
• Condiments
• Confectionery
• Milk
• Cream
• Ice-cream
• Yoghurt
• Desserts and puddings
• Fruit and vegetable purées
• Fruit juices and cordials
• Sauces and soups
• Gravies
• Gelatine products
• Pet food
• Health and nutritional products
• Culture media
• Protein drinks
• Pharmaceuticals

Requirements

• Electricity supply: Single or Three phase (see ordering codes)
• Water supply: Required for product cooling, typically 5 L/min (or FT63 Process Chiller)

Technical Specifications

FT74XA Heat Exchanger Service Unit:

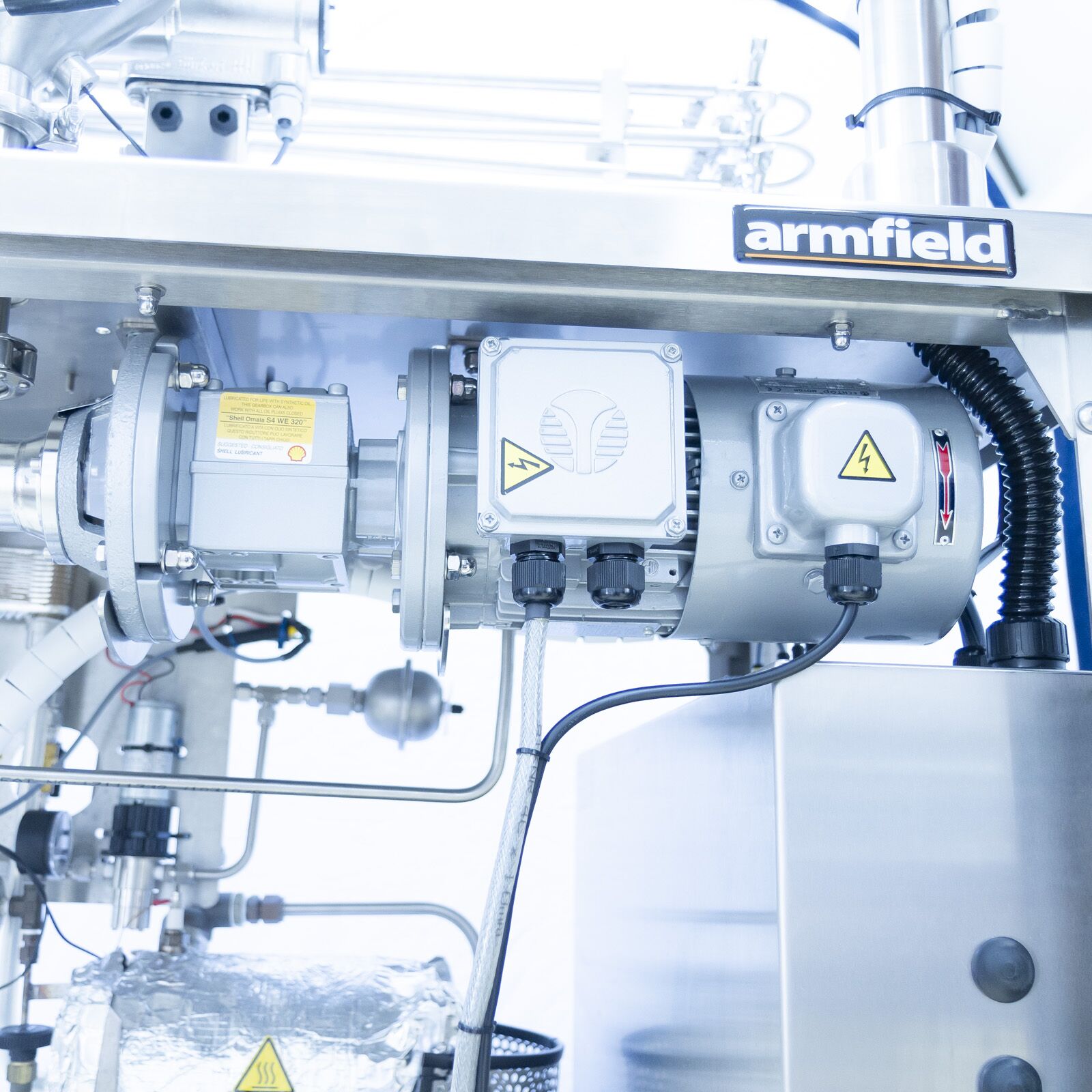

Feed pump

Progressing cavity variable-speed pump, with standard and high flow modes.
Particulate handling: 0.8mm
Fibre handling: 25mm
Standard flow: 10-30 L/hr
High flow:         Up to 120 L/hr

Pressurised water circulator

Water capacity:             4.0 litres
Pump circulation rate: Variable up to 6 L/m
Water temperature: 165°C maximum
Safety cutouts:
Low level
High pressure

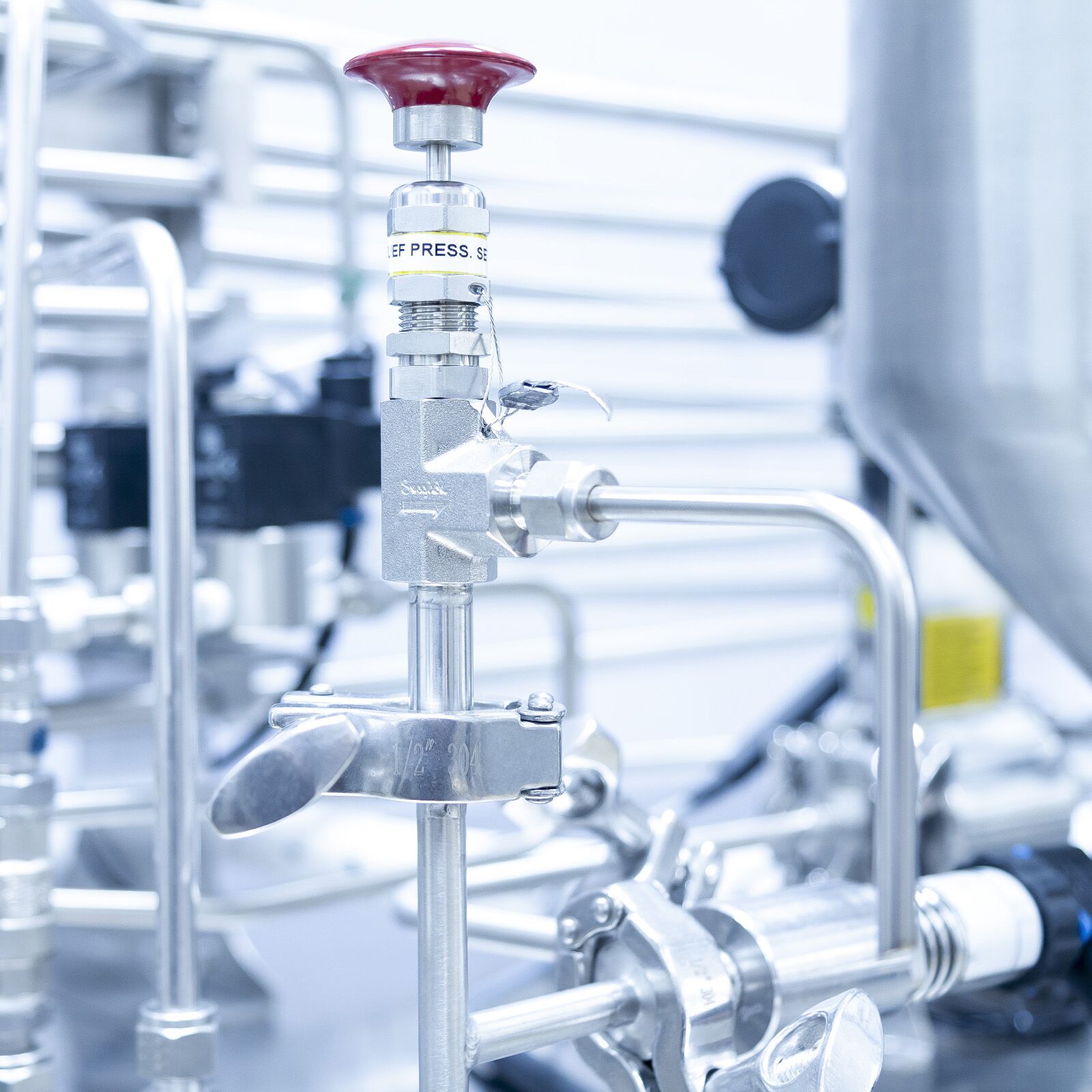

Mechanical pressure relief valve
Heating duty: 4 or 6 kW

Plate heat exchangers

Plate overall dimensions: 75 x 115mm
Effective diameter: 2.0mm
Plate thickness:      0.5mm
Wetted perimeter:   153.0mm

Materials

Plates: 316 stainless steel
Gaskets: Food-grade silicone
Working pressure: 10 bar (max)
Standard holding tubes: 2s and 15s

Tube diameter

(product side):     8.1mm
Overall diameter: 15.8mm
Length (heated):   800mm
Material: 316 stainless steel
Assembled test pressure: 15 bar
Working pressure: 10 bar (maximum)
Standard holding tubes: 2s and 15s

Dimensions

Length: 0.90m
Width:   0.85m
Height: 1.40m
