Description

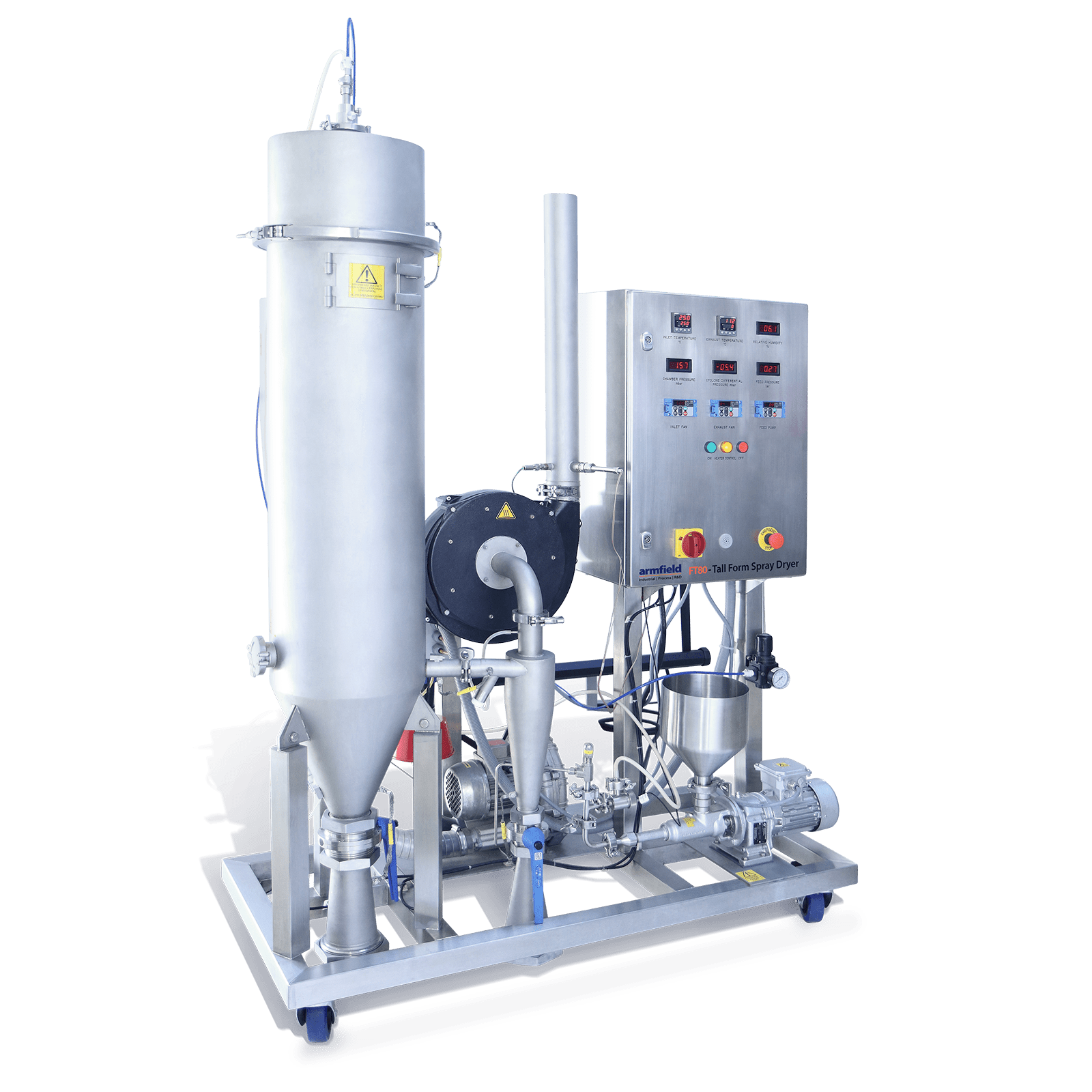

The Armfield FT80 Tall Form Spray Dryer and FT81 Tall Form Spray Chiller have been purpose designed to enable laboratory quantities of products to be processed.

Despite the size of the equipment, the powders produced will be comparable to large-scale production dryer capability. Both systems offer unparalleled flexibility with separate, individually controlled inlet and outlet fans, together with variable nozzle positions and selection of co- or counter-current flow configurations.

This flexibility is enhanced by an unsurpassed range of options, purpose-designed for laboratory and research use. With the appropriate accessories it is possible to change from spray-drying to spray-chilling configurations in a matter of minutes, thus adding further unique experimental capability.

Co-current spray-drying configuration

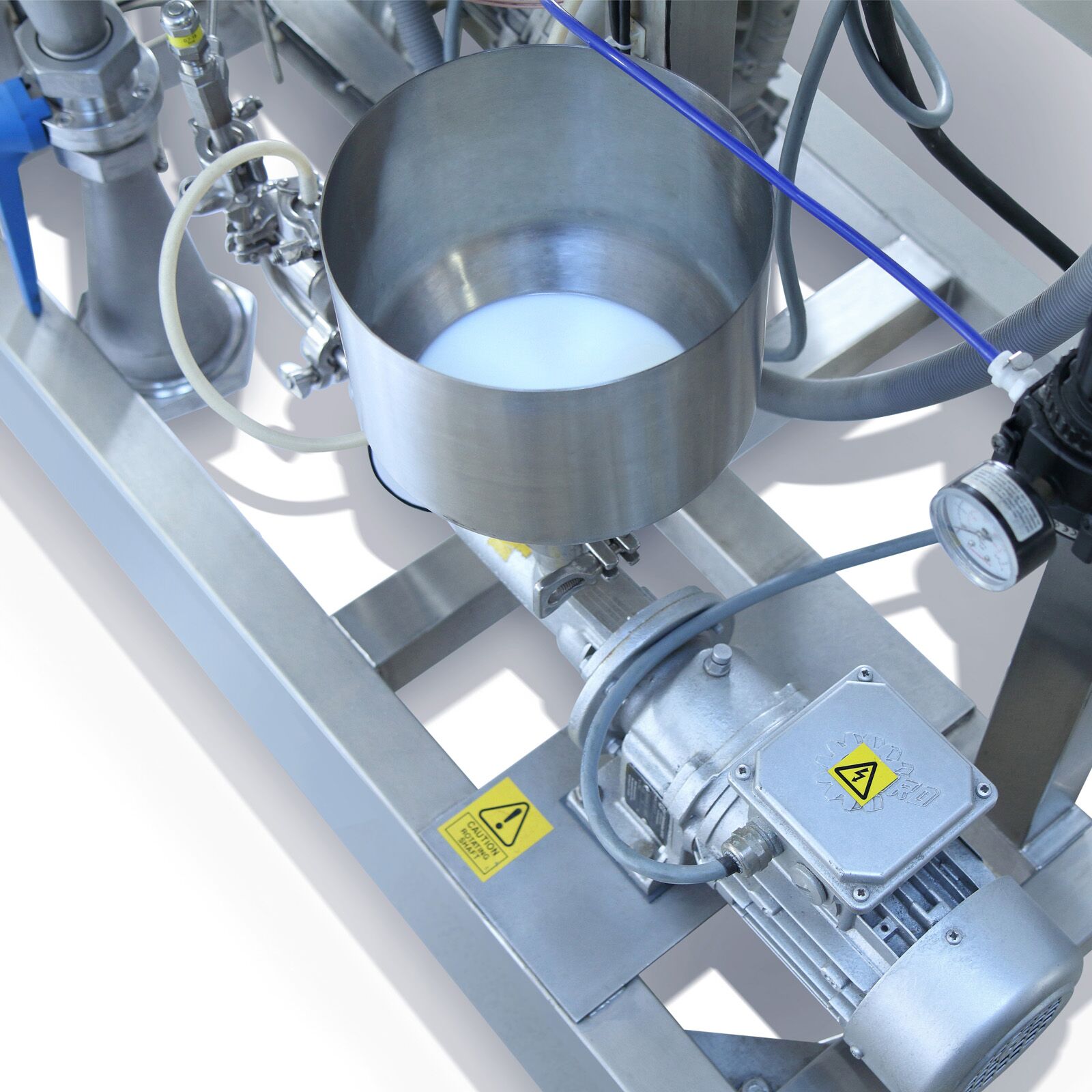

The liquid to be dried is pumped to the top of the drying chamber by a variable-speed progressing cavity pump, which provides a very smooth flow and constant flow rate.

It is atomised by a two-fluid nozzle and enters the drying chamber as a fine droplet dispersion. Hot air is blown into the chamber, on to the droplets causing flash evaporation of the surface moisture. The bound moisture in the particles is evaporated in the time that they fall to the discharge point at the base of the cone (the residence time). In this configuration the particle temperature will never exceed the wet bulb temperature of the exhaust air.

A variable-speed centrifugal fan provides control over the inlet air flow and a steady inlet temperature is achieved by using a three-term controller in conjunction with an electric heater. A second variable speed fan draws air from the chamber through a cyclone separator. This ‘push-pull’ fan system provides flexibility to operate the chamber at variable pressures with variable residence times. Two powder collection points are provided, one at the bottom of the main chamber, and one on the cyclone separator. This enables particles of different sizes to be collected simultaneously and/or separately.

Exhaust-air relative humidity can be measured and controlled so as to enable the system to run at the required RH level. The nozzle is an external-mix two-fluid atomising nozzle. Compressed air is directed onto the liquid stream as it leaves the nozzle body and immediately atomises it. With this type of nozzle the orifice is larger than a single fluid type, and so it is possible to atomise more viscous products and even products containing suspended solids.

Features & Benefits

• No clogging, no need for de-blocking devices
• Co-current flow for drying heat sensitive products
• Counter-current flow maximises chamber residence time for non-heat sensitive products
• Relative humidity displayed
• Residence times in the drying cylinder variable up to 9 seconds
• Easy connections to electrical and compressed air utilities
• Data recording to computer for rapid evaluation and comparison
• Accessory sets are available to quickly change from drying to spray chilling
• Available as a Spray Dryer (FT80) or as a Spray Chiller (FT81)
• Drying air temperature up to 250°C
• Maximum flow rate up to 7 l/hr
• Maximum evaporation rate of 3 l/hr
• Tall form chamber straight side to diameter ratio of 3:1, conical discharge section
• Advanced two-fluid nozzle atomisation system
• Supplied with optional nozzle configurations for counter- and co-current atomising
• Individual inlet and exhaust fans with variable-speed control
• Bag filter and trace heating options
• Flexible controls and full instrumentation provided in the IP65 control console

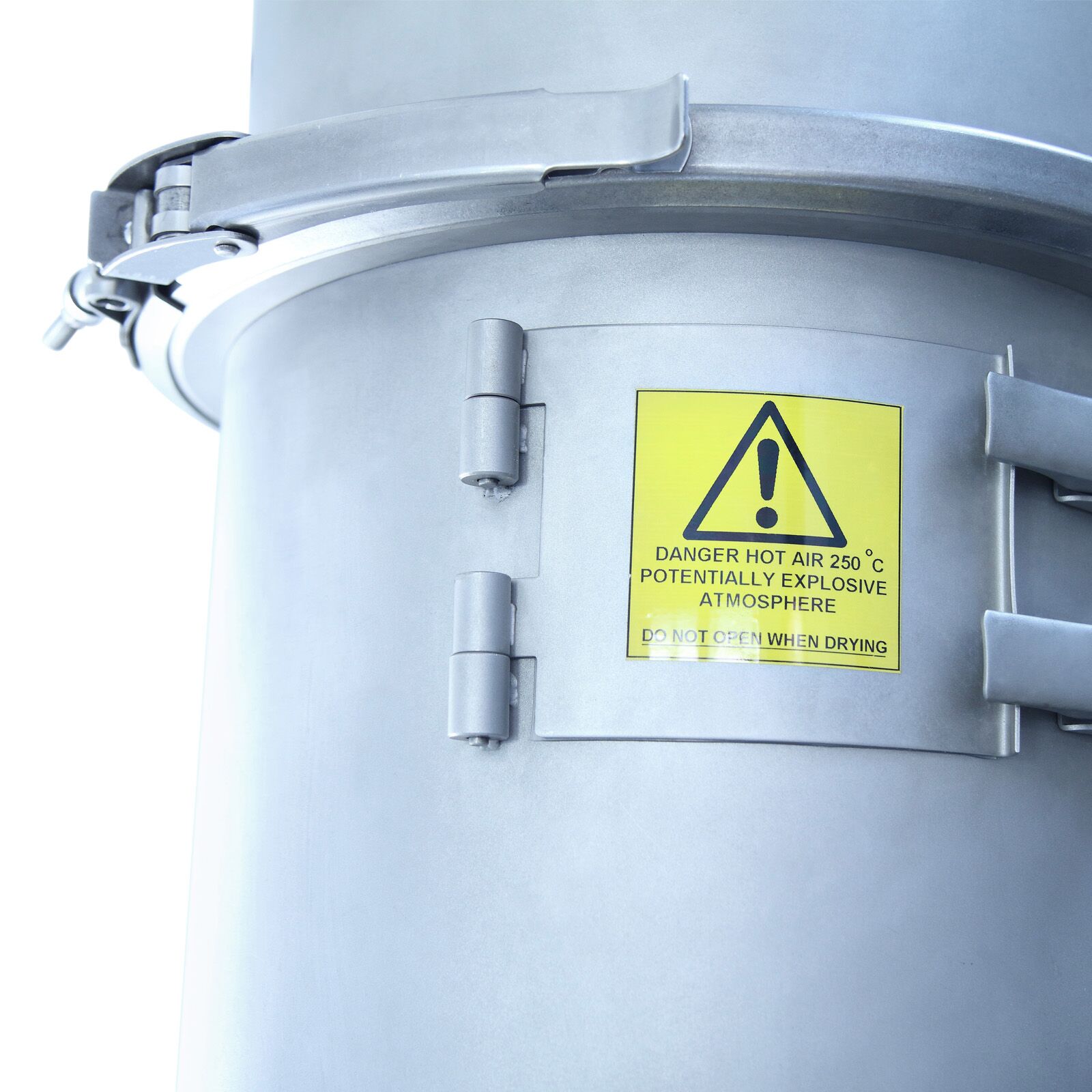

• Easily dismantled for inspection and cleaning purposes
• Compact, mobile design
• Data logging facility for all key operating parameters
• Powder discharges from two points, chamber and cyclone
• Low noise levels
• Control and measurement of relative humidity
• Spark arrester on input and enhanced safety extraction fan

Windows™ Data Logging Systems

A unique benefit of the Armfield miniature-scale food processing range is that the measured data may be captured and stored to disk. An Armfield FT80-DTA-ALITE Data Logging Accessory transfers results to a PC. Temperatures, pressures and relative humidity can be monitored in real-time.

The data can be displayed in graphical and tabular forms and printed. A PC with a USB port, and running Windows XP or later is required.

armSOFT

The armSOFT software enables the operator to select the appropriate stage of the process and a mimic diagram with measured variables is displayed. The speed of the pump can be varied to meet the required flow rate.

Results are saved in a log, which can be viewed and manipulated with the armBUS results viewer. Results can be printed or exported in a spreadsheet format, which can be opened in a wide range of packages for further analysis.

Applications

• Dairy
• Liquid Foods
• Pharmaceuticals
• Nutraceuticals
• Flavours & Fragrances

Requirements

Single-phase electrical supply (see ordering codes)

• Compressed air: 1-5 bar pressure, 0.05 m³/min
• PC: Optional (if using the optional Data Logging System a PC with a USB port, and running Windows XP or later is required).

Technical Specifications

General:

Liquid feed:  2-7 l/hr from variable-speed progressive cavity pump

Air flow:  Up to 30scfm, using variable-speed fans in ‘push-pull’ configuration

Chamber residence times:  Variable up to 9 seconds

Powder collection points:  Separate chamber and cyclone discharge points

Atomisation nozzles:  2-fluid type

Spray drying:

Electric air heater: 4.5kW

Drying air temperature: 50-250˚C

Evaporation rates: 1.5-3 l/hr

Typical particle size range: 20-120 microns

Spray chilling:

Air temperature:  2˚C minimum

(Note: not all parameters are necessarily achievable simultaneously)

Dimensions:

Model             FT80           FT81

Length:          1.30m          1.30m

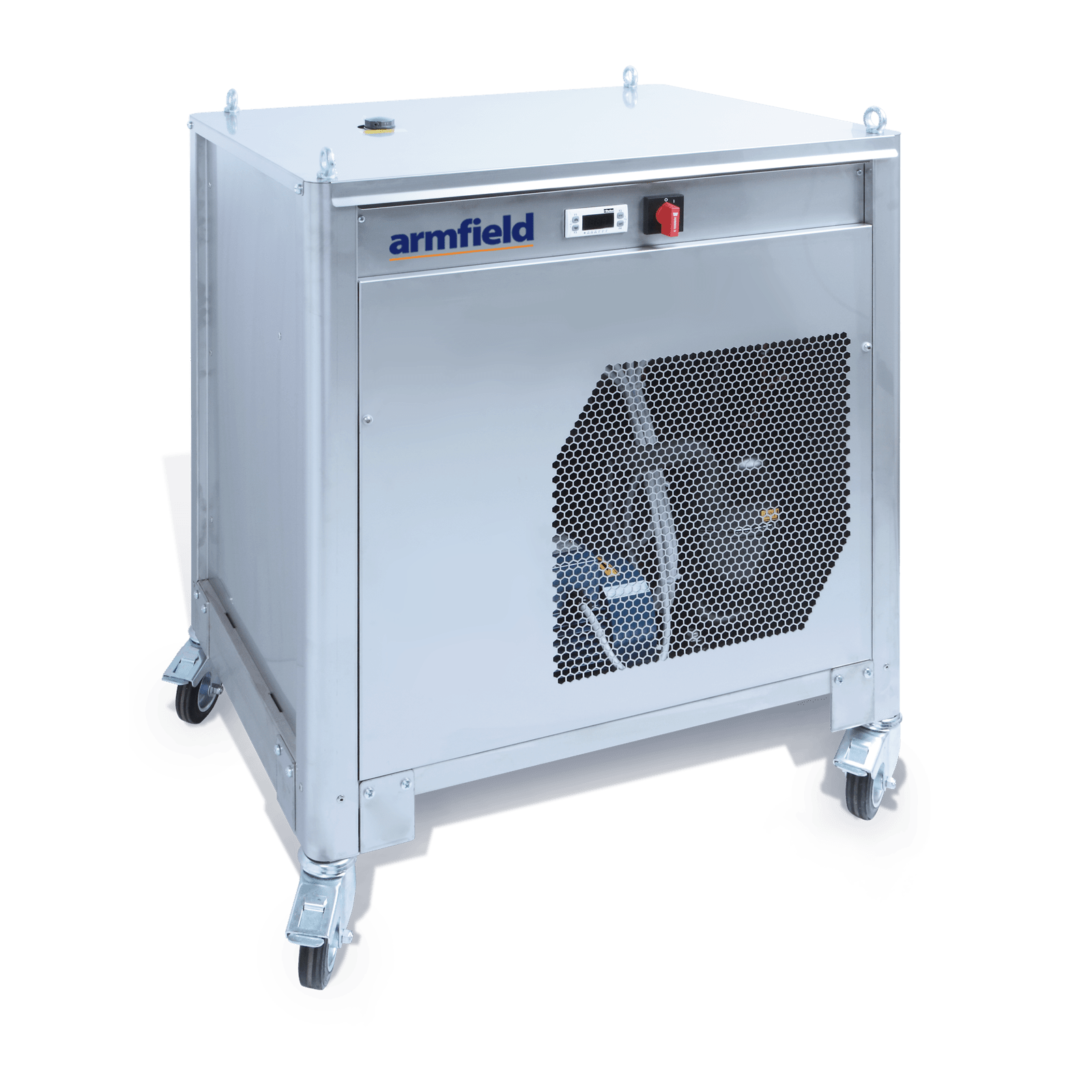

Width:            0.62             0.80m (not including FT63 chiller)

Height:           2.0m            2.0m
