Description

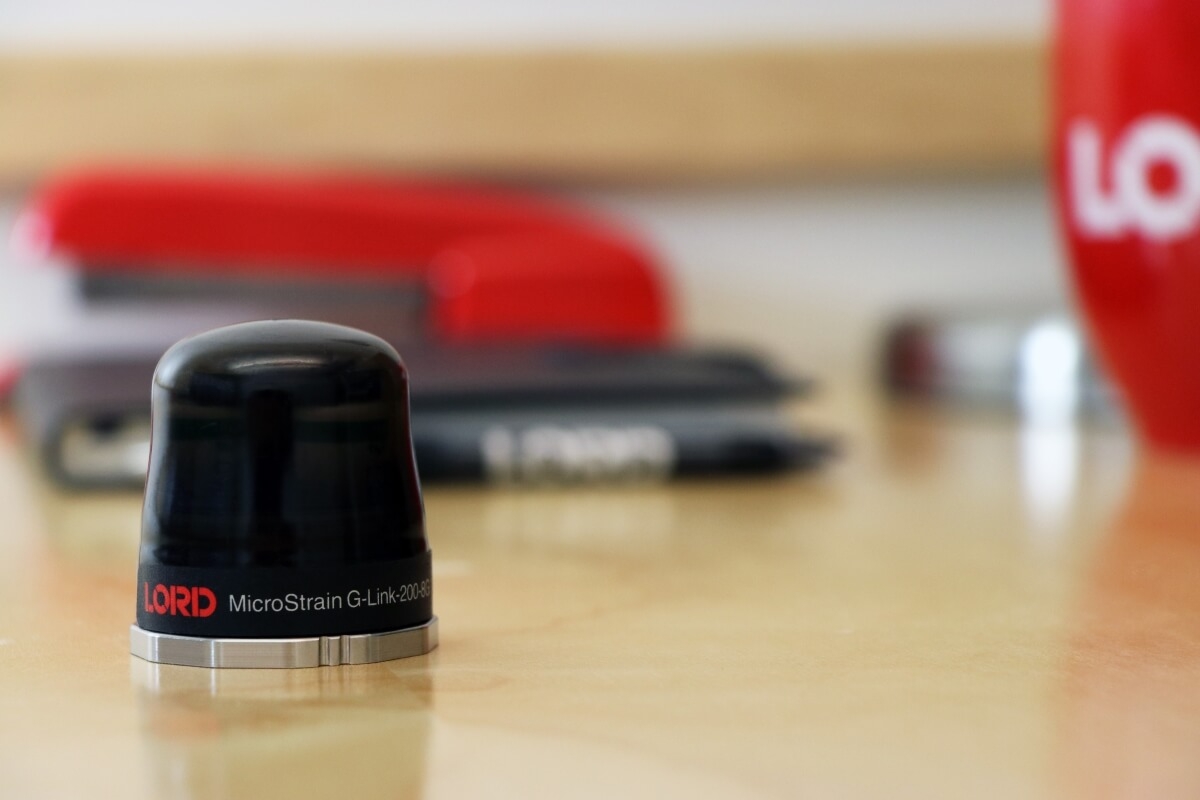

The G-Link-200 is a battery powered wireless 3-axis accelerometer with a rugged, weatherproof enclosure. The G-Link-200 provides extremely low noise waveform data, ideal for vibration, impact, motion, and tilt monitoring applications. Additionally, derived vibration parameters allow for long-term condition monitoring and predictive maintenance.

MicroStrain wireless sensor networks are fast to deploy and provide reliable, lossless data throughput. These networks are proven to work in demanding industries where reliable data acquisition is critical.

Specs

Sensor

• Integrated 3-axis high performance accelerometer
• DC to 1KHz bandwidth
• Adjustable input range
  • ±2/4/8G (G-Link-200-8G)
  • ±10/20/40G (G-Link-200-40G)
• Extremely low noise density
  • 25 µg/√Hz (G-Link-200-8G)
  • 80 µg/√Hz (G-Link-200-40G)
• Programmable high- and low-pass digital filters
• On-board temperature sensor (+/- 0.25°C)
• Tilt (±1° accuracy, <0.1° precision)

Operation

• Adjustable sampling rate up to 4 kHz
• Continuous, periodic burst, or event-triggered operation
• LXRS protocol allows lossless data collection, scalable network size, and node synchronization of ±50 µs
• Output acceleration waveform data, tilt, and/or derived vibration parameters (Velocity, Amplitude, Crest Factor)
• Datalogging up to 8 million data points
• Wireless range up to 1km

Package

• IP-67 weatherproof enclosure
• Stainless steel base

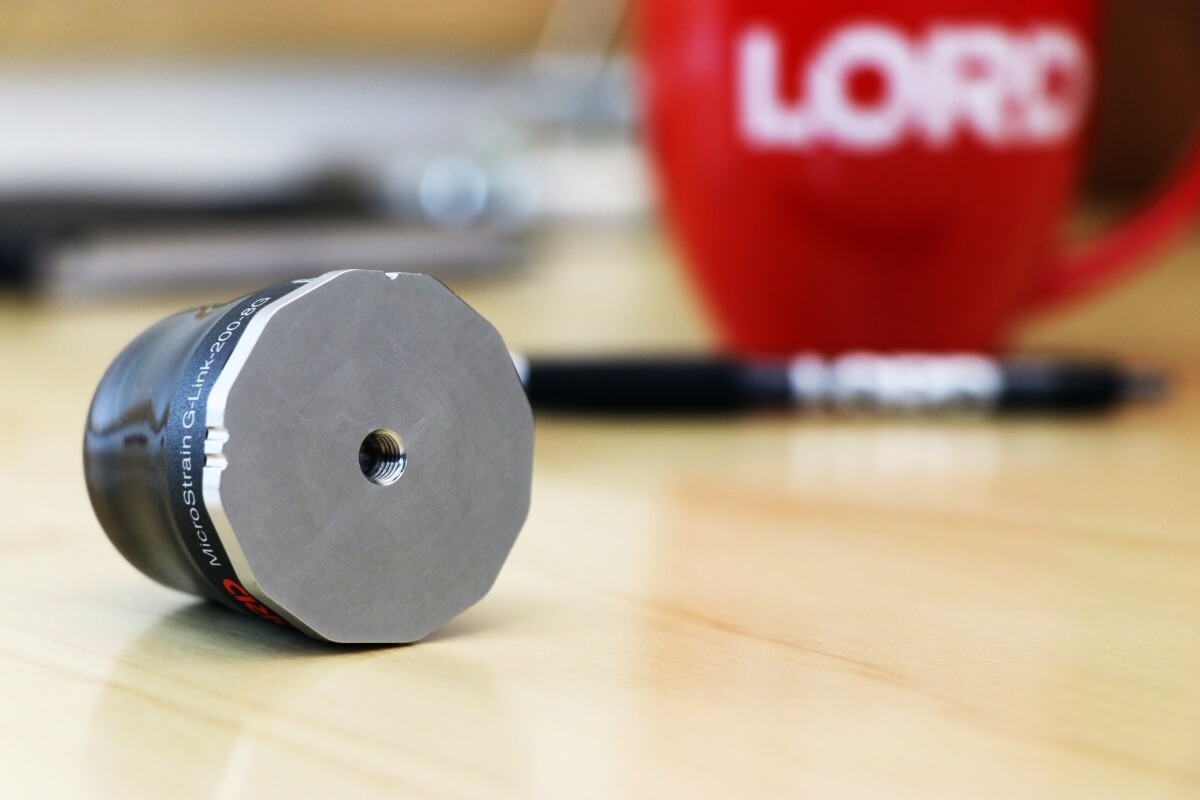

• ¼ 28 UNF mounting hole or optional magnetic base
• 3 on-board ½ AA 3.6V LiSOCL2 batteries
• –40 to +85 °C operating temperature range

Compliance

• Amusement Ride Characterization G-Link-200-R (Roller Coaster)
