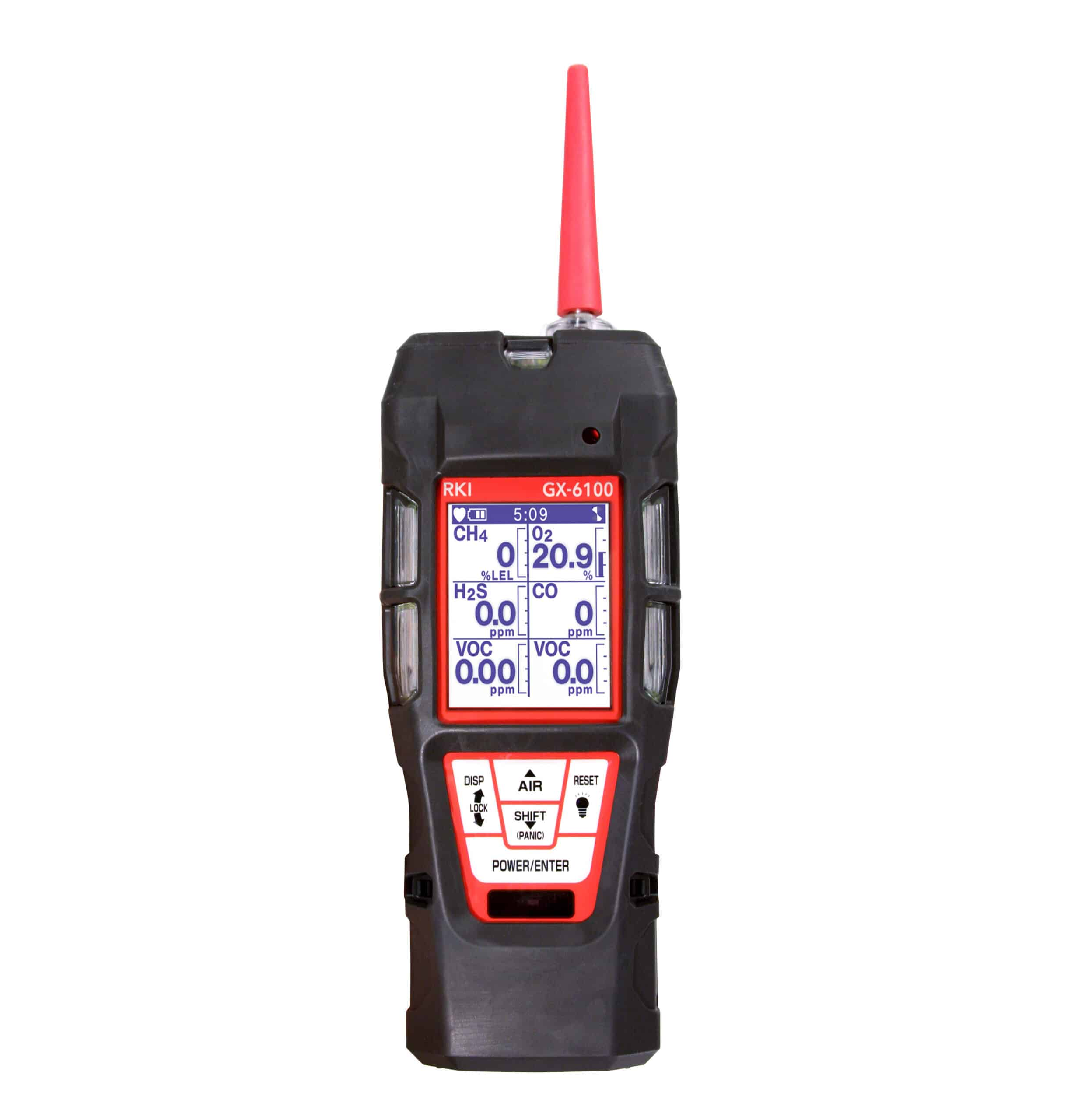

GX-6100 Multigas Detector

The GX-6100 is a powerful hand-held instrument capable of simultaneously monitoring up to 6 gases.

Contact us for details
Description

The GX-6100 is a powerful hand-held instrument capable of simultaneously monitoring up to 6 gases. In addition to the standard 4 confined space gases which include combustibles, O2, CO, & H2S, the GX-6100 has 2 additional smart channels that accept PID, PPM, IR or super toxic sensors. The updated GX-6100 can measure combustible gases in PPM range and %volume in the same monitor.

Equipped with a strong internal sample pump, a man-down alarm, a panic alarm, an LED flashlight, and large auto rotating LCD display, the GX-6100 can operate as a single gas PID unit or a multifunctional tool utilizing all 6 channels. The GX-6100 with a PID sensor will come equipped with a library of over 600 VOC gases to choose from as standard. Choosing from the library is easy with a personalized favorites list of 30 commonly used VOC’s as well as a list of 8 of the most recently used VOC’s. A benzene-specific version is available using a pre-filter tube for detecting low levels of benzene. Four PID sensors are available, 10.0 eV, 10.6 eV (low or high range), and 11.7 eV. Any combination of two PID sensors can be installed. GX-6100 PID sensors are also resistant to humidity.

The GX-6100 has a rugged design built for the nastiest environments. It is equipped with a removable impact-resistant rubber boot and a dust and water resistant enclosure with an IP-67 rating. With 5 bright LED lights on 3 sides of the instrument, alarms are easily seen from a variety of perspectives. With vibration and loud audible alarm, GX-6100 will easily alert users when needed.

Sensors available: LEL, CL2, CO, CO2, HCN, H2S, NH3, NO2, PH3, SO2, Ammonia, Chlorine, Hydrogen Cyanide, Nitrogen Dioxide, Phosphine, Sulfur Dioxide, Carbon Dioxide, Methane, Hydrocarbon, Hydrogen Sulfide, Carbon Monoxide, Oxygen, % volume measurement of combustibles, and VOC (volatile organic compounds). GX6100



6 Operating Modes
  • Normal Mode
  • Barhole Mode
  • Inert Mode
  • Leak Check
  • Snap Log Mode
  • Benzene Specific



Features
  • Smallest 6 gas sample draw detector
  • New 4-gas sensors with up to 3-year warranty
  • 2 Interchangeable smart sensor slots
  • TC sensor for %volume measurement of combustibles
  • New ppm MOS CH4 and ppm MOS i-C4H10 sensors
  • 4 PID options: 10.6 (2 ranges) eV, 10.0 eV, and 11.7 eV lamps
  • Supports dual PID sensors
  • PID library of over 600 VOCs
  • Rapid sharing of emergency alerts via Bluetooth®
  • Benzene specific version
  • PPM Leak Check mode
  • LEL sensor protection mode
  • Man-down alarm
  • Panic alarm
  • Auto display rotation
  • Peak-bar display
  • LED Light source
  • Internal sample pump
  • Light weight, small, rugged IP-67 design
  • Interchangeable battery packs (Li-ion / alkaline)
  • Operates up to 28 hours on Li-ion battery pack, 8 hours operation with alkaline pack
  • Field replaceable sensors, batteries, filters and pump
  • Intrinsically safe ATEX / IECEx / cCSAus (pending)



Applications
  • Confined Space Entry
  • Hazmat Response Teams
  • Arson Investigation
  • Remediation Site
  • Perimeter Monitoring
  • Leak Detection
  • Landfill Monitoring
  • Winery Tank Entry



Specifications
Alarm Types Gas alarm Man-down Trouble
Low and high adjustable 1st – self reset

2nd – latching

 Low flow

Sensor connection

Low battery

Circuit error

Calibration failure
Sample Method Sample draw pump, flow rate 0.45 LPM, 100 foot sample range
Display Digital LCD, autobacklight, peak bar display, auto display rotation, and customize order of gases
Communication Bluetooth, IrDA
Audible Alarm 95 dB at 1 ft.
Languages English, Japanese, French, Spanish, Portuguese, Italian, German, Russian, Korean, Chinese (simplified), Chinese (traditional), Vietnamese, Slovak, Czech, Turkish, Polish
Continuous
Operation		 28 hours on Lithium-ion battery pack. Complete recharge in 6 hours.

8 hours Alkaline battery pack (3 AA size in each pack)
Operating Temp.
& Humidity		 -4°F to 122°F (-20°C ~ +50℃), 0- 95% RH non condensing
Dimensions 2.6” W x 7.9” H x 2.2” D (H200 x W68 x D56 mm)
17.6 ounce (500g) with lithium battery pack16 ounces with alkaline batteries (450g)
Case Material Dust and water resistant with IP-67 approval
(exclude sample hose and probe)
Safety Design /

Approvals

 Explosion proof: IECEx , ATEX , TIIS , cCSAus (pending)

Explosion class :Ex ia IIC T4 Ga Others: CE Marking
Standard
Features		 2 Smart sensors slots auto recognize sensor changes

Panic alarm and man down alarm

Library of over 600 VOC’s

User defined VOC list. Up to 30 frequently used

Recent VOC list for last 8 selected gases

Pump and circuit status indicators

User & station ID selection menu

Datalogging (interval, alarm trend, station and user ID)

Snap logging – on demand data logging

Demand zero / Auto zero

BUMP and CAL expiration alarm

Flashlight

LEL sensor protection mode
Standard
Accessories		 • Rubber boot • Belt clip
• Hand strap • Tapper nozzle• Probe with hydrophobic & dust filter 3’ teflon lined hose• Benzene pre-filter tubes and holder (benzene versions)
Optional
Accessories		 • SDM-6100 calibration station

• Bundles with instrument carrying case and accessories

• Flexible probes

• Up to 100 foot sample hoses

• Filter set

• IrDA cable
Warranty

Three years material (including  R sensors) and
workmanship. 2 years for IR sensors and ESS (except Cl2), One year for TE, Cl2 and PID sensors (Two months for 11.7 eV lamp)



Smart Sensors

NDIR Smart Sensors
Carbon Dioxide (CO2) NDIR 0 – 10,000 ppm 20 ppm A1: 5,000 ppm

TWA 5,000 ppm

 ± 5% of
reading or ± 2% of full scale
0 – 10.00% Vol. 0.02% A1: 0.50% Vol

A2: 3.00% Vol

A3: 3.00% Vol

STEL 3.00% Vol

TWA 0.50% Vol
Methane NDIR 0 – 100% LEL

0 – 100% Vol.

 1% LEL/
0.5% Vol		 A1: 10% LEL

A2: 50% LEL

A3: 50% LEL
Isobutane NDIR 0 – 100% LEL
0 – 30% Vol.
Smart Sensor (hot-wire semiconductor type)
Methane 0 – 5,000 ppm 10 ppm N/A
Isobutane 0 – 2,000 ppm
R Sensor (new ceramic type)
Hydrocarbons (CH4, std) 0 – 100% LEL 1% LEL A1: 10%LEL

A2: 25%LEL

A3: 50%LEL

 ± 5% of
reading or ± 2% LEL
TC Sensor (thermal conductivity)
Methane CH4 0 – 100 vol% 1% vol% N/A



Gases & Detectable Ranges

Gas Detection Range Reading Increment Alarm Set Points Accuracy
PID Sensors
10.6 Lamp 600 VOC’s 0 – 40,000 ppb 1 ppb: (< 5000 ppb)

10 ppb: (> 5,000 ppb)

 A1: 5,000 ppb

A2: 10,000 ppb

A3: 10,000 ppb

 ± 10% of reading,

± 1 digit
0 – 4,000 ppm 0.1 ppm: (< 600 ppm)
1 ppm: (> 600 ppm)		 A1: 400 ppm

A2: 1,000 ppm

A3: 1,000 ppm
10.0 Lamp Benzene Specific 0 – 50 ppm 0.01 ppm (0 ~ 10 ppm)
0.1 ppm (10 ~ 50 ppm)		 No Alarms
300 VOC’s 0 – 100 ppm 0.01 ppm (0 ~ 10 ppm)
0.1 ppm (10 ~ 100 ppm)		 A1: 5 ppm

A2: 10 ppm

A3: 10 ppm
11.7 High Voltage Lamp 0 – 1,000 ppm 0.1 ppm (0-100 ppm)

1 ppm (100-1,000 ppm)

 A1: 400 ppm

A2: 1,000 ppm

A3: 1,000 ppm
Electro Chemical R Sensor
Oxygen (O2) 0 – 40.0% Vol. 0.1% Vol. A1: 19.5 Vol.

A2: 18 Vol.

A3: 23.5 Vol.

 ± 0.5% O2
Carbon Monoxide (CO) 0 – 2,000 ppm 1 ppm A1: 25 ppm

A2: 50 ppm

A3: 1,200 ppm

TWA 25 ppm

STEL 200 ppm

 ± 5% of
reading or
± 5 ppm
Hydrogen Sulfide (H2S) 0 – 200.0 ppm 0.5 ppm A1: 5.0 ppm

A2: 30.0 ppm

A3: 100.0 ppm

TWA 1.0 ppm

STEL 5.0 ppm

 ± 5% of
reading or
± 2 ppm
Toxics (EC Sensors)
Ammonia (NH3) 0 – 400.0 ppm 0.5 ppm A1: 25 ppm

A2: 50 ppm

A3: 50 ppm

 ± 10% of
reading or ± 5% of full scale
Chlorine
(Cl2)		 0 – 10.00 ppm 0.05 ppm A1: 0.5 ppm

A2: 1.0 ppm

A3: 1.0 ppm
Hydrogen Cyanide (HCN) 0 – 15.0 ppm 0.1 ppm A1: 5 ppm

A2: 10 ppm

A3: 10 ppm
Nitrogen Dioxide (NO2) 0 – 20.00 ppm 0.05 ppm A1: 3 ppm

A2: 6 ppm

A3: 6 ppm
Phosphine (PH3) 0 – 20.00 ppm 0.01 ppm A1: 0.30 ppm

A2: 1.00 ppm

A3: 1.00 ppm
Sulfur Dioxide (SO2) 0 – 99.90 ppm 0.05 ppm A1: 2 ppm

A2: 5 ppm

A3: 5 ppm
