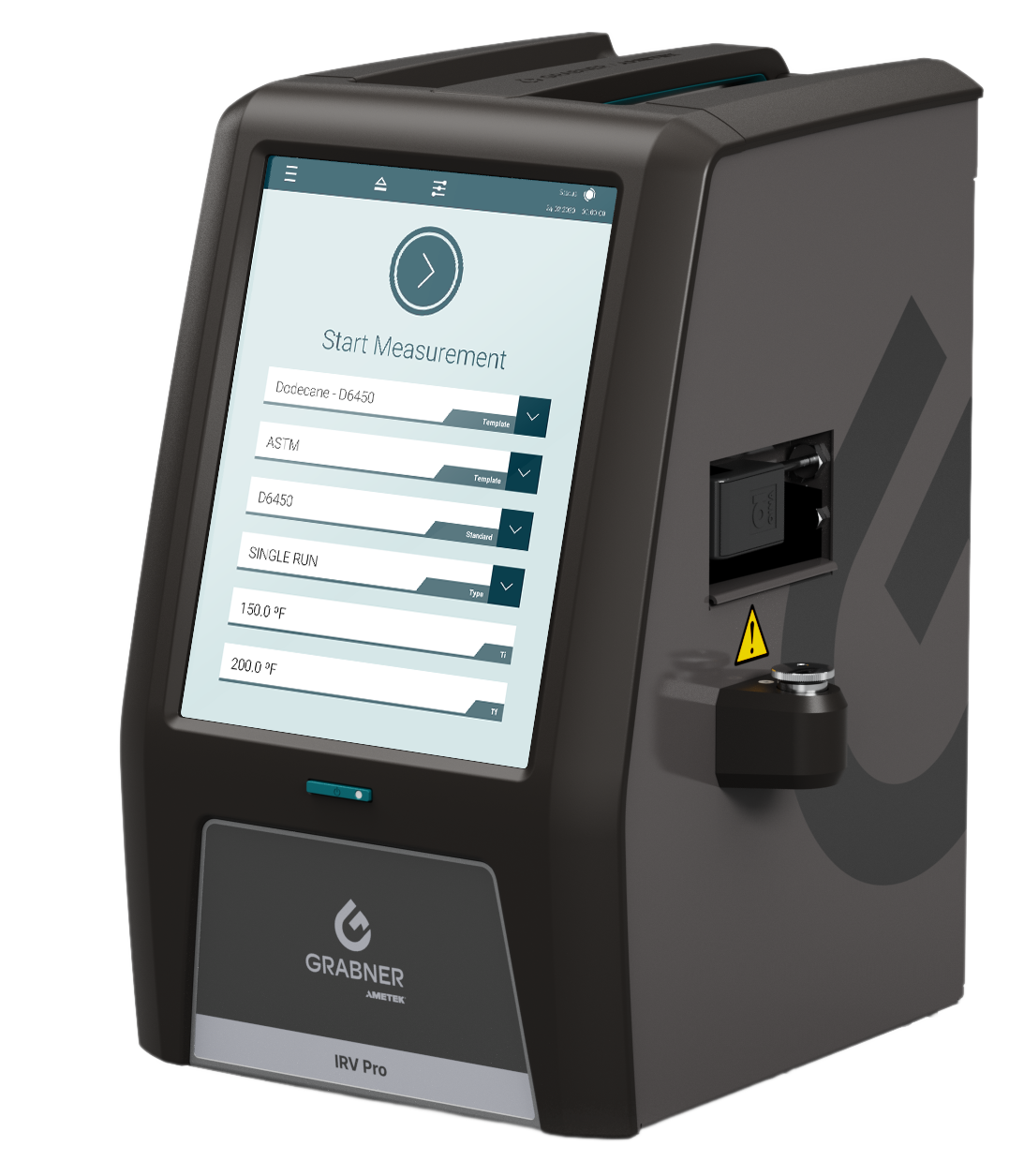

The Grabner IRV Pro is a compact, high-speed FTIR fuel analyzer for automated analysis of gasoline, jet, and diesel fuels.
Contact us for details
The Grabner IRV Pro is a compact, high-speed FTIR fuel analyzer for automated analysis of gasoline, jet, and diesel fuels. It measures over 100 preconfigured parameters for fuel blending, quality control, and specification compliance directly at the point of sale.
Compound analysis follows international standards including ASTM D5845 (oxygenates), ASTM D6277 and EN 238 (benzene), and EN 14078 (biodiesel blends). Fuel properties such as octane and cetane number, distillation, vapor pressure, and density are determined from the full IR spectrum using PLS regression and advanced chemometric models in accordance with ASTM E1655, utilizing thousands of spectral data points for high prediction accuracy. Calibration models are based on reference samples collected and analyzed by SGS®.

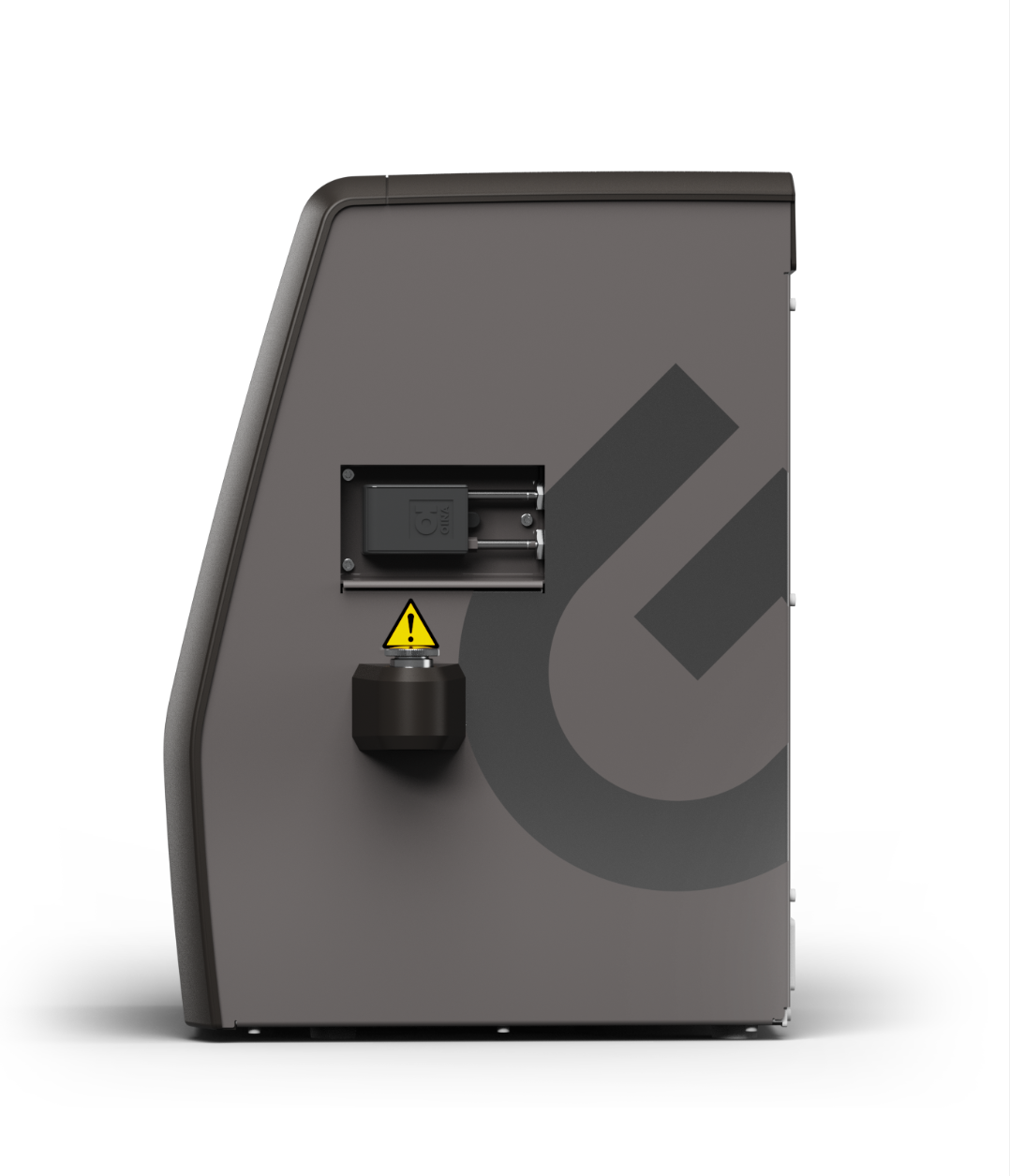

Designed for laboratory, field, and mobile use, the IRV Pro features a robust, bubble-free metal filling system, shock- and vibration-tested housing, and a self-aligning double interferometer to maintain measurement stability after mechanical stress. A 10-inch industrial touchscreen supports reliable operation in demanding environments, with optional 12 V power for in-vehicle use.
| Category |
Specification |
| Models Available | IRV Pro (Jet Fuel + Gasoline + Diesel) IRV Gasoline IRV Diesel |
| Gasoline Parameters | 70+ gasoline parameters |
| Gasoline – Octane Ratings | RON: 70–110 MON: 65–105 AKI: 67–107 |
| Gasoline – Distillation | IBP, T10, T50, T90, FBP |
| Gasoline – Evaporation | E70, E100, E150 (°C) E200, E300 (°F) |
| Gasoline – RVP & DVPE | 40–105 kPa |
| Gasoline – Density | 0–3 g/cm³ |
| Density Precision | r s.d. = ± 0.0005 g/cm³ |
| Driveability Index | Supported |
| VOC Emissions Calculator | Supported |
| Vapor Lock Index (VLI) | Supported |
| User‑Defined Parameters | Unlimited |
| Aromatics (Range) | Benzene: 0–10 m% Toluene, m/o/p‑Xylene, Ethyl/Propyl Benzene, Mesitylene, Durene, Pseudocumene, Ethyl Toluene isomers, Other Aromatics: 0–20 m% Naphthalene: 0–10 m% |
| Oxygenates (Range) | MTBE, TAME, ETBE, DIPE, Ethanol, Iso‑Propanol: 0–20 m% Methanol: 0–15 m% 2‑Butanol, tert‑Butanol, Acetone: 0–25 m% Esters & Carbonates: 0–10 m% |
| Octane Boosters | MMT/CMT: 0–10,000 mg/L Manganese (MMT): 0–2500 DCPD: 0–15 m% Nitromethane: 0–9 m% |
| Other Components | Cyclohexane: 0–100 m% |
| Anilines | Aniline, N‑Me‑Aniline, N,N‑Dimethylaniline, m/o/p‑Methylaniline: 0–5 m% |
| Total Parameters | Total Oxygen: 0–12 m% Total Aromatics: 0–80 m% Total Olefins: 0–80 m% Di‑Olefins: 0–20 m% Total Aniline / Esters: 0–5 m% |
| Diesel Parameters | 20+ diesel parameters |
| Diesel – Cetane | Cetane Number / Index: 20–80 |
| Diesel – Viscosity @40 °C | Kinematic: 0–10 mm²/s Dynamic: 0–10 mPa·s |
| Diesel – CFPP | −50 °C to +20 °C |
| Diesel – Distillation | IBP, T10/50/65/85/90/95, FBP, R250, R350 |
| Diesel – Components | Total Aromatics: 0–80 m% PNA: 0–50 m% Cetane Improver (EHN, IPN): 0–10,000 ppm Biodiesel (FAME/FAEE): 0–40 v% |
| Jet Fuel Parameters | 15+ jet fuel parameters |
| Jet – Key Properties | Flashpoint: −20 to +100 °C Freezing Point: −80 to +20 °C Viscosity @−20 °C: 0–10 mm²/s |
| Jet – Distillation | IBP, T10/50/90/95, FBP, E10/50, R200 |
| Jet – Additional Properties | Smoke Point: 0–1000 mm Total Aromatics: 0–40 m% Naphthalenes: 0–5 m% MSEP: 60–100 % |
| Jet – Biodiesel | FAME: 0–0.12 m% |
| Spectrometer | 2+1 Cell FTIR |
| Density Measurement | Oscillating U‑Tube Cell |
| Warm‑Up / Scan Time | < 30 s / 40 s (multiple scans) |
| Units of Measurement | v%, m% |
| Touchscreen | 10″ industrial‑grade full‑color touchscreen |
| Interfaces | 2× USB, 2× LAN |
| Power Supply | 100–264 V AC, 47–63 Hz, 130 W DC adapter for 12 V vehicle |
| Dimensions / Weight | 293 × 390 × 280 mm (10.5 × 15.4 × 11 in.) 12 kg (26 lb) |
| Standards Compliance | ASTM D1655, D5845, D6277, D7777, D7806, EN 238, EN 14078, ISO 15212 |
| Correlations To | ASTM D56, D86, D323, D445, D1319, D2699, D2700, ISO 3104, EN 116, EN 13016 |
| Options & Accessories | Precision‑engineered 12‑position autosampler |
ASTM D56
Standard Test Method for Flash Point by Tag Closed Cup Tester
ASTM D86
Standard Test Method for Distillation of Petroleum Products at Atmospheric Pressure
ASTM D323
Standard Test Method for Vapor Pressure of Petroleum Products (Reid Method)
ASTM D445
Standard Test Method for Kinematic Viscosity of Transparent and Opaque Liquids (and Calculation of Dynamic Viscosity)
ASTM D613
Standard Test Method for Cetane Number of Diesel Fuel Oil
ASTM D975
Standard Specification for Diesel Fuel Oils
ASTM D976
Standard Test Method for Calculated Cetane Index of Distillate Fuels
ASTM D1319
Standard Test Method for Hydrocarbon Types in Liquid Petroleum Products by Fluorescent Indicator Adsorption
ASTM D1322
Standard Test Method for Smoke Point of Kerosine and Aviation Turbine Fuel
ASTM D1840
Standard Test Method for Naphthalene Hydrocarbons in Aviation Turbine Fuels by Ultraviolet Spectrophotometry
ASTM D2386
Standard Test Method for Freezing Point of Aviation Fuels
ASTM D2699
Standard Test Method for Research Octane Number of Spark-Ignition Engine Fuel
ASTM D2700
Standard Test Method for Motor Octane Number of Spark-Ignition Engine Fuel
ASTM D3948
Standard Test Method for Determining Water Separation Characteristics of Aviation Turbine Fuels by Portable Separometer
ASTM D4814
Standard Specification for Automotive Spark-Ignition Engine Fuel
ASTM D5191
Standard Test Method for Vapor Pressure of Petroleum Products (Mini Method)
ASTM D5845
Standard Test Method for Determination of MTBE, ETBE, TAME, DIPE, Methanol, Ethanol and tert-Butanol in Gasoline by Infrared Spectroscopy
ASTM D6277
Standard Test Method for Determination of Benzene in Spark-Ignition Engine Fuels Using Mid Infrared Spectroscopy
ASTM D6371
Diesel and domestic heating fuels – Determination of cold filter plugging point
ASTM D6378
Standard Test Method for Determination of Vapor Pressure (VPx) of Petroleum Products, Hydrocarbons, and Hydrocarbon-Oxygenate Mixtures (Triple Expansion Method)
ASTM D6379
Standard Test Method for Determination of Aromatic Hydrocarbon Types in Aviation Fuels and Petroleum Distillates—High Performance Liquid Chromatography Method with Refractive Index Detection
ASTM D7153
Standard Test Method for Hydrocarbon Types in Liquid Petroleum Products by Fluorescent Indicator Adsorption (Automatic Laser Method)
ASTM D7170
Standard Test Method for Determination of Derived Cetane Number (DCN) of Diesel Fuel Oils—Fixed Range Injection Period, Constant Volume Combustion Chamber Method
ASTM D7344
Standard Test Method for Distillation of Petroleum Products at Atmospheric Pressure (Mini Method)
ASTM D7777
Standard Test Method for Density, Relative Density, or API Gravity of Liquid Petroleum by Portable Digital Density Meter
ASTM D7806
Standard Test Method for Determination of the Fatty Acid Methyl Ester (FAME) Content of a Blend of Biodiesel and Petroleum-Based Diesel Fuel Oil Using Mid-Infrared Spectroscopy
ASTM E1655
Standard Practices for Infrared Multivariate Quantitative Analysis
EN 116
Diesel and domestic heating fuels – Determination of cold filter plugging point
EN 590
Automotive fuels – Diesel – Requirements and test methods
EN 228
Automotive fuels – Unleaded petrol – Requirements and test methods
EN 238
Liquid petroleum products – Petrol – Determination of the benzene content by infrared spectrometry
EN13016-1+2
PART 1: Liquid petroleum products – Vapour pressure – Part 1: Determination of air saturated vapour pressure (ASVP) and calculated dry vapour pressure equivalent (DVPE)
PART 2: Liquid petroleum products – Vapour pressure – Part 2: Determination of absolute pressure(AVP) between 40 °C and 100 °C
EN 14078
Liquid petroleum products – Determination of fatty methyl ester (FAME) content in middle distillates – Infrared spectrometry method
EN 16144
Liquid petroleum products – Determination of ignition delay and derived cetane number (DCN) of middle distillate fuels – Fixed range injection period, constant volume combustion chamber method
IP 123
Petroleum Products – Determination of distillation characteristics at atmospheric pressure
IP 559
Determination Of Density Of Middle Distillate Fuels – Hand Held Oscillating U-tube Density Meter Method
ISO 3104
Standard Practice for Calculating Viscosity Index From Kinematic Viscosity at 40 and 100°C
EN ISO 3405
Petroleum products — Determination of distillation characteristics at atmospheric pressure
EN ISO 5163
Petroleum products — Determination of knock characteristics of motor and aviation fuels — Motor method
EN ISO 5164
Petroleum products — Determination of knock characteristics of motor fuels — Research method
EN ISO 5165
Petroleum products – Determination of the ignition quality of diesel fuels – Cetane engine method
ISO 15212-1
Oscillation-type density meters – Part 1: Laboratory instruments.
