Description

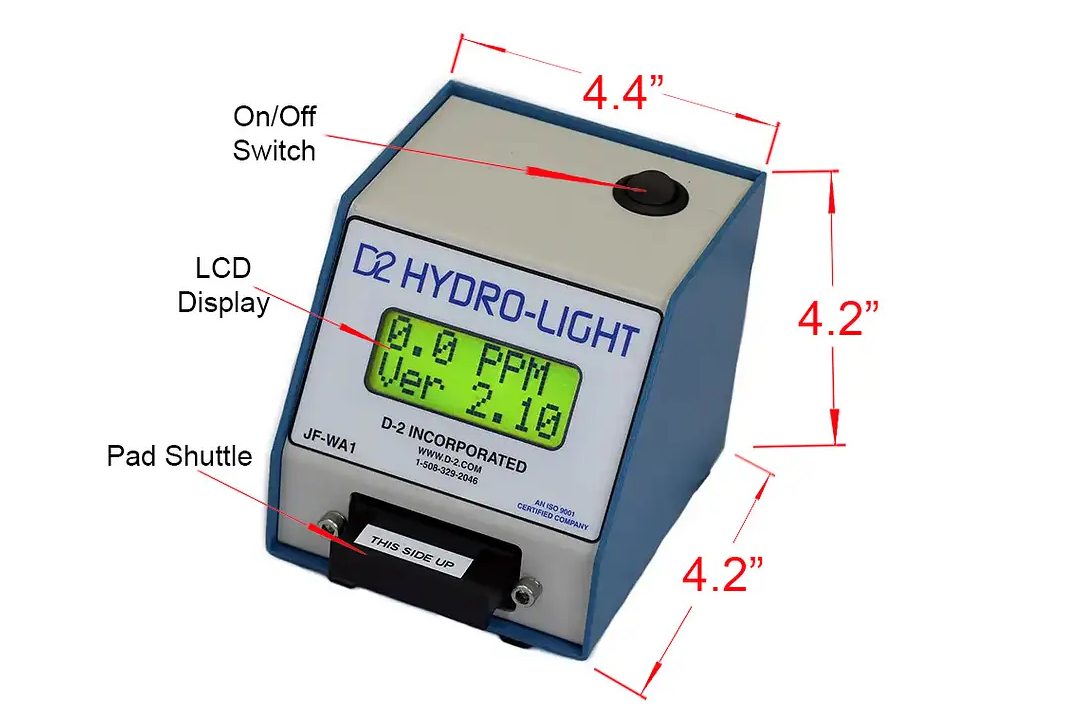

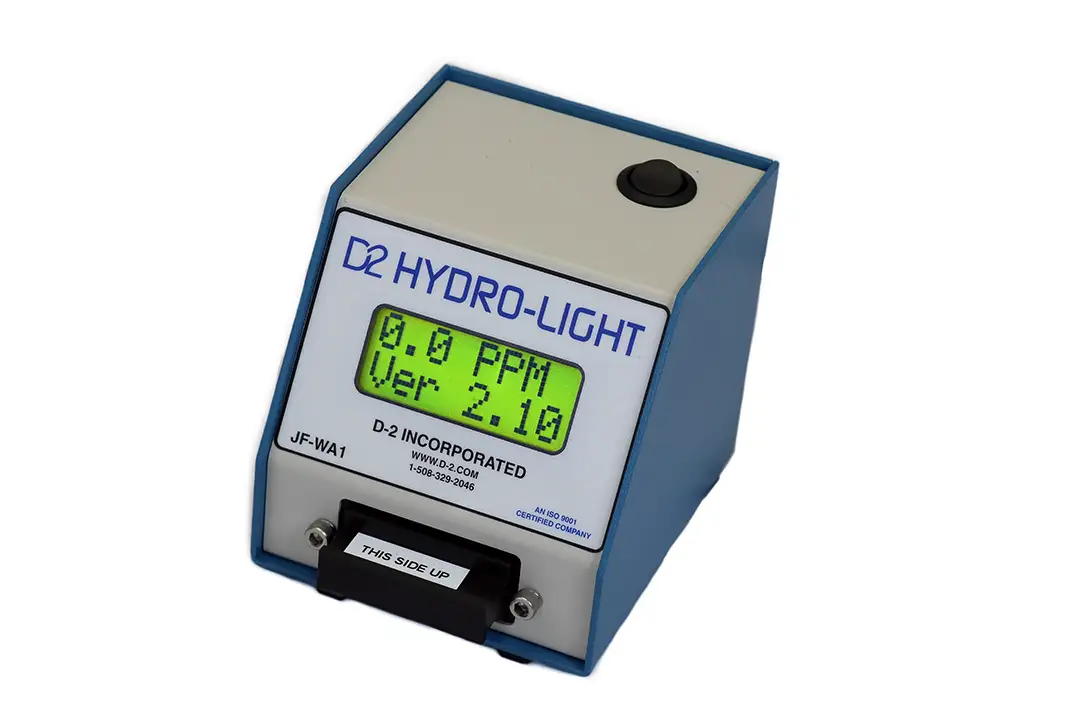

D-2 Inc. is pleased to introduce the JF-WA1 Hydro-Light ASTM D3240 Digital Free Water Detector for Jet Fuel. This device revolutionizes testing free water in aviation fuel. Hydro-Light provides results efficiently with an easy one step measurement process. Just put the pad on the slide, put the slide in the machine and read the digital display, which displays the free water content of the fuel up to 50 PPM. This box is used to run the ASTM Test Method D3240. The Hydro-Light improves the accuracy and reliability of the ASTM D3240 test method by removing human error and providing digital results.

Hydro-Light ASTM D3240 NSN Versions:

The JF-WA1 comes in three versions. The commercial version available to the public is the JF-WA1, the version set up for the US Navy, with a NSN 6640-01-642-9285 is the JF-WA1-N; and the third version set up for the US Air Force NSN 6640-01-680-6773 and is the JF-WA1-AF, a new designation exists for the Marines under JF-WA1-M.

JF-WA1 Hydro-Light ASTM D3240 Ten Year Calibration Cycle Option Now Available

Higher Stability Shuttle now allows for a ten-year calibration cycle for the JF-WA1 Hydro-Light ASTM D3240. Have an older JF-WA1? We can upgrade your unit to use the new High Stability Verification pads. This allows your Hydro-Light to be used in the field for up to ten years without having to be sent back for recalibration.

Image on Left shows the new High Stability Verification Shuttle

JF-WA1 Hydro-Light & JF-WA1-N NSN:6640-01-642-9285 & JF-WA1-AF NSN 6640-01-680-6773

Free Water Measurement of Aviation Turbine Kerosene Hydro-Light ASTM D3240

Free Water in jet fuel is a major problem throughout the industry. Ensuring this free water does not get by your filters and into the aircraft is essential to all airport operations. D-2 Incorporated developed a new free water detector, the JF-WA1 Hydro-Light with an improved user interface, repeatability, reproducibility of testing results for undissolved aka free water in fuel and more.

The JF-WA1 Hydro-Light is a new undissolved water (free water) detector. This device is now listed in ASTM D3240 and has improved the accuracy and repeatability of the method dramatically. The Hydro-Light’s main advantage is the ease of use. The features that the Hydro-Light offers only include: Digital Readout, 0-50 ppm range, free calibration verification shuttle, and USB Data Output. The Hydro-Light has available accessories, including a carrying case and a portable battery for field use. The JF-WA1 Hydro-Light uses the standard 25mm pads in the ASTM D3240 method.

Hydro-Light ASTM D3240 Features:

• No User Training Required
• Simplicity, just put the pad in the slide, put the slide in the box and read the number, no manually adjusting the reading
• Extremely durable, easy to use, suited the design to small lab environments or field use.
• Increased Accuracy, +/- 0.5 PPM Accuracy
• Digital Readout in PPM within 3 seconds
• Power through USB Port, allowing use of portable USB batteries for field work
• Uses an LED Light, which eliminates the need for replacements
• No Battery replacements, one power source for entire device
• No User Calibration Required
• The Hydro-Light also comes with a high and low standard verification shuttle, allows field verification of calibration within ten seconds.
• Highest Precision for any instrument listed in ASTM Test Method D3240.
• Worldwide Support from an ISO 9001:2008 Certified Precision Industrial Sensor Manufacturer, specializing in Fuel Measurement.

Methods:

ASTM D3240

ASTM D7566, ASTM D1655

NSN 6640-01-642-9285

NSN 6640-01-680-6773
