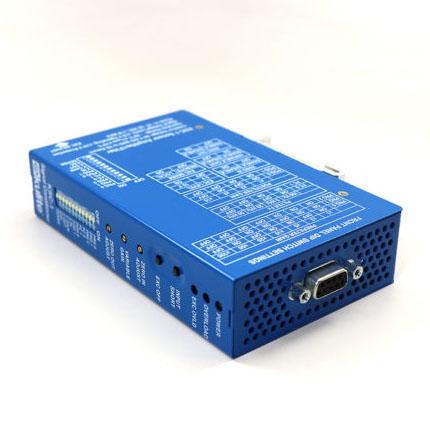

KSC-1 Single Channel Precision Amplifier/Filter

• Single-channel module, DIN rail mountable • 0.1% DC accuracy • 4-pole low-pass filters with four selectable cutoffs (BU4: 100 Hz, 5 kHz, 25 kHz and 50 kHz) (BE4: 5 kHz, 25 kHz, 50 kHz and 100 kHz) • Multi-turn potentiometers (with defeat mode) for precise bridge suppression, gain and amplifier offset • Constant voltage […]

  • SKU : H-362-KSC-1
Ask us about this item

• Single-channel module, DIN rail mountable
• 0.1% DC accuracy
• 4-pole low-pass filters with four selectable cutoffs
(BU4: 100 Hz, 5 kHz, 25 kHz and 50 kHz)
(BE4: 5 kHz, 25 kHz, 50 kHz and 100 kHz)
• Multi-turn potentiometers (with defeat mode) for precise bridge suppression, gain and amplifier offset
• Constant voltage excitation with remote sense
• Selectable excitation: 0, 5, 10 V with calibration potentiometer
• Manual bridge balance/suppress
• Balanced differential input
• 10 nV/√Hz maximum input noise
• Pre-filter gain: x1, 2, 5, 10, 20, 50, 100
• Post-filter gain: x1, 2, 5, 10
• Variable gain for adjustment from 90 to 110% of output
• Input and output overload detection
• Input short via momentary switch or remote
• Zero excitation via momentary switch or remote
• 5th wire buffered output
• Compact, rugged design for industrial use
• DIN rail mounting option
• 3.1 x 1.2 x 5.2 inches (LxWxH)
• 11.5 oz. net
• 0° C to 70° C (operating); –40° C to 105° C (storage)
• 1 ea. 9-pin female D-Sub for transducer interface and
signal input
• 1 ea. 9-pin male D-Sub for power in and signal out
• 10 – 32 V DC power input, 3 W max

The KSC-1 is part of the Kulite signal conditioning product family optimized specifically for the Kulite sensor products. The KSC-1 is an industrial grade precision amplifier/filter with constant voltage excitation optimized for conditioning Kulite pressure sensors and microphone products in lab, test stands or industrial environments. Precise excitation with remote sense provides voltage for bridge type sensors. Excitation levels of 5 or 10 V are selectable via front panel switches. Manual balance/zero multi-turn potentiometers are provided for transducer balance and offset adjustment.
A low-noise, high common-mode rejection balanced differential input is supplied. Precision 4-pole Butterworth or Bessel low-pass filter options are available with four selectable cutoff frequency settings. Amplification is distributed as pre and postfilter gain, allowing for elimination of out-of-band energy such as transducer resonances that can cause non-linearities due to clipping of the amplifier. Overload detectors alert the user to output overloads as well as prefilter overloads that may be masked by the low-pass filter.

The KSC-1 may be mounted on a standard DIN rail with supplied clip. The module is powered using an external 10 to 32 VDC input.
