Features

• Continuous Sensing and Display:
  Provides real-time measurements in Krebs units, grams, and centipoise, allowing for immediate analysis of sample consistency.
• Magnetic Spindle Coupling:
  Enables quick and secure attachment and removal of spindles, streamlining the testing process.
• Rapid Sample Measurement:
  Quickly determine the required consistency of your samples, improving efficiency in the testing process.
• LED Digital Display:
  Offers high-resolution readings with increments of 0.1 KU, 1 gram, and centipoise (cP), ensuring precise and accurate data.
• Expanded Measurement Range:
  Covers a wide range of measurements from 40 to 141 KU, 32 to 1099 grams, and 27 to 5274 cP, making it versatile for various applications.
• High Accuracy:
  Delivers accuracy to ±1% of the full-scale range, ensuring reliable and consistent results.
• Exceptional Reproducibility:
  Achieve reproducibility to ±0.5% of the full-scale range, providing confidence in repeated measurements.
• User-Friendly Operation:
  Eliminates the need for weights, simplifying an established test procedure and making it easy to use for all skill levels.
• Industry Specification Compliance:
  Fully compatible with ASTM D562, ensuring adherence to industry standards.
• Versatile Base Design:
  Accommodates standard pint, ½ pint, and quart cans, providing flexibility in sample container sizes.
• Optional Paste Spindle:
  Suitable for testing high consistency materials, such as roller mill pastes, expanding the instrument’s versatility.
• NIST Traceable Viscosity Standards Available:
  Ensure your measurements are accurate and compliant with industry standards.

How it Works

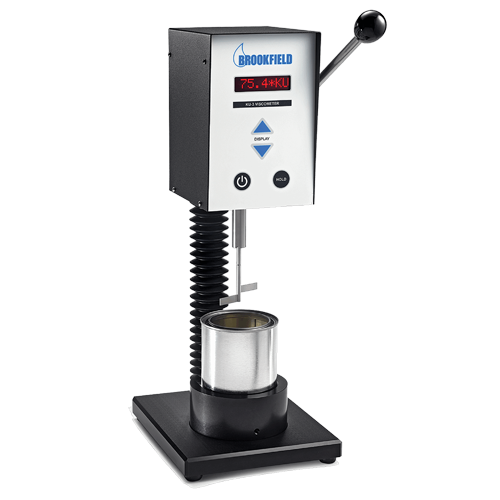

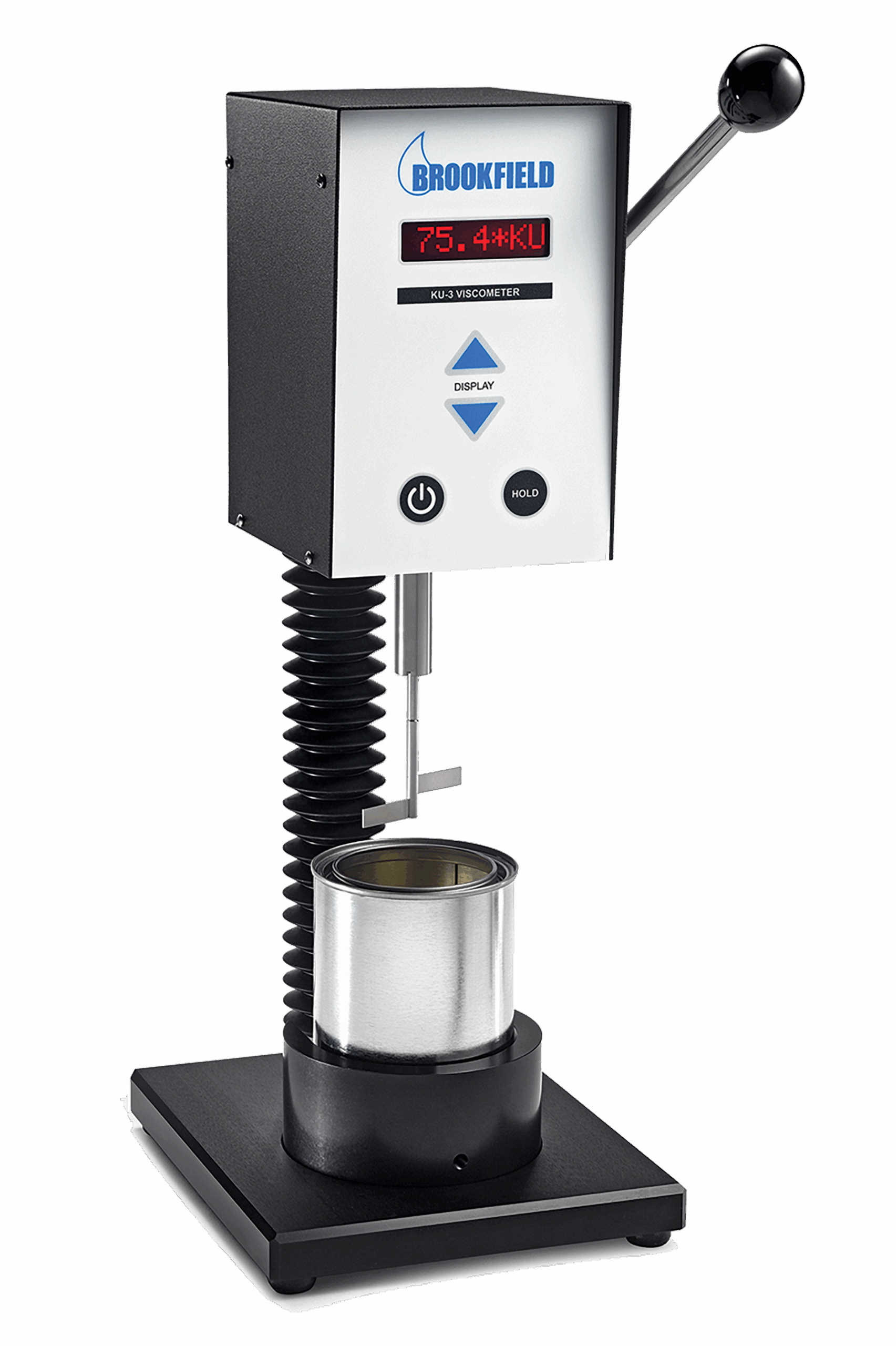

The KU-3 Viscometer operates by measuring the resistance of a spindle rotating in the sample fluid, held in standard paint industry cans. The spindle’s resistance is converted into a reading in Krebs units, grams, and centipoise, allowing for accurate and repeatable measurements. The instrument’s lever offers two positions:

• Up: Spindle stationary, drive motor off
• Down: Spindle rotating, sample being measured

A HOLD switch is available to lock in the test results, which can then be compared across the different measurement units.

APPLICATIONS

• Paints
• Coatings
• Adhesives
• Inks
• Pastes

Why Choose the KU-3 Viscometer?

• Accuracy and Reliability:
  With an accuracy of ±1.0% and reproducibility of ±0.5% of the full-scale range, the KU-3 ensures consistent and precise results.
• Ease of Use:
  The digital display and magnetic spindle coupling make the KU-3 Viscometer straightforward to operate, reducing setup time and operator error.
• Industry Standard Compliance:
  Fully compatible with ASTM D562, the KU-3 is the go-to instrument for professionals in the paint, coatings, and ink industries.

What’s Included

• Instrument: KU-3 Viscometer
• Krebs Spindle: Standard Krebs-type spindle (KU-1030)
• Can Adapters: Adapter for pint and half-pint cans (base holds quart cans without an adapter)

Specifications

• Measurement Range:
  • 40 – 141 KU
  • 32 – 1,099 g
  • 27 – 5,274 cP*
• Accuracy: ±1% of full-scale range
• Repeatability: ±0.5% of full-scale range
• Paddle Speed: 200 rpm ± 0.1 rpm
• Net Weight: 18 lb. (8.2 kg)
• Gross Weight: 22.5 lb. (10.2 kg)
• Dimensions: 21 x 12 x 17 in (Carton)
• Operating Environment:
  • Temperature: 0°C (32°F) to 40°C (104°F)
  • Humidity: 0% – 80% R.H., non-condensing atmosphere
• Ingress Protection Rating: IP20

* Centipoise scale is for reference only.  Do not use for calibration.

Related Accessories

• Paste Spindle (KU-1031): For high consistency materials like roller mill pastes.
• Krebs Viscometer Oil Fluids: For calibration and verification of accuracy.
