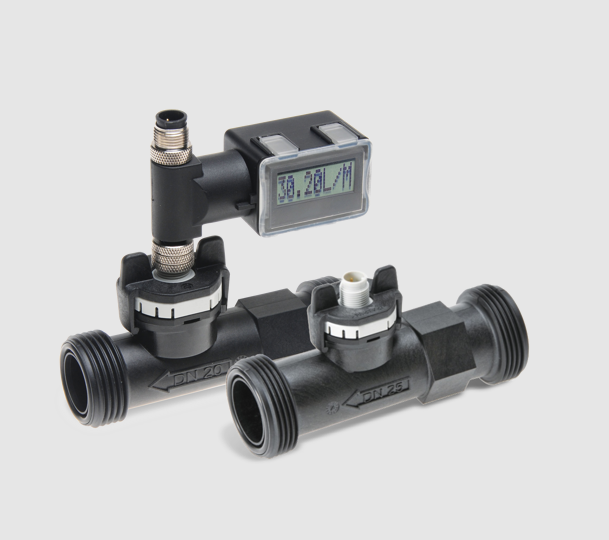

LIQUI-VIEW Base
Vortex flow meter for water-like liquids

The LIQUI-VIEW Base series Vortex flow meters is designed for monitoring the flow or consumption of low viscosity, water-like liquids, such as cleansing water, cooling water, and spa  water. Thanks to its IP65 protection rating and the possibility to use it for dirty water, these flow meters can be found in several industrial applications.

Technical specifications

• Type Of Media – liquids water-like
• Flow measuring principle – Vortex
• Series range – For 0…150 l/min
• Accuracy – < 2% RD (≥ 50% FS) – < 1% FS (< 50% FS)
• Max. Pressure bar(g) – 12
• Fluid Temperature – < 125 °C
• Ingress Protection – IP65

LIQUI-VIEW Base models

The LIQUI-VIEW Base models are the smart and lightweight Vortex meter for monitoring low viscosity and water-like liquids. The instruments are a cost-effective solution for monitoring
the flow or consumption of cleansing water, cooling water or spa water.
