In-line Mass Flow Meter/Controller for industrial gases

Technical specifications

• Type Of Media -almost all gases and gas-mixes, compatible with chosen materials
• Flow measuring principle – Thermal
• Series range – For 0.01 – 10000 ln/min
• Accuracy – ±1.0% Rd plus ±0.5% FS
• Repeatability – < ±0.2% FS
• Max. Pressure bar(g) – 20
• Operating Temperature – 0…+50°C
• Ingress Protection – IP65

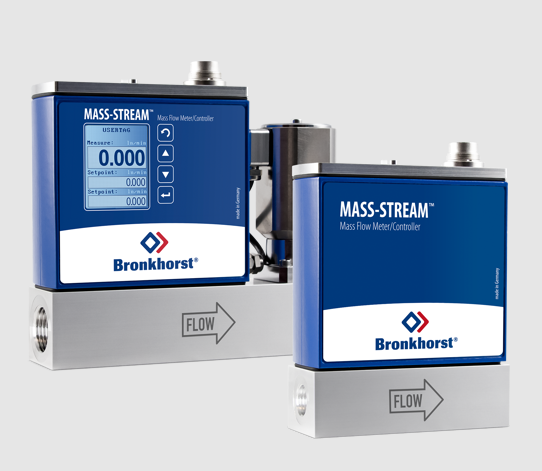

MASS-STREAM models

For a gas flow instrument that is less affected by humidity and contamination, consider the MASS-STREAM series. The MASS-STREAM has several models to choose from, with or
without a display.
