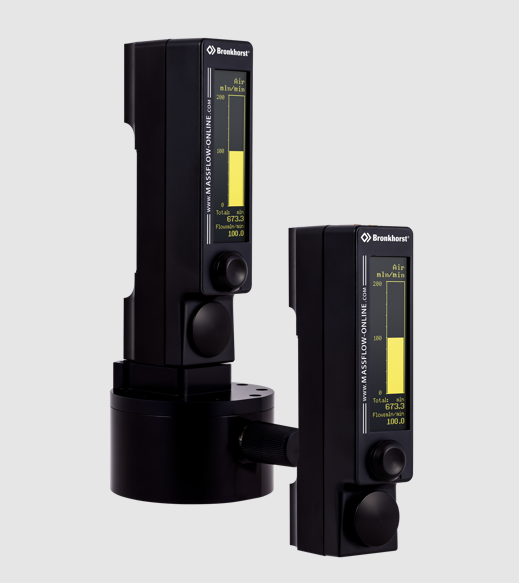

MASS-VIEW

Digital VA Flow Meter/Controller for gases

The MASS-VIEW flow meter series are the digital alternative to the conventional variable area meters or purge meters. This instrument is available in our online store and can be delivered from stock. The instruments have a digital display.

Technical specifications

• Type Of Media – Any clean and dry gas, filter recommended
• Flow measuring principle – Thermal
• Series range – For 0.2 – 500 ln/min
• Accuracy – ±2% Rd for flow > 50% of max. capacity; ±(1% Rd + 0.5% FS) on lower flows
• Repeatability – <0.2% FS typical
• Max. Pressure bar(g) – 10
• Operating Temperature – 0…50 °C (32…122 °F)
• Ingress Protection – IP40

Where is the MASS-VIEW used?

• Flow and pressure controllers for chemical reactor systems
