Micasense RedEdge-P DUAL – RENTAL

Get high-resolution images similar to those captured by Landsat and Sentinel satellites.

Contact us for details
Description

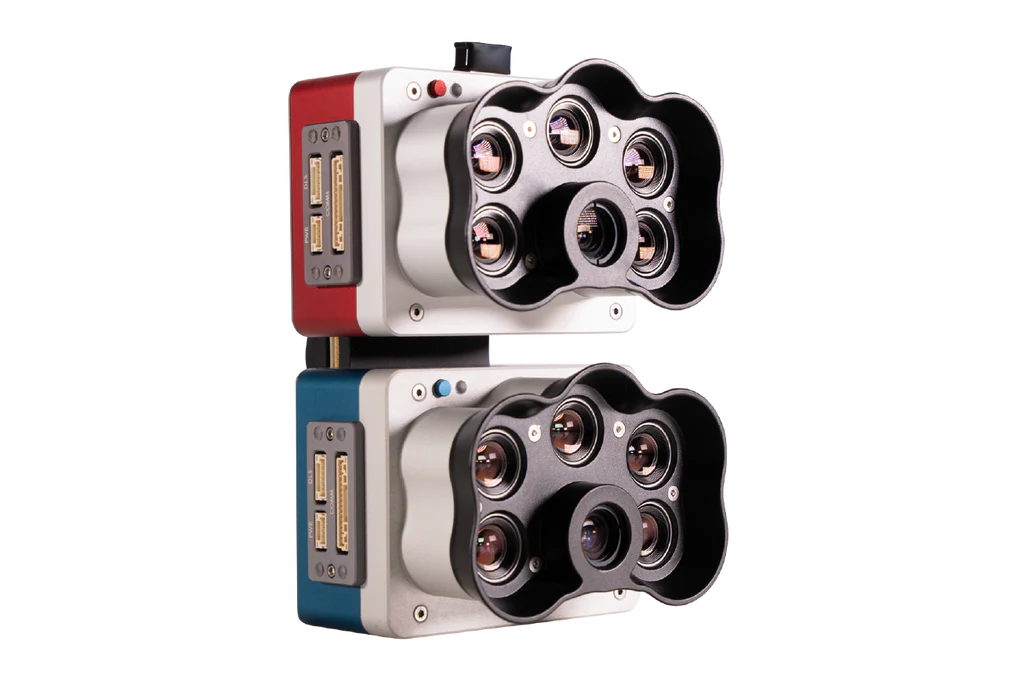

Rededge-P Dual Micasense

Payload Weight (In grams) At 120m AGL, GSD of Number of Bands Capture Rate of
745 g 7.7 CM 10 3 Per Second



Features
  • The Micasense RedEdge-P DUAL has 10 multispectral bands, each with a resolution of 1.6 megapixels.
  • It utilizes pan-sharpening technology to achieve a high spatial resolution of  2 cm or 0.8 inches per pixel.
  • The device also features a coastal blue band that can analyze water vegetation and identify weeds.
  • It has a double radiometric calibration system that uses a light sensor and calibration reflectance panel to ensure reliable data even in varying light conditions.
  • All 10 lenses have a global shutter for distortion-free image capture, and the device’s narrow bands provide enhanced data accuracy.
  • With a fast capture rate of 3 raw DNG images per second, the device can synchronize the capture of all 10 bands and automatically trigger and geotag images for efficient flight times and easy post-processing.



Benefits
  • Get high-resolution images similar to those captured by Landsat and Sentinel satellites.
  • Monitor shallow water areas using the coastal blue band.
  • Analyze chlorophyll efficiency in detail and detect weeds.
  • Carry out dependable time-series analysis even in different lighting conditions.
  • Utilize machine learning and AI techniques to perform early-stage crop counting.
  • Produce unseen insights through various outputs and indices, including RGB, NDVI, NDRE, OSAVI, NIT, CIR, and DSM.
  • Use existing equipment, such as DJI Matrice 300 and a variety of post-processing and flight planning software.



Made in The USA

MicaSense series sensors are manufactured in the U.S. (NDAA compliant) and employed at academic, private and government institutions worldwide since 2014.



Correlate drone and satellite data

The RedEdge-P dual bands cover Landsat 8 and Sentinel-2 satellite bands (~10 m / 32 ft per pixel) at an enhanced spatial resolution of 2 cm / 0.8 in. It enables the use of many indices already created using satellites.



Perform AI applications

The RedEdge-P dual‘s panchromatic band enables high-resolution RGB and multispectral imagery for machine learning applications, such as early-stage crop counting.



Rededge P dual kit



Specifications

Weight: 745 g / 26.2 oz (two sensors, mounting h Weight ardware, DLS2, and cable)

Dimensions: 13.2 cm x 8.8 cm x 9.67 cm / 5.1 in x 3.1 in x 3.5 in

External power: 7.0 V – 25.2 V

Power input: 11/14.0/20W (standby, average, peak)

Spectral bands: Coastal blue 444(28)*, Blue 475(32), Green 531(14)*, Green 560(27), Red 650(16)*, Red 668(14), Red Edge 705(10)*, Red Edge 717(12), Near-IR 740(18)*, Near-IR 842(57)

RGB output: 5.1 MP** (global shutter, aligned with all bands)

Sensor Resolution: 1456 x 1088 (1.6 MP per multispectral band)

2464 x 2056 (5.1 MP panchromatic band)

Ground sample distance

7.7 cm / 3 in per pixel (per multispectral band) at 120 m / ~400 ft AGL

3.98 cm / 1.5 in per pixel (panchromatic band) at 120 m / ~400 ft AGL

Capture rate: Up to 3 images per second raw DNG

Storage: CFexpress card

Interfaces: Three configurable GPIO: select from trigger input, PPS input, PPS output, and top of frame signals. Host virtual button. USB 2.0 port for WiFi. Serial. 10/100/1000 Ethernet.

Field of view: 50° HFOV x 38° VFOV (multispectral), 44° HFOV x 38° VFOV (panchromatic)

Heat: Ambient without airflow: 0-40 °C / 0-104 °F. Ambient with airflow >0.5 meter per second / >1.1 mph: 0-50 °C / 0-122 °F

IP rating: IP4X
