Description

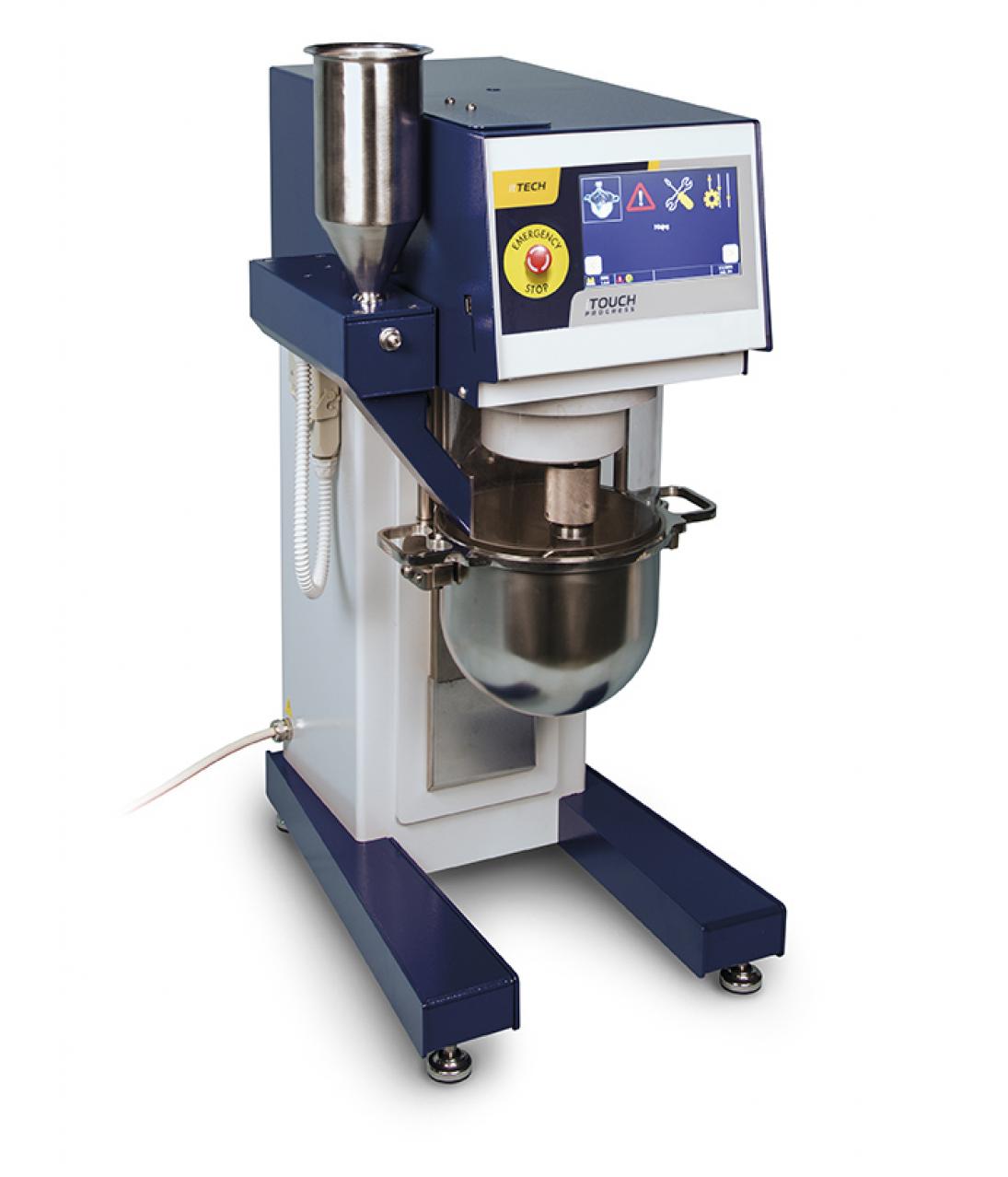

AUTOMATIC PROGRAMMABLE COMPUTERIZED MORTAR MIXER HIGH-PERFORMANCE

Mixmatic has an extremely sturdy fabricated frame for intensive laboratory use. Complete with a stainless steel polished beater, mixing bowl and automatic sand dispensers having dimensions and geometry to grant the correct sand insertion, without residual and disaggregation between fine and coarse portions. Dispenser for additives (see accessory mod. E092-05). Dispenser for automatic water addition (see accessory mod. E092-06).

Power supply: 230V 50-60Hz 1ph
Dimensions: 580x570x830 mm
Weight: 85 kg approx.

Main Features

• Rugged design
• Planetary transmission for silent and low maintenance operation.
• Transparent CE-conform protection of the mixing area, to allow the mixture to look during the test.
• Digitally controlled rotation speed.
• Easy and fast bowl insertion and removal.
• Safety system of bowl presence and correct position to avoid dangerous working, with double sensor of removed bowl with load/unload sequential discrimination.
• Emergency stop button.

Firmware:

• Different automatic programmable mixing cycles conforming to the a.m. Standards.
• Possibility to program up to 30 automatic personalized mixing cycles, easy to set through Touch Screen.
• Synchronised acoustic signals with cycle steps.
• An electronic control unit that runs like a standard PC based on the Windows operating system for the management and analysis of the data, test results, and graphs. Unlimited memory storage through the USB port.
• Rotational motor fed through the inverter to grant the max. precision of the rotational speed, adjustable by the operator on the display.
• Possibility of the manual mixing cycle.
• Possibility to select different languages.
• Detailed indication of all the times (elapsed from the test start, residual to end test, elapsed from and test and bowl removal), state of cycle development with analogue bar, speed, active phase (sand, water), test state (correct execution or test interruption with lost results), type of current test.
• 7” TFT graphic display, 800×480 pixels, touch screen.

• EN 196-1
• EN 413-2
• EN 459-2
• DIN 1164-5
• DIN 1164-7
• ASTM C305
• AASHTO T162
• EN 196-3
• EN 480-1
• ASTM C451
• ASTM C359
• ISO 679
