Mounting Studs
|
 |
6152 Mounting Stud Adapter |
Mounting stud, 5/16–24 to 10–32, 8.89 mm long, beryllium jordan |
 |
6157 Mounting Stud |
Mounting stud, 6–32 to 10–32, 12.7 mm long, stainless steel |
 |
6160 Mounting Stud |
Mounting stud, 10–32 to 10–32, 10.16 mm long, stainless steel |
 |

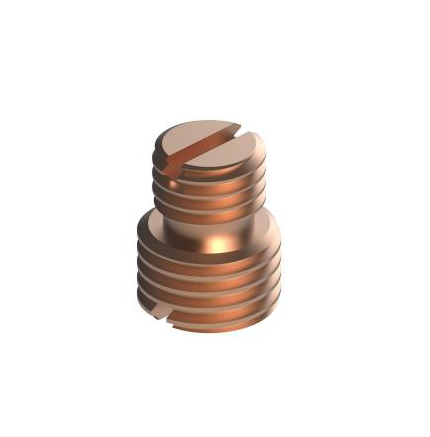

6161 Mounting Stud |
Mounting stud, 1/4–28 to M8, 10.16 mm long, beryllium copper
|
 |
6523 Mounting Screw |
Mounting screw, 1/4–28 thread, 27.18 mm long, stainless steel |
 |

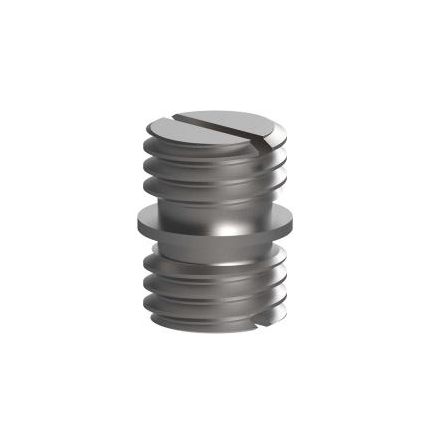

6176 Mounting Stud |
Mounting stud, 1/4–28 to 1/4–28, 8.687 mm long, stainless steel |
 |
6200 Series |
6200 Mounting stud, 10–32 to 10–32, 6.86 mm long, beryllium copper
6200SMounting stud, 10–32 to 10–32, 0.27 inches long, stainless steel
|
 |
6201 Series |
6201Mounting stud, 10–32 to 1/4–28, 7.37 mm long, beryllium copper
6201SMounting stud, 10–32 to 1/4–28, 7.37 mm long, stainless steel
|
 |
6202 Mounting Stud |
Mounting stud, 10–32 to M5, 7.37 mm long, beryllium copper |
 |
6203 Mounting Stud |
Mounting stud, 10–32 to M6, 7.37 mm long, beryllium copper |
 |
6204 Mounting Stud |
Mounting stud, 1/4–28 to 1/4–28, 9.65 mm, beryllium copper |
 |
6220 Isolated Mounting Stud |
Isolated mounting stud, 10–32 tapped hole to 10–32 stud, 8.89 mm long, stainless steel |
 |
6249 Mounting Stud |
Mounting stud, 10–32 to 6–32, 7.11 mm long, beryllium copper |
 |
6307 Mounting Stud |
Mounting stud, 4–40 to 10–32, 7.21 mm long, beryllium copper |
 |
6343 Mounting Stud |
Mounting stud, 10–32 to M3, 5.08 mm long, beryllium copper |
 |
6359 Mounting Stud |
Isolated mounting stud, isolated, 2X 4–40 UNC–2A, 5.33 mm long, inconel |
 |
6538 Mounting Stud |
Mounting stud, 5–40 to M3, 0.25 inches long, beryllium copper |
 |

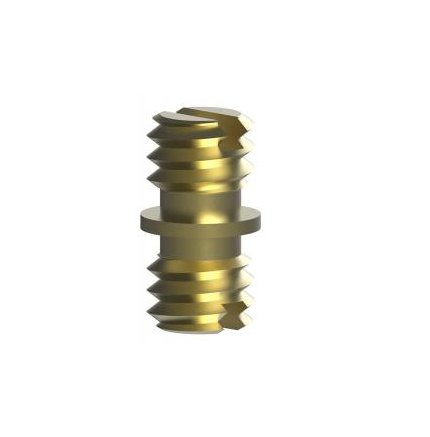

6580 Mounting Stud |
Mounting stud, 5–40 to 5–40, 6.35 mm long, beryllium copper |
 |
6677 Rotational Mounting Stud |
10–32 mounting base, 1/4–28 mounting stud, 15.87 mm hex nut, stainless steel, 13 grams |
 |
6682 Isolated Mounting Stud |
Isolated mounting stud, 2X 10–32 UNF, 3.05 mm long, Inconel™ alloy |
 |
6691 Mounting Stud |
Mounting stud, 1/4–28 to M6, 9.65 mm long, beryllium copper |
 |
6766 Mounting Stud |
Mounting stud, 10–32 UNF to M6, 10.16 mm long, stainless steel |
 |
6912 Mounting Stud |
Mounting stud, M3 to M3, beryllium copper |
 |
6984 Mounting Stud |
Mounting stud, 4–40 to M3, 0.25 inches long, stainless steel |
