The PCT40 contains everything that is needed to perform a range of single-loop process control experiments in conjunction with a PC.
Contact us for details
The PCT40 contains everything that is needed to perform a range of single-loop process control experiments in conjunction with a PC.

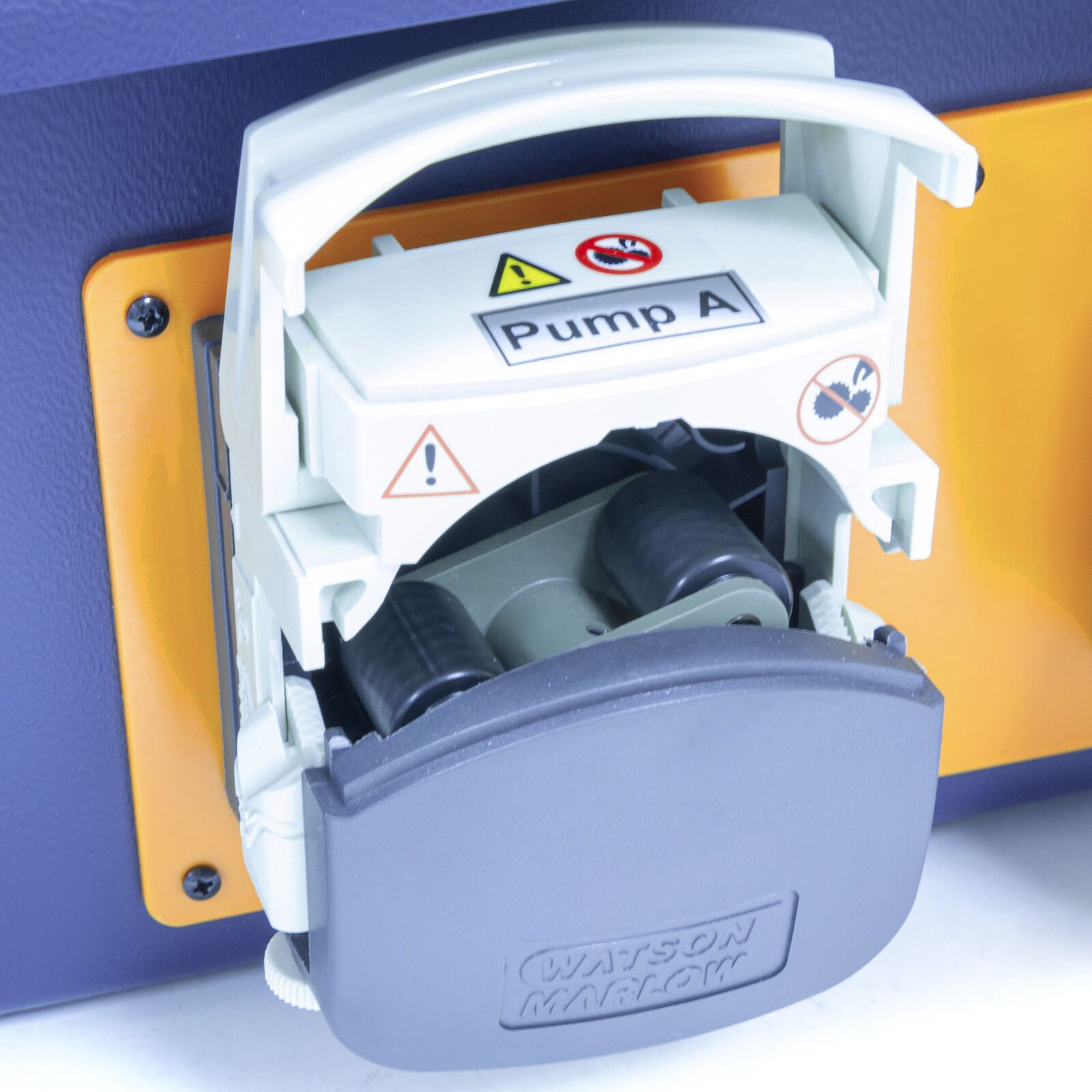

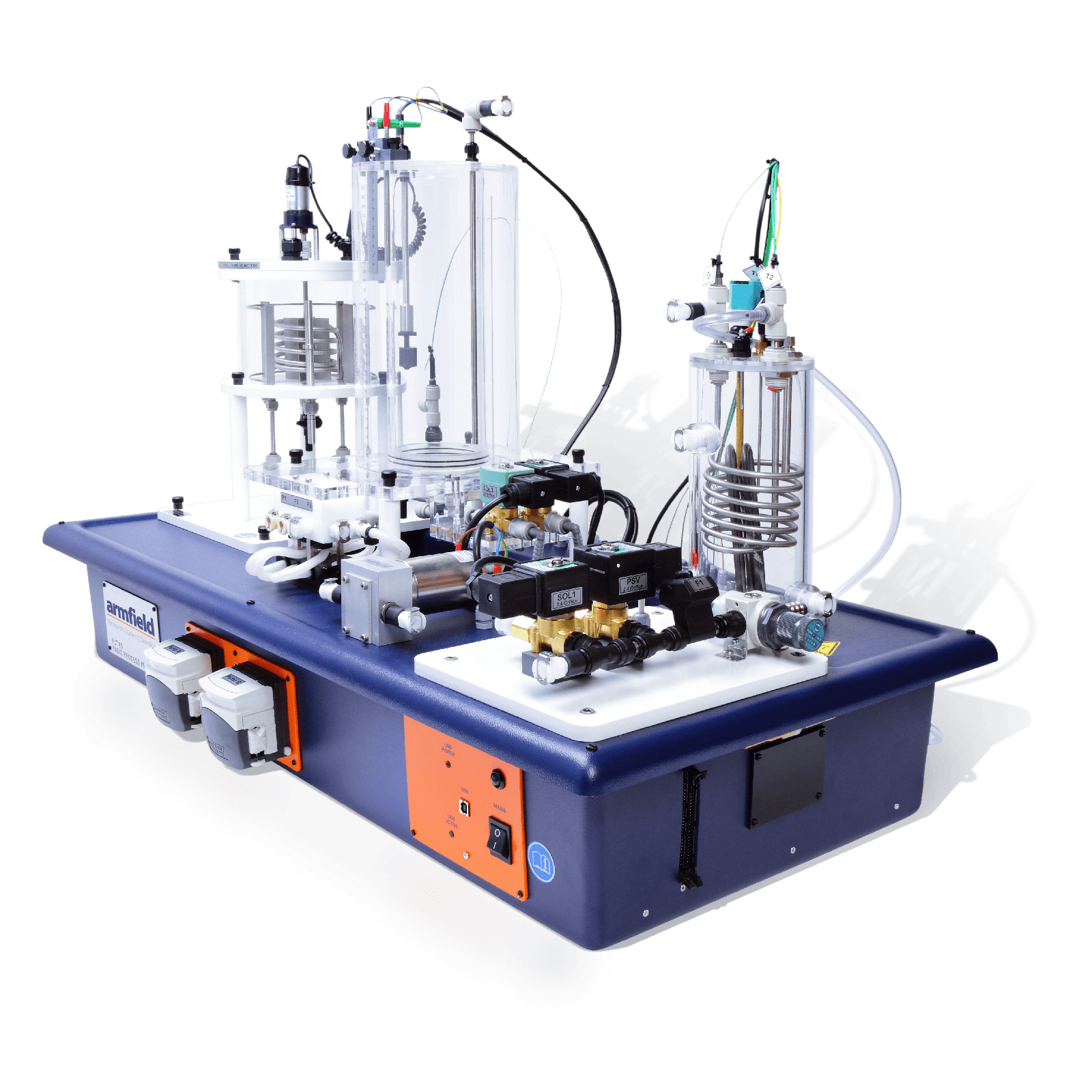

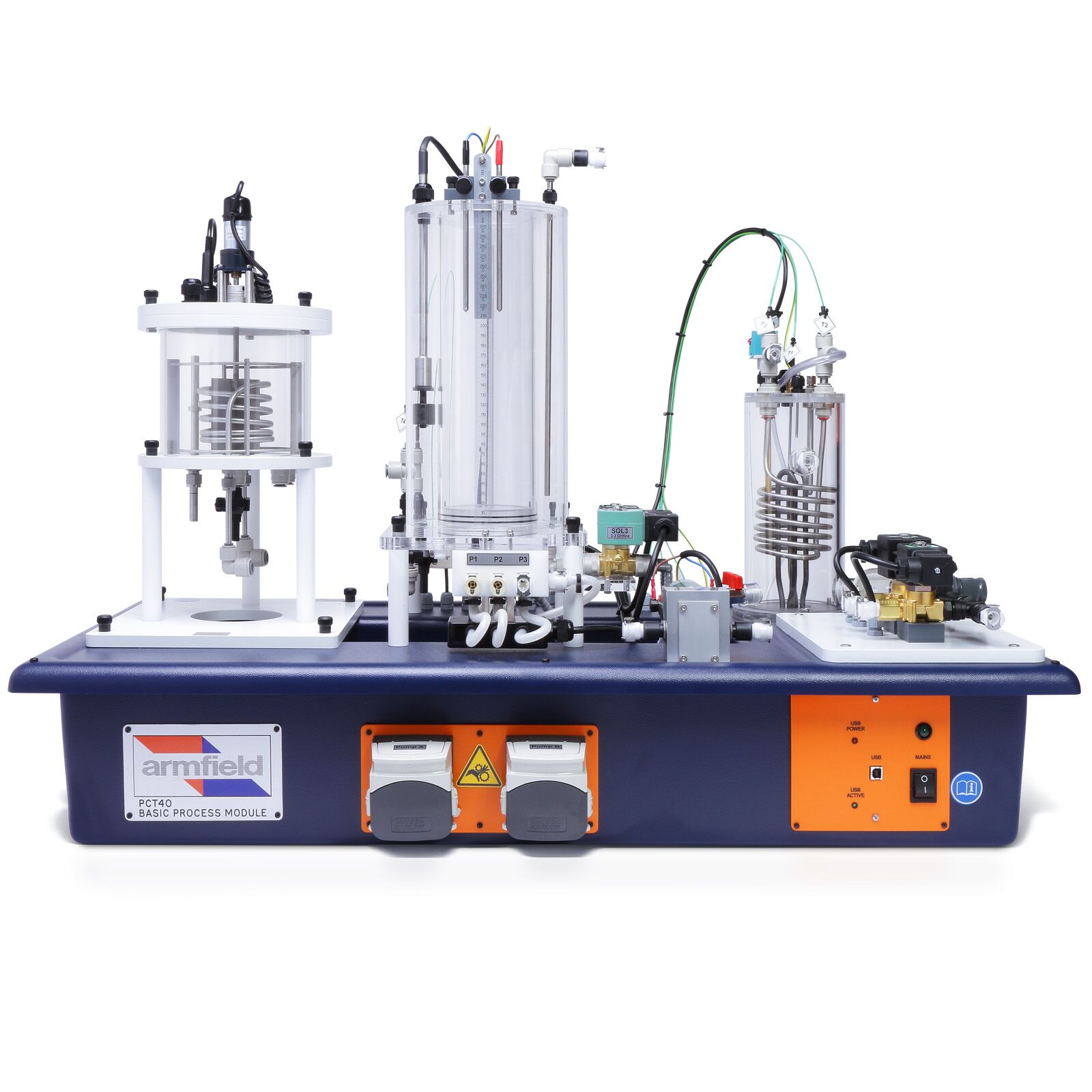

It includes a variable volume process tank, a hot water tank with electric heater and indirect heating/cooling coil, a hot water pump, two non-dedicated pumps, three on/off solenoid valves and a proportioning valve. The instrumentation includes temperature sensors, two differential water pressure sensors, a mechanical level sensor (float switch) and an electronic level sensor (conductivity). The inlets and outlets of the various pumps, valves and tanks incorporate self-sealing quick release fittings. This enables the configuration to be quickly changed, offering a wide variety of different loops.

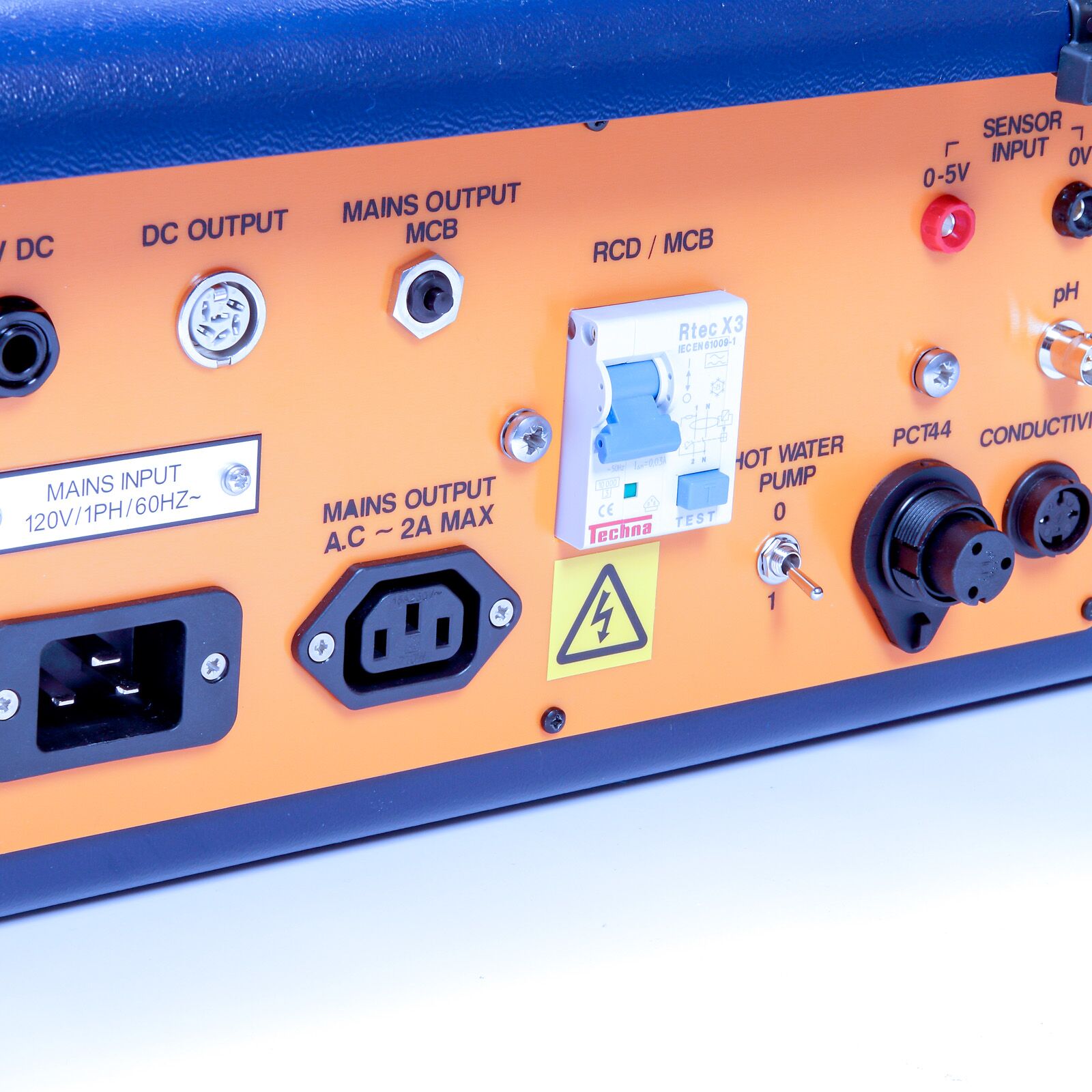

The PCT40 includes a computer interface (USB), and all of the parameters can be controlled directly from the computer, (i.e. the pump speeds, the valve positions and the heater power). The computer also displays the readings from the various measurement sensors.
The software supplied with the unit includes on/off, time proportioned and proportional/integral/derivative (PID) algorithms where all the parameters are easily accessed and adjusted by the user. This approach means that a separate electronic console is unnecessary for most applications.
The flexible nature of the system also enables a wide variety of different disturbances to be applied to the loops to permit the effectiveness of the control parameters to be compared. As all these disturbances are under software control, they can be repeated precisely during the optimisation process, thus enabling an excellent degree of fine-tuning to be implemented.
A pressure regulating valve with filter is also included to isolate the equipment from fluctuations in the water supply pressure.
The type of loops achievable with the basic PCT40 include:
(All these loops are under software control)
The PCT41 extends the capability of the basic PCT40 by adding an additional process vessel, complete with a heating/cooling coil and a stirrer. The inputs and outputs incorporate quick release fittings, enabling the PCT41 to be added quickly and easily.
The PCT41 also includes a conductivity probe to enable cost-effective fluid property demonstrations to be performed.
The addition of the process vessel enables more complex process control problems to be addressed, including remote set point demonstrations. Again these all take place with the repeatability advantages that electronic and software control brings.
Additional loops that can be implemented with the PCT41 include:
Remote set point control:
(All these loops are under software control)
The PCT41 includes a conductivity probe as part of the basic supply. This conductivity probe can be used to demonstrate fluid property control systems without the maintenance problems, which can be experienced with pH probes. However, as pH control is probably the most common industrial application of this type of control system, users may wish to implement true pH control loops. This can easily be implemented by adding the PCT42 pH Sensor Accessory to the combined PCT40 + PCT41 systems.

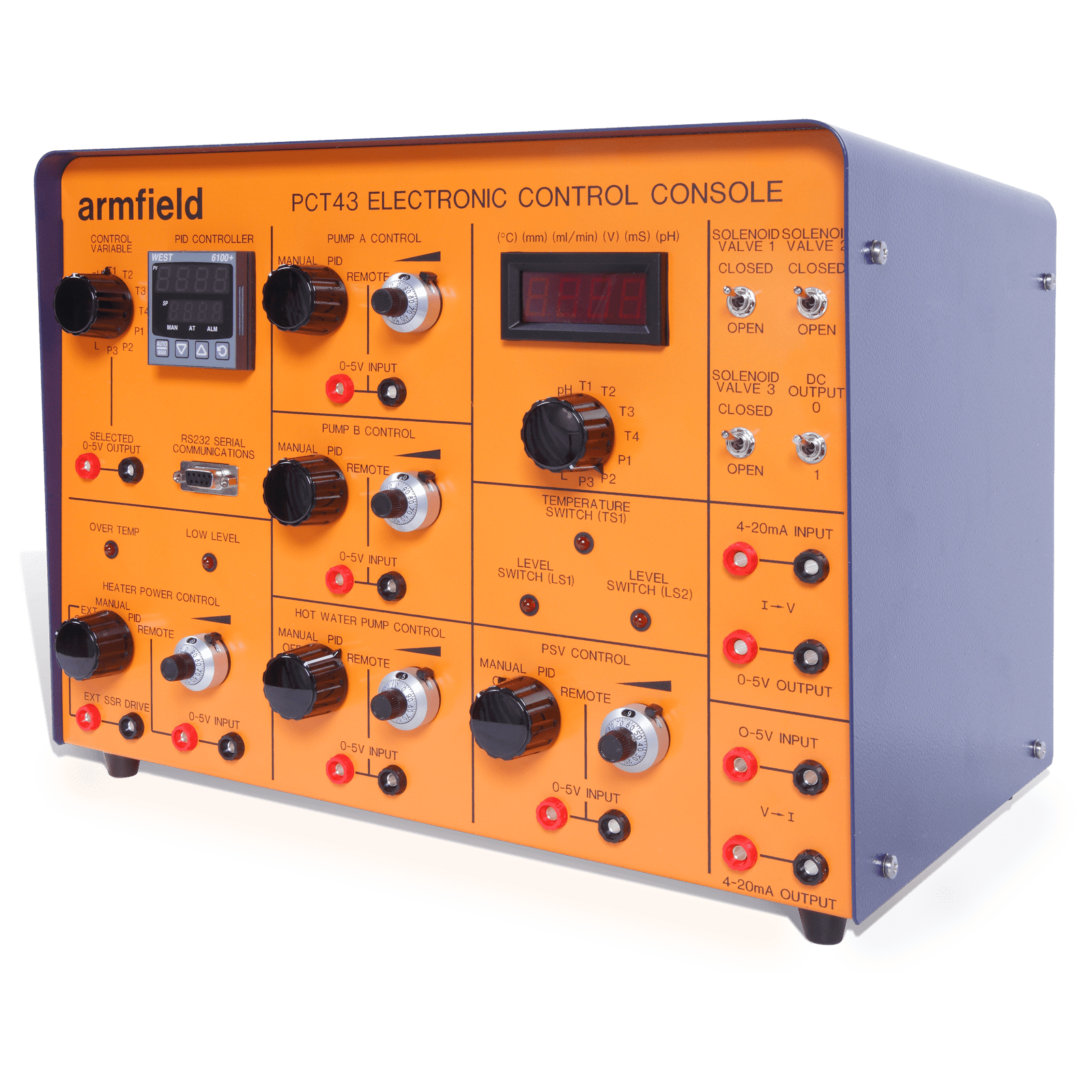

The PCT43 is an electronic console that can be used to control the PCT40 (+PCT41/42) instead of a computer. It includes controls for the pumps, valves and heater, plus a display for the sensors. It incorporates a commercial PID controller, complete with RS232 interface. Other facilities include four 20mA interfaces and selector switches to enable many of the different configurations to be implemented without using external jumper connections.
The PCT43 enables all of the PCT40 and PCT41 single-loop configurations to be implemented without using a computer. Using this console also enables the sensor data to be logged and displayed on a computer (using the PCT40 USB interface), but with the control functions being implemented in the PCT43 hardware, rather than the computer software.
Facilities include:

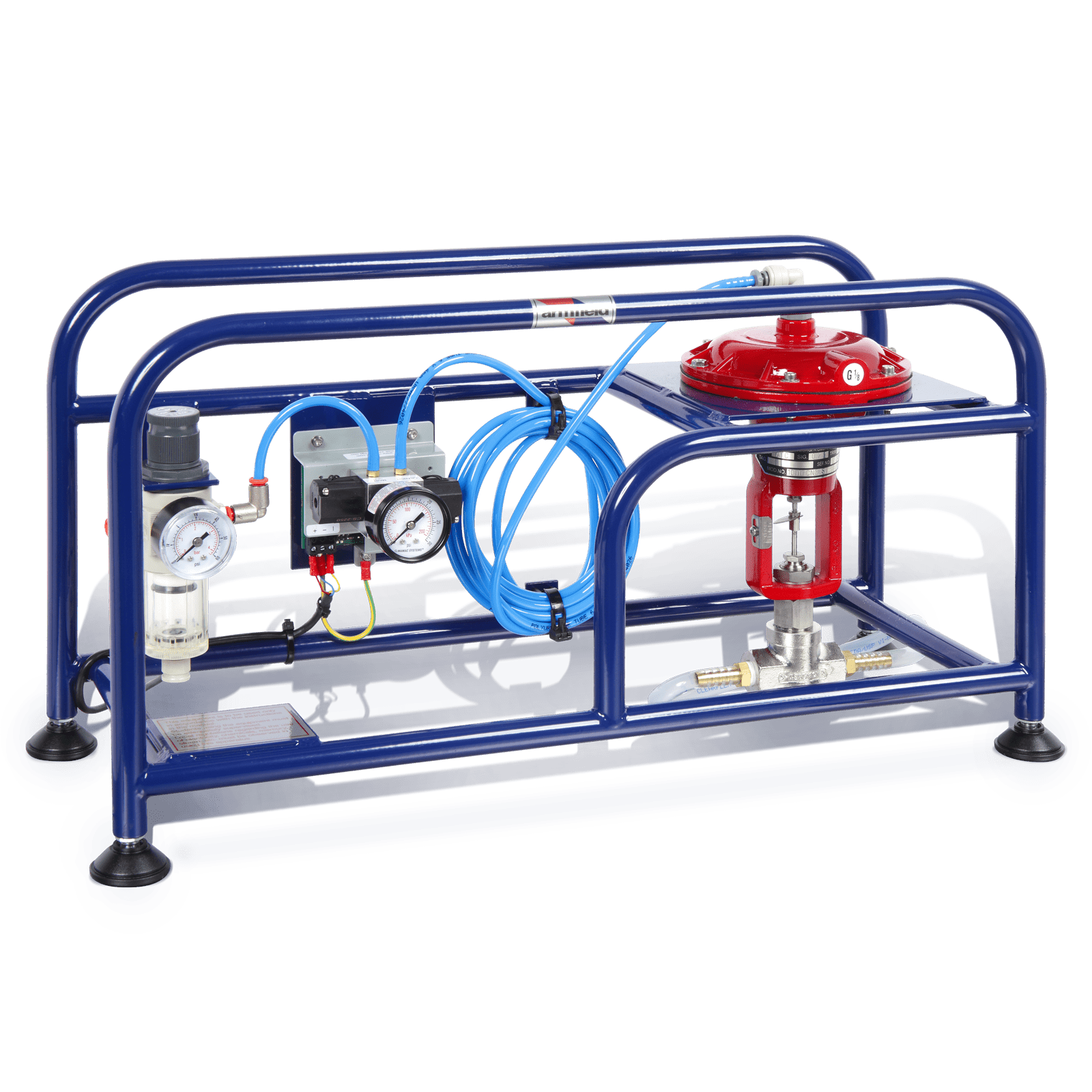

The PCT44 is a pneumatic control valve, plus associated components, for use with the PCT40/41 system. Retaining the flexible concept of the whole range, it can be plumbed into many of the flow control loops, and provides a good illustration of pneumatic valve technology.
Note: This accessory requires a compressed air supply
The system is supplied with a complete educational software package with a wide range of facilities and functions. For most applications the computer is the primary interface between the user and the equipment.
The software displays real-time process mimic diagrams, with readings of the relevant sensor outputs, and controls for the system inputs. The on/off, time proportioned and PID control algorithms are accessible through ‘pop-up’ control boxes, which give the user access to all the key control parameters, including the proportional band, the integral time and the derivative effect.
The software is supplied with detailed mimic diagrams, and full instructional help texts for ten predetermined student exercises when using PCT40 and an additional four exercises when using PCT41. These predetermined strategies have been carefully chosen to illustrate a wide range of the system capability and possible control strategies, ie level, flow, temperature, pressure, fluid characteristics, single PID loops, cascade and multiple loops, remote setpoints, etc. However, because of the flexibility of the system, many more control situations are configurable than it is possible to provide predefined student exercises for. Because of this, Armfield have included a user configurable option with the software, which enables the full range of capability from the system to be explored. This is particularly useful for student project work.
Whichever configuration is being used, the software provides powerful data logging and graph plotting facilities, together with sensor calibrations and a wide variety of display and data export options.
The computer communicates to the PCT40 using a standard universal serial bus (USB) interface.
When used with the PCT43, the software also provides a simple SCADA demonstration. The process is controlled using the PID controller in the PCT43, but the P, I & D values can be accessed and varied by the computer, using the RS232 interface. At the same time the status of the process can be displayed on the computer by using the USB interface for data logging only.
Universal Software Interface
For users who wish to write their own software, eg in Matlab or LabVIEW™, full instructions are given for communications with the PCT40 via its built in USB interface. Advanced users are also given the facility to include their own process control algorithm, written in a suitable language such as C++. This is useful for exploring advanced and non-linear control systems.
It is possible to control the PCT40/41 loops using external PLC devices or PID controllers. These can be connected directly to the PCT40 for specific configurations. However, with the PCT43 electronic console it becomes very easy to connect up the inputs and outputs to enable a range of loops to be demonstrated.
PCT23MkII Process Plant Trainer
The PCT23MkII is a bench top process plant trainer used extensively in undergraduate engineering education and for training plant supervisors and operators.
It uses an industrial HTST pasteurisation plant to demonstrate a complete range of process control methods and strategies as used in industry.
The trainer incorporates an industrial style three stage plate heat exchanger with chevron plates for increased turbulence and efficiency. A conductivity sensor enables concentration measurement.
Mains electrical supply:
110 to 240 V, 50 or 60 Hz
(Note, the units are supplied with¬ IEC leads to suit European and UK 230V, 50Hz outlets and USA 115V, 60 Hz outlets.)
PC computer with 2 spare USB ports (not supplied by Armfield) or external controller (PCT54 or PCT55)
Requires:
Single Phase Electrical supply:
Personal computer or PCT43
Cold water supply (1.5 l/min at 2 bar)
Requires: PCT40
Requires: PCT40 and PCT41
Requires: PCT40
Requires: PCT40
And a clean supply of compressed air of at least 21psi
PCT40 Basic Process Control System
Length: 1.0m
Width: 0.54m
Height: 0.7m
PCT41 Process Vessel Accessory
Length: 0.3m
Width: 0.25m
Height: 0.45m
PCT42 pH Sensor Accessory
Length: 0.012m
Width: 0.012m
Height: 0.12m
PCT43 Electronic Console
Length: 0.365m
Width: 0.27m
Height: 0.275m
PCT44 Pneumatic Valve Module Accessory
Length: 0.35m
Width: 0.35m
Height: 0.4m
