Product Description

Developed for professionals who need fast, accurate, and actionable insights, the Penetrologger helps to eliminate guesswork in soil compaction testing.

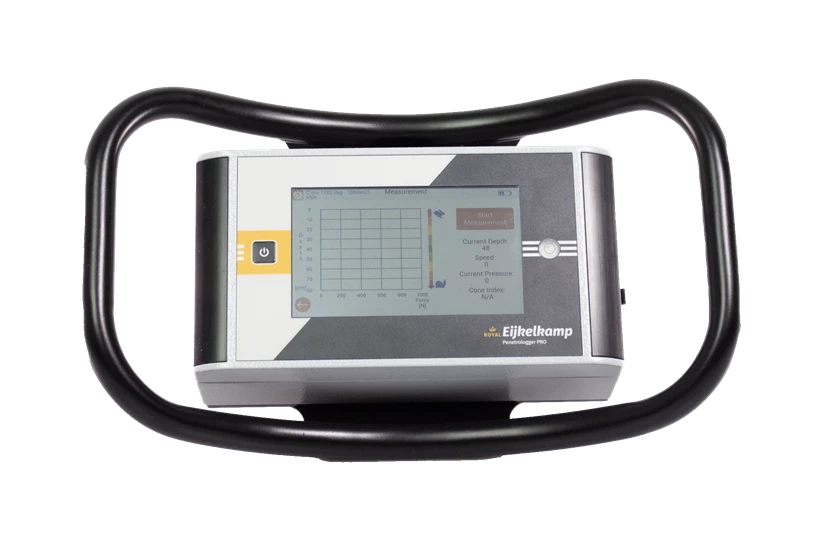

The Penetrologger PRO is lightweight and easy to use. Its housing has an ergonomic design with a protection rate of IP54. The 5 inch high quality colour LCD screen can be operated with gloves and is readable in demanding outside conditions.

The Penetrologger PRO supports Cone Index (CI) measurements.

Key features

• Digital data logging with GPS location
• Optional soil moisture sensor
• Measurement in megapascals (MPa), Newtons (N), PSI, and California Bearing Ratio (CBR)*
• Durable, maintenance-free design for field reliability
• Seamless data integration into existing workflows using the PenetroPROviewer application

Discover the full set of features in the brochure above.

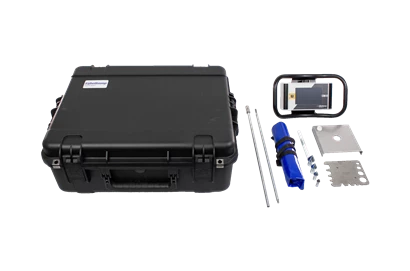

Set contents

• Case Set Penetrologger PRO
• Penetrologger PRO
• Cone, base area 1 cm², 60 °
• Cone, base area 2 cm², 60 °
• Cone, base area 3 1/3 cm², 60 °
• Cone, 5 cm², 60 °
• Probing rod (cone 1 cm²) Ø 8 mm
• Probing rod (cones 2 cm² – 5 cm²) Ø 10 mm
• Inspection jig for cones
• Depth reference plate
• Penetrologger PRO tool kit
• USB-C to USB-C cable, 1 m
• Penetrologger PRO User manual

Options

• Soil moisture sensor set
• CBR Cone kit

* Our CBR value is an indication. It needs to be validated through an external CBR test.

Software

Special Royal Eijkelkamp PenetroPROviewer software has been developed for use with our new Penetrologger PRO.

You need the CP210x Windows Drivers for the Penetrologger PRO USB connection.

The old Penetrologger works with the Penetroviewer Software V6.08(via WeTransfer)

Specifications
