Description

PEAK Kit aka Petroleum Expeditionary Analysis Kit is a mobile fuel lab for aviation kerosene in hardened water proof carrying cases compliant to ATPD-2424A. The case is waterproof and drop tested, and all the equipment can work from -30°C to 50°C and this was tested rigorously and certified by Southwest Research. This mobile kit can certify fuel safe for use in aircraft to land on US Aircraft Carriers and for US Army Aviation Turbine Kerosene aka as Jet Fuel use across many platforms.

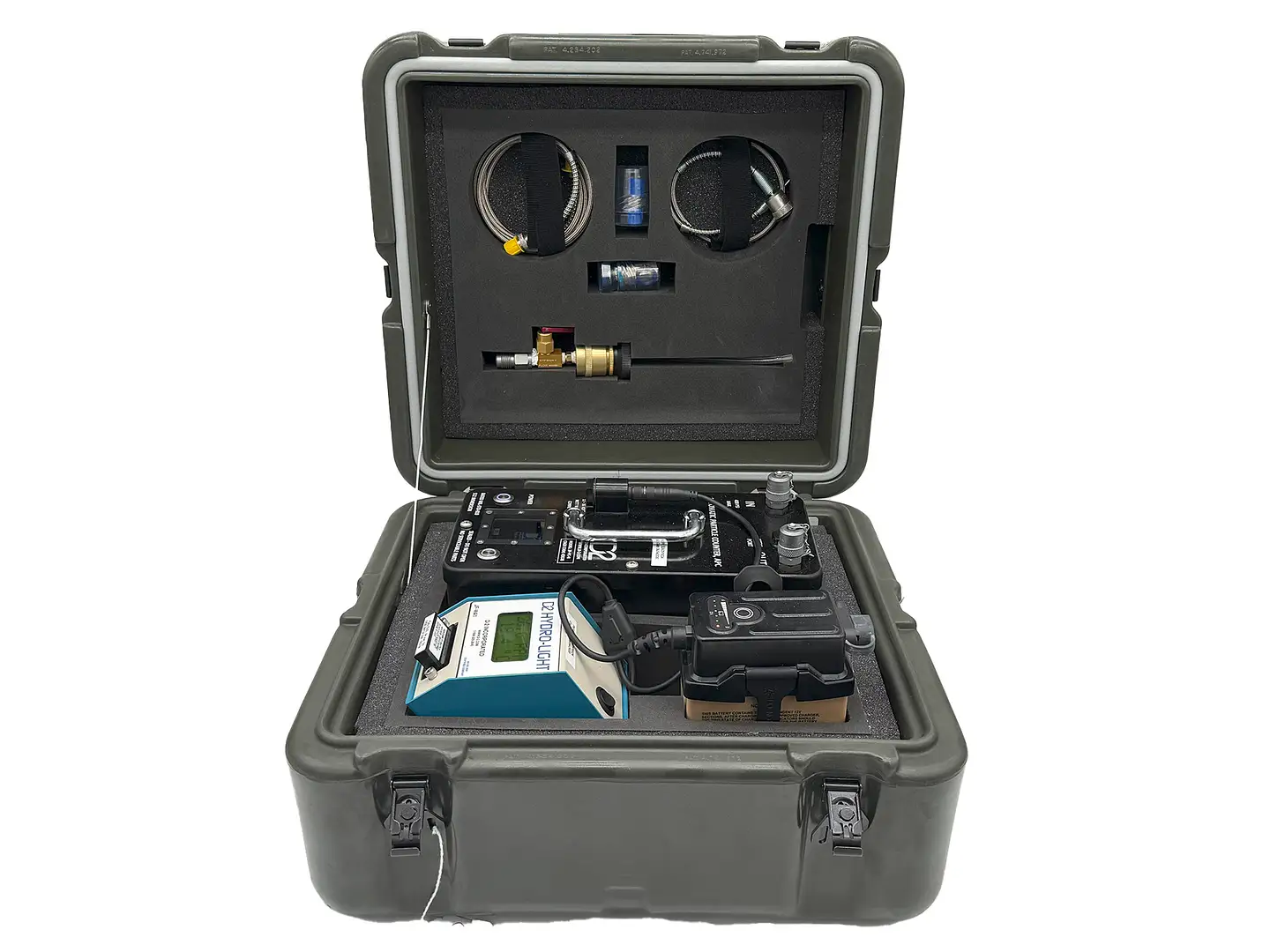

The mobile PEAK Kit comes in two versions: U.S. Army Peak Kit and USMC Peak Kit. The Marine Corps has the larger single case that includes an additional test method the CCCFP Flash Point.

US Army Peak Kit NSN Number: 4910-01-725-8893

USMC Peak Kit NSN Number: 4910-01-725-5931

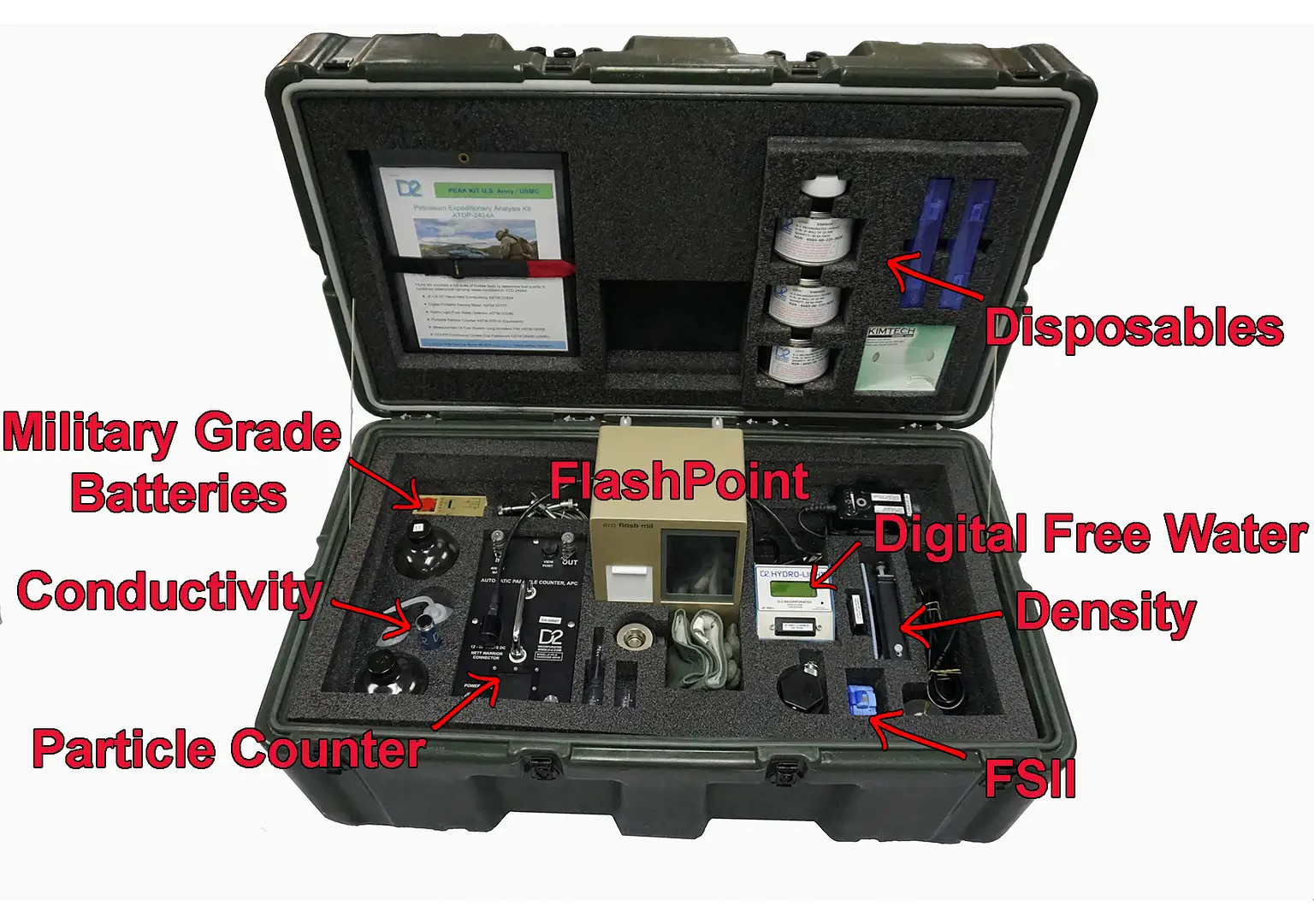

The Kit is able to run the following test methods inside the case as pictured above.

• JF-1A-ST Hand Held Conductivity ASTM D2624
• Digital Portable Density Meter ASTM D7777
• Hydro-Light Free Water Detector ASTM D3240
• Portable Particle Counter ASTM D7619 (Equivalent)
• Measurement Of Fuel System Icing Inhibitors FSII ASTM D5006
• CCCFP Continuous Closed Cup Flashpoint ASTM D6450 (USMC)

Dimensions

The PEAK Kit Case Dimensions:

Peak Kit USMC: 1 Case Weight: 100lbs                                        Dimensions: 37.3in x 21.0in x 17.2in

Peak Kit U.S. Army: 2 Cases,

Case 1 Weight: 33.6lbs                                                                     Dimensions: 17.5in x 16.1in x 12in

Case 2 Weight: 26lbs                                                                        Dimensions: 17.5in x 16.1in x 12in

Mobile Battery Pack:

24 VDC Battery Pack   10 AMPHr

NSN: 6140-01-677-2619     BB-2590/U Battery 298 Wh

Weight: 3.25lbs                                                                                        Dimensions: 4.5in x 2.7in x 5in

Accessories Included:

• JF-WA1-TP-75: Test Pads for the JF-WA1-N Hydro-Light: 483-230R0, JF-WA1-TP-75 Brochure
• ¼”NPT to ¼”NPT fitting NSN: 4730-01-232-9608
• Quick Disconnect Coupler NSN: 4730-01-671-9405
• Document Envelope NSN: 7510-01-647-7926
• Laboratory Wipes (286 wipes) NSN: 6640-01-534-0792
• High-Density Thread Sealant Tape, PTFE, 1/2″ X 520″ NSN: 8030-00-889-3535
• Sample Tube 180 mm NSN: 6640-01-580-6765
