Effortless and Accurate Rheology Measurements for QC and R&D Applications

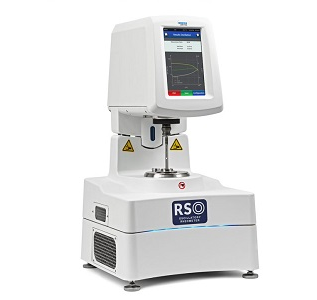

RSO Oscillatory Rheometer is designed for rapid, accurate rheological testing with a user-friendly interface that meets the needs of both Quality Control (QC) and Research & Development (R&D) environments. Using oscillatory measurements through the use of a low friction air bearing allows for very precise viscoelastic measurements.  Its flexibility allows for both cone/plate and concentric cylinder geometries in a single instrument, making it an ideal choice for a wide range of material testing applications.

Features

• Controlled Shear Stress/Shear Rate Operation:
  Precision air bearing and oscillatory measurements allow the study of static yield, flow curves, and visco-elastic behavior with precise control over shear stress and shear rate.
• User-Friendly Touch Screen:
  Stand-alone operation is simplified with an intuitive touch screen and graphical display, making it easy to navigate and manage tests.
• Quick Connect Coupling System:
  Effortlessly attach spindles with the quick connect coupling system, reducing setup time.
• Instrument Flexibility:
  Versatile design allows for both cone/plate and concentric cylinder configurations in a single instrument, providing adaptability for various testing needs.
• Small Sample Size:
  Test with very small sample volumes, enabling rapid setup and easy cleanup, ideal for labs with limited sample availability.
• Spindle Barcode Recognition:
  Automatic spindle recognition through barcode scanning streamlines the testing process and ensures accurate data entry.
• Standalone Simplicity:
  Perfect for QC users, the instrument offers straightforward, standalone operation without the need for a PC.
• Automatic Gap Setting:
  Quickly and easily set the gap between the spindle and plate with the automatic gap setting feature, enhancing accuracy and reducing setup time
• Rapid Temperature Control:
  Achieve quick profiling of viscosity versus temperature with the Peltier option, offering rapid and precise temperature control.
• Optional Rheo3000 Software:
  Enhance your testing capabilities with optional Rheo3000 software, allowing for PC control, data acquisition, and analysis of multiple test files.

What’s Included

• RSO Rheometer with Peltier Temperature Control:
  The instrument comes equipped with advanced temperature control for precise thermal management during tests.
• Convenience Package:
  Includes a cleaning cloth and screen protector to keep the instrument in optimal condition.
• Air Filtration System:
  An air filtration system is included with all orders unless specifically removed, ensuring a clean testing environment.

Specifications

• Minimum Torque: 5 µNm
• Maximum Torque: 100 mNm
• Torque Resolution: 0.02 µNm
• Bearing: Air bearing
• Deformation Resolution: 1.25 µrad
• Minimum Speed: 0.001 rpm
• Maximum Speed: 1500 rpm
• Minimum Frequency: 0.01 Hz / 0.06 rad/s
• Maximum Frequency: 20 Hz / 126 rad/s
• Measurement System: Cylinder/Cone Plate
• Temperature Control: Peltier or bath option
• Minimum Temperature: 0°C
• Maximum Temperature: 180°C
• Dimensions (W x H x D): 360 x 600 x 340 mm
• Weight: 31 kg
