Description

Comprehensive Viscosity Profiling and Flow Behavior Analysis

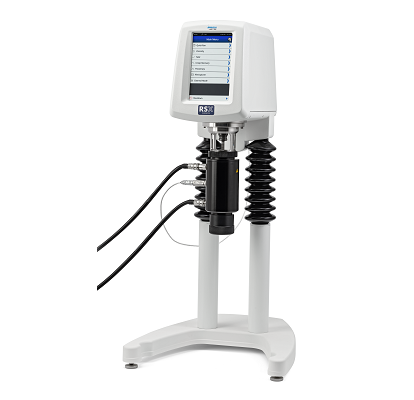

AMETEK Brookfield RSX Coaxial Cylinder Rheometer is a state-of-the-art instrument designed for superior viscosity profiling, thixotropic response, yield stress determination, and creep analysis. With its advanced features, the RSX-CC Rheometer is perfect for quality control laboratories requiring high throughput and precise, repeatable measurements across a wide range of applications.

Features

• Comprehensive Flow Behavior Analysis:
  Utilize controlled shear stress/shear rate operation to thoroughly analyze flow behavior, including viscosity profiling, thixotropic response, creep analysis, and yield stress determination.
• Large User-Friendly Touch Screen:
  Intuitive touch screen interface simplifies operation, making it easy to navigate and control test parameters.
• Quick Connect Coupling System:
  Effortlessly attach and detach spindles with the quick connect coupling system, reducing setup time.
• Auto Spindle Recognition:
  The spindle barcode feature automatically recognizes the spindle, ensuring accurate data entry and streamlined operation.
• Small Sample Size:
  Conduct tests with very small sample volumes, enabling rapid setup and cleanup, ideal for environments with limited sample availability.
• Rugged Design:
  Built for durability, this instrument is designed to withstand the rigors of the production floor while maintaining precision and reliability.
• Increased Torque Motor:
  Equipped with an enhanced 200 Nm torque motor, this instrument can test even the toughest samples, ensuring comprehensive analysis across a wide range of materials.
• Motorized Stand:
  Easily adjust the height with the motorized stand, providing convenience and precision during testing.
• Advanced Temperature Control:
  Achieve precise temperature regulation from -20°C to 180°C with options for direct immersion in a bath or external circulation using the FTKY3 water jacket.
• High-Precision Cylindric Geometries:
  The use of cylindric geometries ensures the most accurate measurement results, particularly in low-viscosity ranges.

What’s Included

• Instrument:
  The core device for conducting precise and reliable measurements.
• Power Cord:
  Ensures your instrument is ready to operate right out of the box.
• Concentric Cylinder Adapter:
  Allows for accurate testing with cylindric geometries.
• Accessory Kit:
  A comprehensive set of tools and accessories to support your testing needs.
• USB Cord:
  Facilitates easy connection to a PC for data transfer and control.
• Screen Protector:
  Protects the touch screen from scratches and damage, ensuring long-lasting use.
• Bubble Level:
  Ensures your instrument is perfectly level for accurate measurements.

Specifications

• CCT-DG
  • Viscosity Range: 0.0006 – 8k Pa·s
  • Max. Shear Stress: 0.043 – 4344 Pa
  • Sample Volume: 15.7 mL
• CCT-40
  • Viscosity Range: 0.004 – 55k Pa·s
  • Max. Shear Stress: 0.0215 – 2148 Pa
  • Sample Volume: 68.5 mL
• CCT-25
  • Viscosity Range: 0.027 – 354k Pa·s
  • Max. Shear Stress: 0.013 – 1289 Pa
  • Sample Volume: 16.8 mL
• CCT-14
  • Viscosity Range: 0.151 – 2.01M Pa·s
  • Max. Shear Stress: 0.013 – 1297 Pa
  • Sample Volume: 3.4 mL
• CCT-8
  • Viscosity Range: 0.813 – 10.83M Pa·s
  • Max. Shear Stress: 0.013 – 1287 Pa
  • Sample Volume: 1.0 mL
