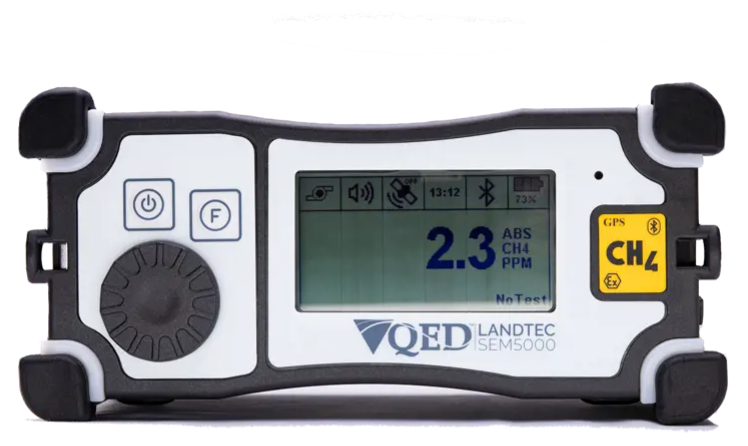

SEM5000 : Portable Methane Detector for Landfill Surface Emissions Monitoring

Laser-Focused Methane Monitoring – Safe, Simple, Compliant, Quick Lead time, & Affordable  LASER Precision, Full Compliance:

  • 1 ppm to 100% volume detection range
  • Zero cross-sensitivity to other gases
  • Method 21 compliant with daily field calibration
  • ATEX Zone 1 certified for hazardous environments
Integrated Intelligence:
  • Equipped with GPS, Bluetooth, and data logging, the SEM5000 makes leak documentation and reporting faster and more accurate
  • Built-in alarms (audio, LED) help alert users to elevated concentrations during walkover surveys.
Built for the Field:
  • Rugged IP65/NEMA4 enclosure
  • Swappable Li-Ion battery with 10 hour life at 68°F (20C); 8 hours at extreme temperatures with backlight activated
  • Lightweight 2.9 lb (1.3 kg), ergonomic design
  • Quick warm-up and fast response time
Applications:

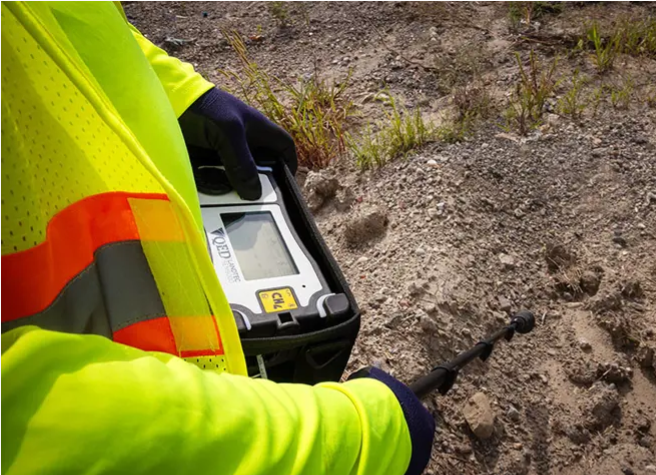

  • Landfill surface emissions monitoring (NSPS / EPA Method 21)
  • Wellhead and surface penetration leak detection
  • Environmental compliance surveys
  • Methane hot spot detection
Key Features
  • Specific to methane
  • Wide measurement range
  • Rapid response (<2 seconds)
  • Included SEMSoft Software
  • Internal GPS and Bluetooth
  • Meets EPA Method 21 Requirements
  • ATEX certified (Zone 1)
  • Lightweight and ergonomic design
  • Swappable* battery (*Non-hazardous environment only)
  • Two year factory calibration interval
  • Three Year Warranty
Benefits
  • No cross-gas or false readings
  • No additional devices required
  • Accurate reporting which meets and maintains compliance requirements
  • Highly accurate with no flame and no external hydrogen required for operation
  • Lightweight design weighs half as much as competitive technologies
  • Easy to use, with hands-free operation
  • Multiple reporting functions
  • No additional devices like tablets or gas bottles required for operation

Contact us for details

The SEM5000 is a powerful, field-proven portable methane detector designed for surface emissions monitoring. Leveraging LASER-based Tunable Diode Absorption Spectroscopy (TDLAS), the SEM5000 provides fast and precise readings with no cross-gas contamination. Included SEMSoft software allows users to easily manage data and create required compliance reports.
