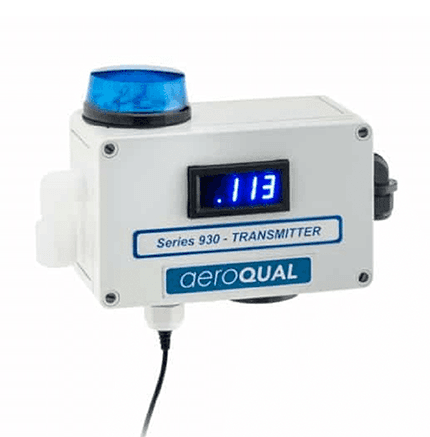

The Series 930 Fixed Indoor Air Quality Monitor is a flexible monitor compatible with a range of gas sensors as well as a temperature and humidity sensor, if required. The sensor is housed in a robust IP41/NEMA 2 rated water resistant enclosure protecting it from water damage. There is also the option to include an integrated display for reporting real-time gas concentrations and/or an optional strobe and siren kit which can be configured to activate to a user defined set point.

The Series 930 outputs are designed to measure and control gas concentrations and communicate to a variety of hardware systems. The monitor can operate in three ways:

1. As a relay controller via the integrated relays and user configurable set points to control an external device such as an ozone generator or initiate an alarm.
2. As a gas transmitter via the 4-20 mA output which allows connection to a PLC or current sensing device to provide gas concentration information for applications such as health and safety monitoring.
3. As a monitoring network via the RS485 digital output to enable gas monitoring at several indoor locations with information being logged to a central point.

The Series 930 monitor is easy to install due to the lightweight enclosure and provided wall mounting kit. It requires a 24V power supply which is user supplied to allow flexibility in locations it can be installed. The sensor heads are simple to replace and can be sent back to Aeroqual for recalibration. The sensor heads available with the S930 Fixed Gas Monitor can be found under the sensors tab.

There is also free to download configuration and networking software available under the downloads tab. The configuration software allows for quick and easy configuration of the alarm and control set points. The networking software can be used to log data from a network of monitors to a single PC.

BENEFITS

• Flexible use due to wide range of outputs and configurations
• Network capability to monitor at several sites simultaneously
• Easy to configure alarm and control outputs via PC software
• Active sampling for higher accuracy
• Sensor enclosed in tamper proof, water-resistant enclosure
• Changing sensor heads is quick and easy, no additional configuration required
• To recalibrate simply send the sensor back to the factory
• Optional display to report real-time gas concentrations
• Configurable strobe and siren for alerting gas exceedences
• Easy to mount

APPLICATIONS

• Health and safety monitoring
• Industrial process control
• Indoor air quality monitoring
• Real-time network monitoring
