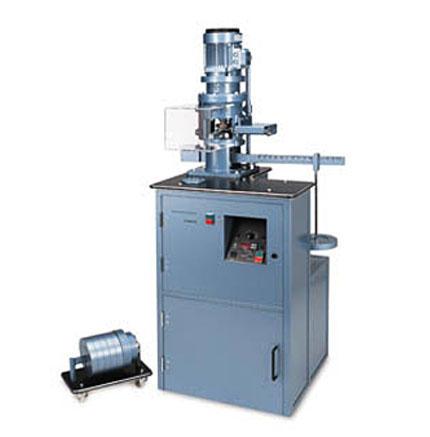

Seta-Shell Four Ball Lubricant Tester

The Seta-Shell Four Ball Lubricant Tester (manual load) determines friction and wear properties of extreme pressure oils and greases. Used in tribology research laboratories and in the routine quality control of finished lubrication products.

Ask us about this item

The Seta-Shell Four Ball Lubricant Tester (manual load) determines friction and wear properties of extreme pressure oils and greases. Used in tribology research laboratories and in the routine quality control of finished lubrication products.

The digital speed controller has four programmable presets, three are pre-programmed to the most commonly used speeds; 1200, 1475 and 1760 rpm. Duration of the test can be controlled by the digital timer, which has four ranges and spans 0.1 seconds to 9999 hours. If the balls weld during a test, the power to the drive motor is automatically turned off, via a torque sensing mechanism.

Features
  • Applied load range 0 to 800kgF
  • Drive speed from 1200 to 1760rpm
  • Digital speed control with three presets
  • Timer range 0.1s to 9999hr
  • Automatic shut off on seizure
  • Safety and splash guard

METHODS

ASTM D2266
ASTM D2596
ASTM D2783
ASTM D4172
IP 239
BS EN ISO 20623
BS ISO 26422
CEC L-45-T-93
DIN 51 350
