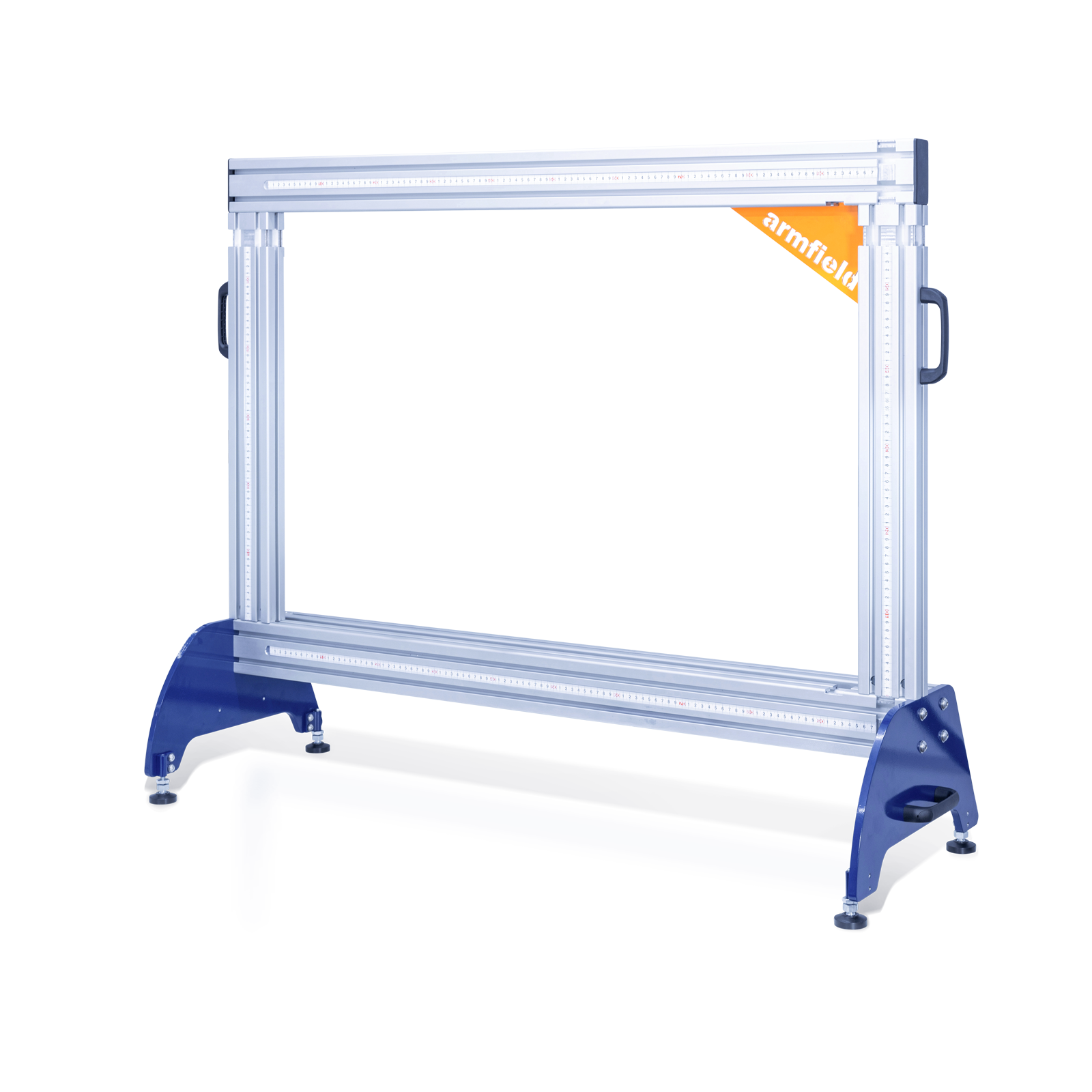

A lightweight aluminium bench mounted frame that enables quick and easy attachment of the interchangeable experiment modules from the Armfield SV Structures range.

The frame is supplied with a fixing system that has been designed to be quick and easy to use. It allows students to change, position and secure each experiment.

Adjustable feet support the frame to allow students to level the apparatus before use.

FEATURES & BENEFITS

• Strong, lightweight, bench mounted frame
• Supporting frame for all of the Armfield SV structures range of experiments
• Provides multiple mounting positions for experiments

TECHNICAL SPECIFICATIONS

Internal Working Area:
Height: 600mm
Width: 950mm

Assembled Dimensions:
Height: 920mm
Width: 1110mm (Frame only) 1176mm with carry handles
Frame dimensions: 80mm x 40mm
Frame Construction: Aluminium
