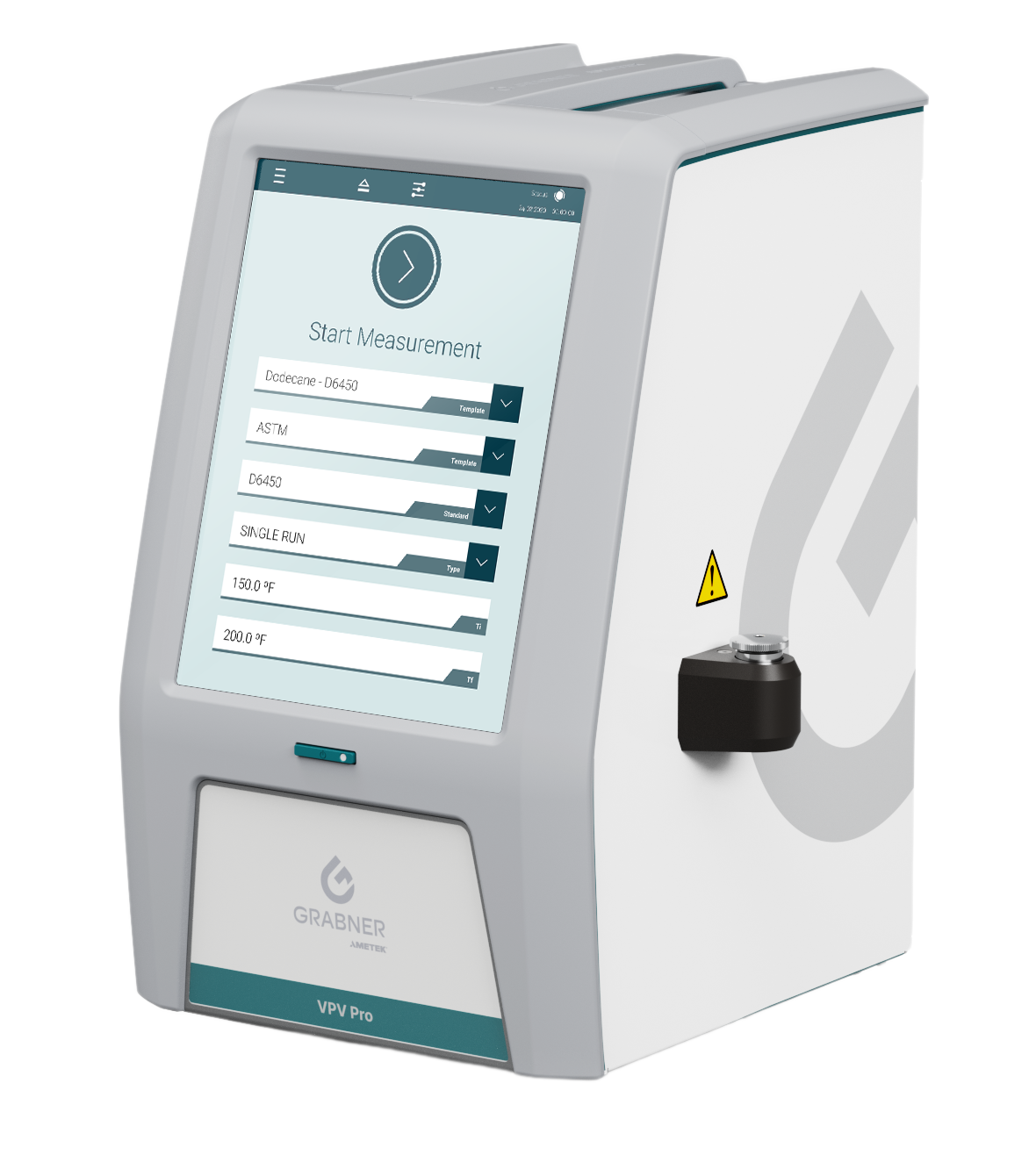

VPV Pro – Confidence Under Pressure

The Grabner VPV Pro is a highly versatile, portable vapor pressure analyzer delivering best-in-class precision across an exceptionally wide pressure range of 0–2000 kPa (290 psi). Engineered for demanding laboratory and field environments, it is the first vapor pressure tester certified for robustness and durability, setting a new benchmark for reliability.

Designed for maximum performance, the VPV Pro accurately measures gasoline, jet fuel, crude oil, LPG, solvents, and more. Proven long-term testing demonstrates outstanding repeatability across the full measuring range. Proprietary 2D-Correction™ technology with exact piston positioning ensures consistent accuracy, while the Sampling Pro™ valve design minimizes cross-contamination—even when switching between diverse sample types.

Certified for operation in extreme climates and resistant to shock and vibration, the Grabner VPV Pro is ideally suited for mobile laboratories, military use, and harsh industrial environments. Every analyzer comes fully configured for all major vapor pressure methods and includes an integrated shaker for crude oil testing.

For low-volatility applications, the VPV Pro low-pressure configuration delivers exceptional sensitivity and precision, supporting direct and extrapolated absolute vapor pressure measurements comparable to ASTM D2879—without sample evacuation. Grabner VPV Pro combines accuracy, durability, and trusted results in one complete vapor pressure solution.

Features

• Unmatched precision for the VP measurement of gasoline, aviation fuels, crude oil, LPG, hydrocarbon solvents and chemical compounds
• Suitable Pressure Range for LPG Testing
• Unique 2-D Correction™ to ensure highest measuring precision over the full testing range
• Smallest sample size: 1 ml w/o rinsing
• Fast measurements: Results in 5 minutes
• Automatic sample introduction and cell cleaning through piston-based design
• No vacuum pump or sample preparation necessary
• Sampling Pro™ valve design, best in class for minimizing sample cross contamination
• Thermoelectric temperature control – no external cooling necessary
• Maintenance free through central lubrication system; rapid oil refill w/o disassembling
• Cleanable, reusable filter assembly
• Modern, app-like user interface with big buttons and a large, glove-compatible touchscreen
• Customizable measurement templates
• Fast Mode™ Method: Runs D5191 and D5188 in combination
• Full calibration history and calibration backup function
• 3rd Party Certified for use in cold, dry and damp heat environment
• Shockproof and vibration-resistant portable design

Specifications

Standards

ASTM D323
Standard Test Method for Vapor Pressure of Petroleum Products (Reid Method)

ASTM D1267
Standard Test Method for Gage Vapor Pressure of Liquefied Petroleum (LP) Gases (LP-Gas Method)

ASTM D2879
Standard Test Method for Vapor Pressure-Temperature Relationship and Initial Decomposition Temperature of Liquids by Isoteniscope

ASTM D3700
Standard Practice for Obtaining LPG Samples Using a Floating Piston Cylinder

ASTM D4953
Standard Test Method for Vapor Pressure of Gasoline and Gasoline-Oxygenate Blends (Dry Method)

ASTM D5188
Standard Test Method for Vapor-Liquid Ratio Temperature Determination of Fuels (Evacuated Chamber Method)

ASTM D5191
Standard Test Method for Vapor Pressure of Petroleum Products (Mini Method)

ASTM D5482
Standard Test Method for Vapor Pressure of Petroleum Products (Mini Method—Atmospheric)

ASTM D6377 Standard Test Method for Determination of Vapor Pressure of Crude Oil: VPCRx (Expansion Method)

ASTM D6378
Standard Test Method for Determination of Vapor Pressure (VPx) of Petroleum Products, Hydrocarbons, and Hydrocarbon-Oxygenate Mixtures (Triple Expansion Method)

ASTM D6897
Standard Test Method for Vapor Pressure of Liquefied Petroleum Gases (LPG) (Expansion Method)

EN13016-1+2
PART 1: Liquid petroleum products – Vapour pressure – Part 1: Determination of air saturated vapour pressure (ASVP) and calculated dry vapour pressure equivalent (DVPE)
PART 2: Liquid petroleum products – Vapour pressure – Part 2: Determination of absolute pressure(AVP) between 40 °C and 100 °C

JIS K2258-2
Crude petroleum and petroleum products — Determination of vapour pressure — Part 2: Triple expansion method

SHT 0769
Standard test method for determination of vapor pressure of petroleum products, hydrocarbons and hydrocarbon-oxygenate mixtures (Triple expansion method)

SHT 0794
Standard test method for Vapor Pressure of Petroleum Products (Mini Method)

SNT 2932
Determination of Vapor Pressure of Chemicals – Triple Expansion Method

GOST 52340
Crude Oil Determination of vapour pressure by expansion method

IP 394
Liquid petroleum products – Vapour Pressure – Part 1: Determination of air saturated vapour pressure (ASVP)

IP 409
Liquid petroleum products – Vapour Pressure – Part 2: Determination of absolute vapour pressure (AVP) between 40°C and 100°C

IP 481
Determination of air saturated vapour pressure (ASVP) of crude oil
