Description

• Advanced leaf area meter
• Measures area, perimeter, length, width, object count and more
• Measures diseased, healthy and pest-damaged leaf area
• Point and click colour selection
• Conveyor option for high speed leaf processing

Latest enhancements

• Lower prices for conveyor belt systems
• LED lighting with adjustable brightness
• Improved seed counting capability
• Enhanced Area of Interest drawing tool

The recently upgraded WinDIAS 3 Leaf Image Analysis System provides fast, accurate measurement of leaf area and leaf features – making it ideal for plant pathology and phenotyping applications. WinDIAS’s analysis features are well suited to applications where precise colour discrimination is critical.

Introduction to WinDIAS

Delta-T Devices was one of the first companies to develop leaf imaging technology for disease area estimation. The WinDIAS 3 leaf area measurement system builds on that expertise, making use of high-resolution camera and scanner technology to provide researchers with an analysis tool that is powerful and yet easy to use.

The WinDIAS system is available in three versions – Entry Level System (with A4 scanner), Standard System (with video camera), and Rapid System (which adds a conveyor belt unit, and can process up to 800 leaves an hour).

WinDIAS features

Rapid thresholding

Three thresholds can be set, each based on a different user-defined range of colours. The primary threshold is used for the main zones of interest in the image, e.g. healthy areas. The secondary and tertiary thresholds are used for other zones, e.g. diseased or variegated areas. Thresholds are set by a simple point and click with the mouse in a region of interest. The areas selected are immediately visible as overlays on the image.

Measurement and editing

WinDIAS analyses the thresholded regions to measure area, perimeter, length, width, circularity, elongation and shape factor. Calibration is carried out against a ruler. Images can be edited on-screen, enabling the user to retouch boundaries, separate objects that overlap, remove undesirable “noise” and holes, add or erase lines or rectangles, and fill bounded areas in any colour.

Object count

Seeds, needles, or other small objects can be quickly counted by WinDIAS (even when touching). Colour thresholding enables easy discrimination of different types of object, or disease spots. Dust and debris can be excluded by defining a minimum object area.

Exchange of data and images

WinDIAS imports images in bmp, jpg and tif formats, and results can be saved as txt files for easy import into Excel. For reporting and further analysis, all results and images from WinDIAS are easily exchanged with other Windows applications.

Fast batch processing of image files

WinDIAS can automatically analyse large numbers of leaf images by operating as a virtual conveyor. This feature saves a great deal of time when processing images acquired in the field or when sent in for processing from a remote research lab. Images in bmp, jpg, or tif format are all suitable for processing.

Batch processing mode is simple to use – just select the folder holding the target images. WinDIAS will then automatically load each image in turn, measure it, and save the results back into the same folder.

WinDIAS system options

Researchers can specify a WinDIAS leaf area meter system that suits their particular requirements.

Rapid System

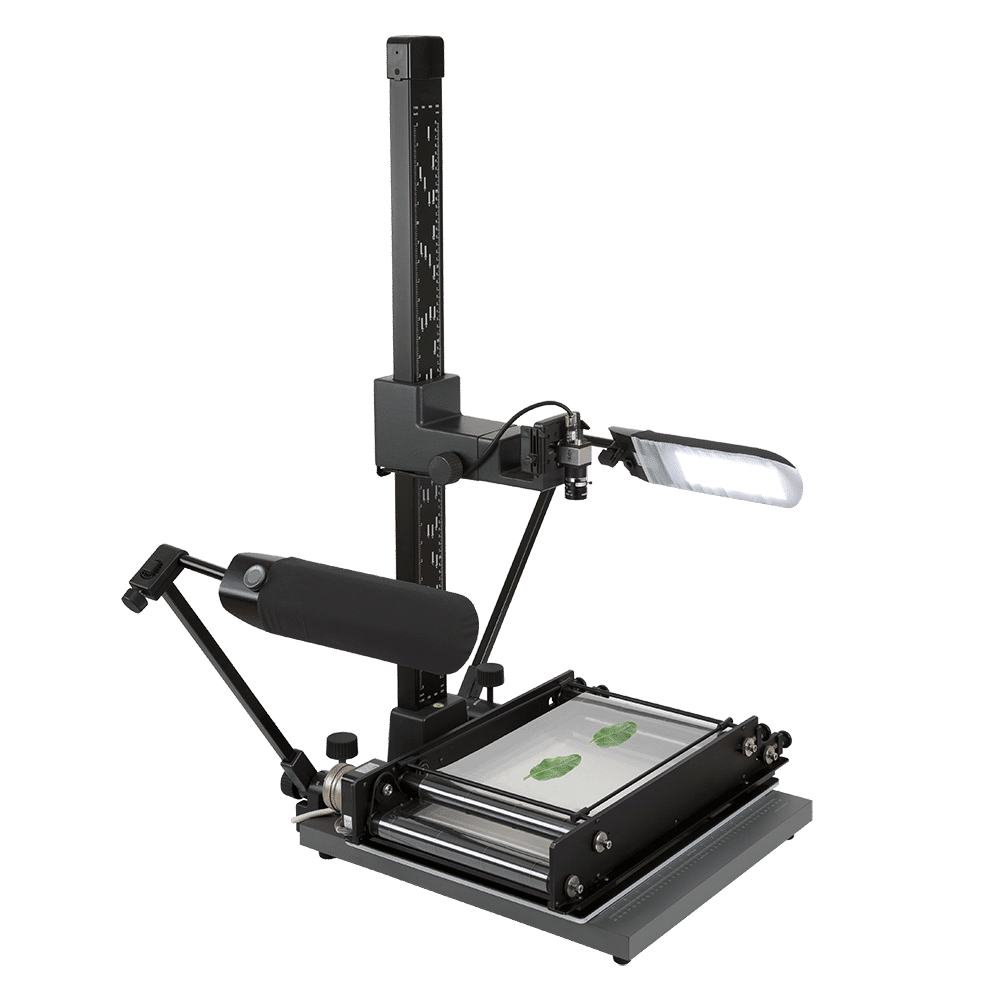

A powerful and complete leaf area system that can handle very long leaves and measure up to 800 leaves per hour. Includes video camera, camera stand, overhead lighting, WinDIAS Software and Conveyor Belt Unit.

Standard System

Identical to Rapid System but without Conveyor Belt option. Typically processes 150 images per hour.

Entry Level System

Comprises WinDIAS Software and A4 flatbed scanner. Typically processes 50 images per hour (at high resolution).

110V Systems

The Entry Level and Standard systems are both dual voltage 110V/230V and can operate at 50Hz/60Hz. However, the Rapid system is limited to 230V 50HZ or 220V 60Hz. This is because we cannot supply 110V versions of the Conveyor Belt Unit.

Applications

Agronomy, plant physiology and phenotyping:
WinDIAS provides a flexible resource with many laboratory applications – from simple leaf area measurement to the analysis of complex distributions of colour. The addition of the Conveyor Belt Unit accessory opens up further applications – see above.

Forestry
WinDIAS can be used with both broadleaf and coniferous species. The surface area of pine needles can be estimated by multiplying the projected area by a conversion factor.

Plant pathology and crop protection
WinDIAS is optimised for the rapid analysis of area by colour difference, creating many applications in plant pathology and plant protection. Examples include: necrosis caused by fungi and bacteria, leaf tip burn and leaf spotting, nutrient deficiency symptoms, viral infection and leaf senescence.

Other applications
WinDIAS is very versatile. For example, it can assist with the analysis of aerial photos to estimate ground cover, and can be used with a suitable zoom lens or a USB microscope to measure and count very small objects.
