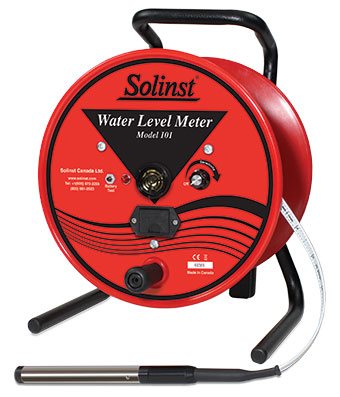

With a stand-alone design, convenient carrying handle, and sturdy probe holder, the standard reels are ergonomically designed for ease of use.
With a stand-alone design, convenient carrying handle, and sturdy probe holder, the standard reels are ergonomically designed for ease of use. They are robust and smooth running. The battery is housed in a convenient drawer in the front of the reel, allowing quick replacement. The reels are equipped with an on/off sensitivity switch, light, buzzer, battery test button, brake and a tape guide stored on the frame.
Water Level Meter Reels | |
---|---|
Operating temperature of reel: | -20°C to +50°C |
Submerged operating temperature (tape/probe): | -20°C to +80°C |
Wetted materials (tape/probe): | P7: PVDF, Santoprene, ®Delrin, ®Viton, 316 stainless steel |
P2: MDPE, neoprene, Delrin, 316 stainless steel | |
Probe pressure rating: | P7: Fully submersible to depth of all tape lengths |
Reel IP Rating: | IP64 (dust and splash proof) |
Tape lengths: | P7: 100 to 5000 ft, 30 – 1500 m |
P2: 100 to 1000 ft, 30 – 300 m |
Small Reel | * 100 ft. | 30 m |
* 200 ft. | 60 m | |
* 300 ft. | 100 m | |
Medium Reel | * 500 ft. | 150 m |
* 750 ft. | 250 m | |
* 1000 ft. | 300 m | |
Large Reel | 1250 ft. | 400 m |
X-Large Reel | 1650 ft. | 500 m |
2000 ft. | 600 m |
* Polyethylene tapes are only available in these lengths
